  • 4ti-0750/TA | 96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically 96/8
  • 4ti-0750/TA | 96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically 96/8 | Breaking Detail

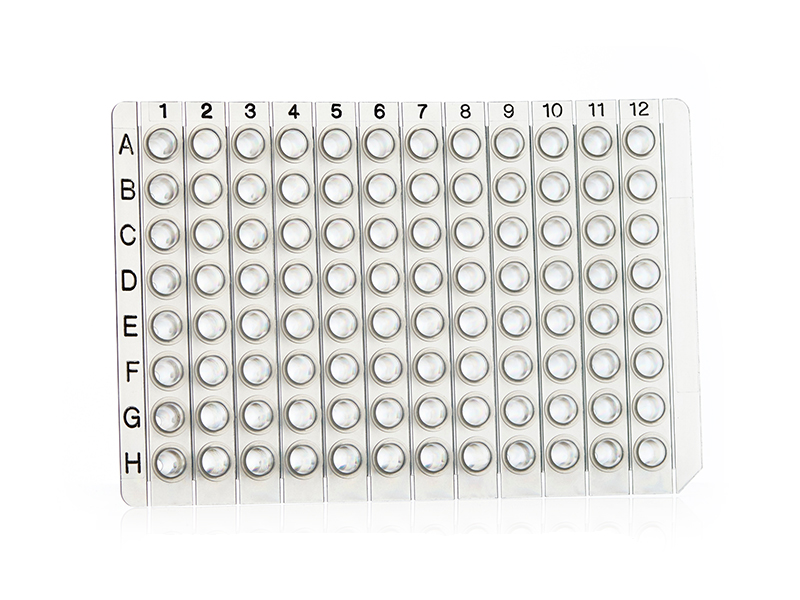

96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically

96 well non-skirted PCR plate, vertically or horizontally perforated, standard profile, 0.2ml wells, polypropylene, cut corner H12; working volume: <200µl, total well capacity: 300µl; tears easily into strips or part plates; universal cycler and sequencer compatibility

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

96 Well Non-Skirted PCR Plates Breakable Horizontally or Vertically allow for the most flexible, efficient and cost-effective use of a PCR plate. Avoid the costly use of half-empty plates or the fiddly separation of plates with scissors. Scissors are widely used by everyone in the lab for cutting diverse materials, so are typically highly contaminated with substances including bacteria and DNA. Cutting plates with scissors should be avoided as it can perforate wells and damage sealing rings, risking evaporation and sample contamination.

Based on our 96 Well Non-Skirted PCR Plate, 96 Well Non-Skirted PCR Plates Breakable Horizontally or Vertically can be quickly and easily divided along the perforations between the rows. The 96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically maintains all benefits of the 96 Well Non-Skirted PCR Plate, but adds extra flexibility. The correct number of wells can be separated off for each experiment, saving time and costs. The plate is available perforated either vertically, tearing into 8-well strips (96/8), or horizontally, tearing into 12-well strips (96/12).

All of our PCR plates are molded from virgin polypropylene under ISO-certified cleanroom conditions in our UK-based production facility, and as such comply with the same stringent requirements as our FrameStar® range. This plate is perforated under the same cleanroom conditions post-manufacture so it can be separated into part plates or individual strips of tubes.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Frame
    • Non-skirted plates: universal cycler and sequencer compatibility
    • Alphanumeric grid reference on all strips: no sample identification errors

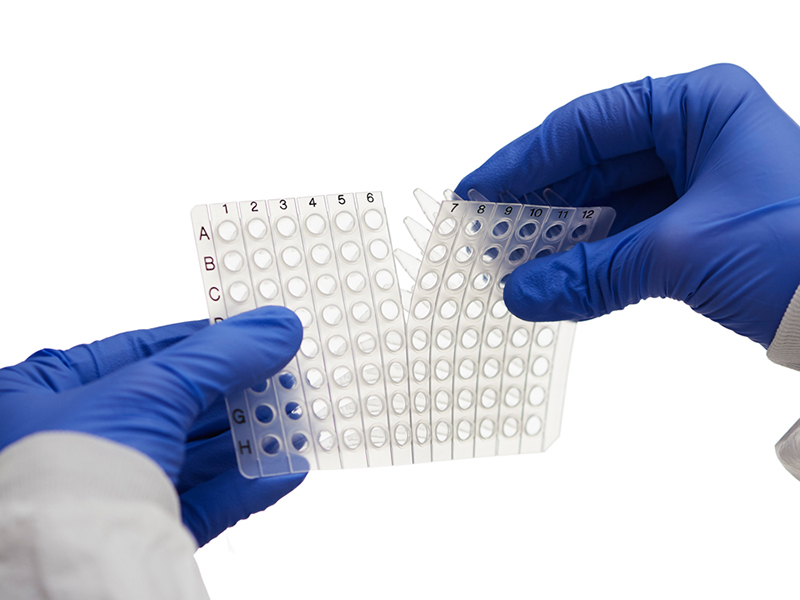

    • Plate is perforated to enable accurate tearing into 8-well or 12-well strips: no tricky cutting of plates with scissors, risking perforated wells, damaging sealing rings, and contamination
  • Use
    • Allows for the most flexible and efficient use of a PCR plate: no need to run half-empty plates, so reducing costs
    • Snaps into strips for lower throughput: cost effective
  • Options
    • The 96/8 8-well version is easily divided into 24 and 48-well plates to fit a 24 or 48-well thermal cycler block
    • The 96/12 12-well version perfectly suited for gradient cyclers
    • White version available for superior qPCR performance
    • Sealable with our PCR cap strips, adhesive seals and heat seals

Specifications

Parameter 96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically
Plate length 120.00 ± 0.25mm
Plate width 80.00 ± 0.25mm
Plate height 20.20 ± 0.10mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 8.75 ± 0.25mm
Distance to center of A1 from left edge 10.75 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Figure 1
Figure 1

Figure 1







  • Figure 1 (click on image to expand) illustrates how our divisible plates allow you to make full use of your gradient PCR instruments
  • The temperature gradient is typically created along the horizontal direction of the block, thus 12-well strips or sections are ideal

Compatibility

  • ABI®/Life Technologies/Thermo Fisher Scientific
    • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
    • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
  • Agilent/Stratagene
    • Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
    • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
  • Analytik Jena/Biometra
    • Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
    • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
    • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
  • Bioer Technologies
    • Thermal Cyclers (strips only): GeneQ
    • Thermal Cyclers (96 well block): Gene Touch 96
  • Bio-Rad
    • Thermal Cyclers (strips only): Genecycler
    • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
  • Bio-Rad MJ Research
    • Thermal Cyclers (strips only): Mini Gradient
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™
  • Corbett Research
    • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
  • Eppendorf
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • Peqlab/VWR
    • Thermal Cyclers (strips only) : peqSTAR XS | peqSTAR 2X
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • Sensoquest
    • Thermal Cyclers (96 well block): Labcycler
  • Takara
    • Thermal Cyclers (96 well block): Dice touch | Gradient
  • Techne
    • Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
    • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically
96 well non-skirted PCR plate, perforated, standard profile, 0.2ml wells, polypropylene, cut corner H12; working volume: <200µl, total well capacity: 300µl; tears easily into strips or part plates; universal cycler and sequencer compatibility
4ti-0750/TA
BUY ONLINE*
clear, vertically perforated, tears easily into strips of 8 tubes or part plates; 50 plates
4ti-0750/W/TA white, vertically perforated, tears easily into strips of 8 tubes or part plates; 50 plates
4ti-0750/TA/12 clear, horizontally perforated, tears easily into strips of 12 tubes or part plates; 50 plates

*Online availability to US only

Resources

Divisible PCR and qPCR Plates Flyer

Divisible PCR and qPCR Plates Flyer

Brochures & Sell Sheets
PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically Technical Drawing

96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-1000/P | FrameStar Breakable Vertically PCR Plate | Breaking Detail

FrameStar® Breakable Vertically PCR Plate

On

96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working vol

4ti-1300/X | FrameStar Breakable Horizontally and Vertically PCR Plate | Breaking Detail

FrameStar® Breakable Horizontally and Vertically PCR Plate

On

96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; standard profile, 0.2ml polypropylene wells,

Non-Skirted PCR Plate Segments | Group

Non-Skirted PCR Plate Segment

Off

Standard profile, 0.2ml wells, polypropylene, cut corner H12, working volume: <200µl, total well capacity: 300µl; 96 Well Non-Skirted PCR Plate divided into 8 well, 16 well, 24 well, 32 well or

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0531 | Pierce Heat Seal | Piercing Detail

Pierce Heat Seal

BUY ONLINE
On

Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

4ti-0536 | Foil Heat Seal | Piercing Detail

Foil Heat Seal

BUY ONLINE
On

Aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR

Horizontal Scroll
On

Place a Request

Request a Quote, Free Samples, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.

Home
Facebook twitter youtube linkedin
Copyright © 2023 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
