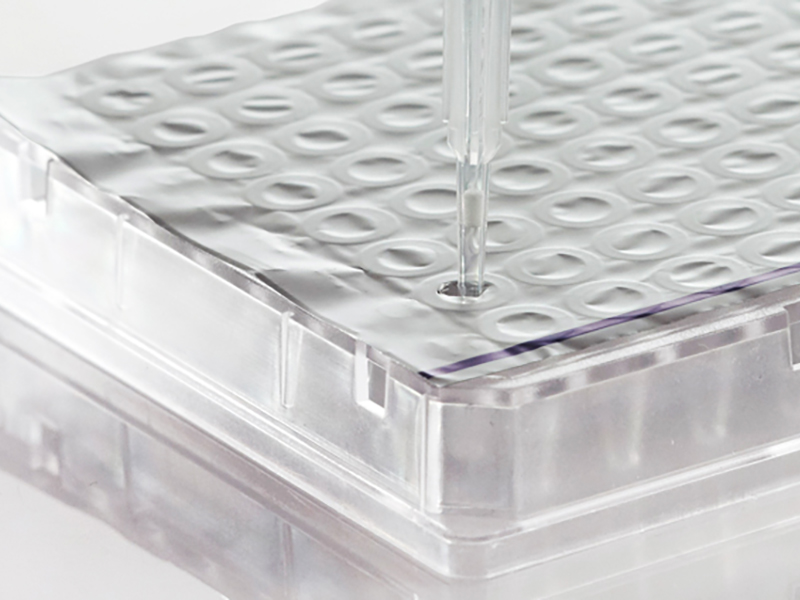

  • 4ti-0531 | Pierce Heat Seal | Piercing Detail

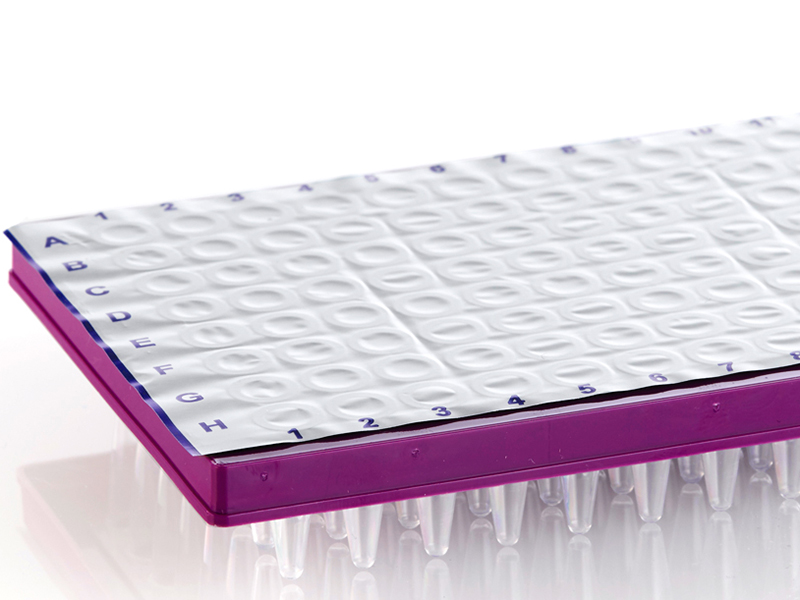

  • 4ti-0531/GR | Pierce Heat Seal with Printed Grid Reference

Pierce Heat Seal

Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

Heat sealing offers a 100% effective method of plate sealing, for complete seal integrity, as well as being quick and cost effective. Pierce Heat Seal is compatible with polypropylene and polystyrene plates. This seal demonstrates good solvent resistance and can be used for low temperature and room temperature compound storage in DMSO and organic solvents.

Pierce Heat Seal can be pierced with a pipette tip manually, or by a liquid handling robot. This seal can be resealed by applying another Pierce Seal straight on top of a previously pierced seal. A blue stripe on the sheet foils clearly indicates the non-sealing surface, for ease of seal orientation and handling. Pierce Heat Seal sheets are also available with a printed grid reference on the non-sealing surface.

This seal is available as sheets, for use with manual and semi-automated sealers, such as our Semi-Automated Sheet Heat Sealer. Also available in multiple roll formats compatible with specified automated heat sealers, such as our Automated Roll Heat Sealer.

Key Features

  • Quality & Properties
    • Pierceable
    • Resealable
    • Seal integrity range: -20°C to 120°C
    • Good solvent resistance
    • Autoclavable (121°C)
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Use
    • Seals polypropylene and polystyrene plates
    • Suitable for long term storage
  • Options
    • Sheet format: 125 x 78mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates, from 12 well to 1536 well
    • Roll format: available in a variety of roll dimensions, to suit your choice of automatic heat sealing equipment
    • Available with printed grid reference (in sheet format, 4ti-0531/GR)
    • Non-sterile as standard; sterilization available upon request
    • Custom printing available on request

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
Pierce Heat Seal
Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping
4ti-0530
BUY ONLINE*
roll (610m x 78mm, approx. 5,000 seals)¹; 1 roll
4ti-0530/122 roll (122m x 78mm, approx. 1,000 seals)¹; 1 roll
4ti-0530/REMP roll (610m x 78mm, approx. 5,000 seals)³; 1 roll
4ti-0530/S sample roll (5m x 78mm)¹; 1 sample roll
4ti-0532 roll (500m x 115mm, approx. 6,200 seals)²; 1 roll
4ti-0532/REMP roll (500m x 115mm, approx. 6,200 seals)⁴; 1 roll
4ti-0532/S sample roll (5m x 115mm)²; 1 sample roll
4ti-0531
BUY ONLINE*
sheets (125 x 78mm); 100 sheets
4ti-0531/GR sheets (125 x 78mm), with printed grid reference; 100 sheets

*Online availability to US only

¹Compatible with our Automated Roll Heat Sealer / Thermo Fisher ALPS 300™ and ALPS 3000™ / KBiosystems Wasp™ / KBioscience FlexiSeal and Cube

²Compatible with Agilent (Velocity 11) PlateLoc®

³Compatible with REMP Portrait Heat Sealer (PHS)

⁴Compatible with REMP Landscape / Stacking Heat Sealers (LHS/SHS)

Resources

Heat Sealing Comparison and Compatibility Table

Heat Sealing Comparison and Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
Pierce Heat Seal Data Sheet Request

Pierce Heat Seal Data Sheet

Data Sheets
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0591 | Thermal Bond Heat Seal | Peeling from 96 Well Plate

Thermal Bond Heat Seal

BUY ONLINE
On

Heavy duty heat sealing foil, peelable; suitable for long term storage, transportation

4ti-05381 | Pierce Heat Seal Strong | Piercing Detail

Pierce Heat Seal Strong

Off

Strong heat sealing foil, peelable from COC plates, pierceable, suitable for PCR, sample shipping, compound storage

4ti-0531/RA | Individual Access Pierce Heat Seal | Sealed Well Detail

Individual Access Pierce Heat Seal

On

Pierceable heat sealing foil, 96 individual seals in sheet format, high solvent resistance, resealable; suitable for PCR/storage/shipping

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

XP-A_230V | Automated Plate Seal Remover (formerly XPeel)

Automated Plate Seal Remover (formerly XPeel®)

Off

Azenta Life Sciences Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button, eliminating the need for repetitive, manual re

Horizontal Scroll
On

Place a Request

Request a Quote, Free Samples, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.
