  • Non-Skirted PCR Plate Segments | Group

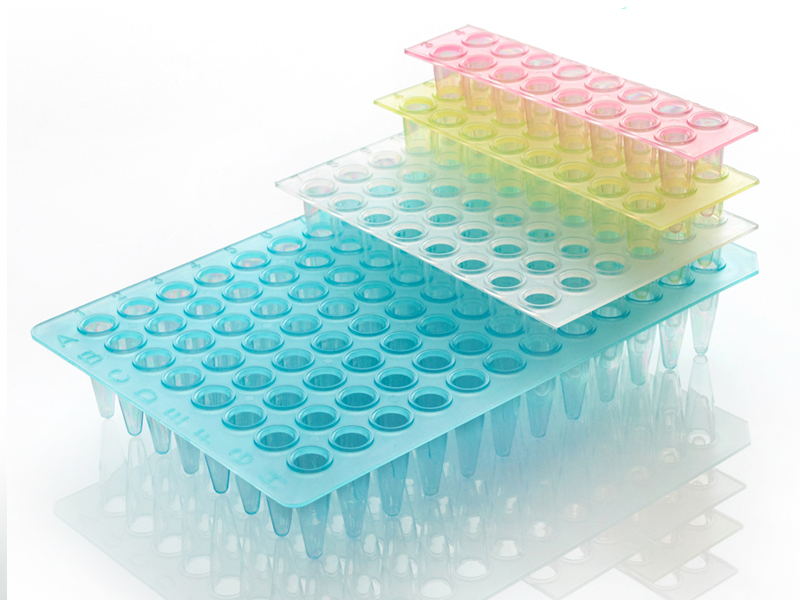

Non-Skirted PCR Plate Segment

Standard profile, 0.2ml wells, polypropylene, cut corner H12, working volume: <200µl, total well capacity: 300µl; 96 Well Non-Skirted PCR Plate divided into 8 well, 16 well, 24 well, 32 well or 48 well segments

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products

Overview

These segments are produced by dividing our 96 Well Non-Skirted PCR Plate into smaller segments, a versatile solution for when a whole PCR plate may not be needed.

All of our PCR plates are molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility, and as such comply with the same stringent requirements as our FrameStar® range.

Key Features

  • Quality
    • Subject to a strict QC procedure which includes a visual check and leak testing of every tube
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
    • Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
    • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
  • Frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Compatible with universal standard block thermal cyclers and sequencers
    • Compatible with standard multichannel pipettes
  • Options
    • Available with the following color options: clear, blue, red, green, yellow, and purple
    • Super clear well version maximizes sample visibility

Specifications

Parameter 96 Well Non-Skirted PCR Plate
Plate length 120.00 ± 0.25mm
Plate width 80.00 ± 0.25mm
Plate height 20.20 ± 0.10mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 8.75 ± 0.25mm
Distance to center of A1 from left edge 10.75 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
    • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
  • AGILENT/STRATAGENE
    • Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
    • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
    • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
  • BIOER TECHNOLOGIES
    • Thermal Cyclers (96 well block): Gene Touch 96
  • BIO-RAD
    • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™
  • CORBETT RESEARCH
    • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
  • EPPENDORF
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • PEQLAB/VWR
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler
  • TAKARA
    • Thermal Cyclers (96 well block): Dice touch | Gradient
  • TECHNE
    • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
Non-Skirted PCR Plate Segments
Standard profile, 0.2ml wells, polypropylene, cut corner H12, working volume: <200µl, total well capacity: 300µl; 96 Well Non-Skirted PCR Plate divided into 8 well, 16 well, 24 well, 32 well or 48 well segments
4ti-0750/8 clear, 1 x 8 wells; 600 segments
4ti-0750/8/B blue, 1 x 8 wells; 600 segments
4ti-0750/8/G green, 1 x 8 wells; 600 segments
4ti-0750/8/P purple, 1 x 8 wells; 600 segments
4ti-0750/8/R red, 1 x 8 wells; 600 segments
4ti-0750/8/Y yellow, 1 x 8 wells; 600 segments
4ti-0750/16 clear, 2 x 8 wells; 300 segments
4ti-0750/16/B blue, 2 x 8 wells; 300 segments
4ti-0750/16/G green, 2 x 8 wells; 300 segments
4ti-0750/16/P purple, 2 x 8 wells; 300 segments
4ti-0750/16/R red, 2 x 8 wells; 300 segments
4ti-0750/16/Y yellow, 2 x 8 wells; 300 segments
4ti-0750/24 clear, 3 x 8 wells; 200 segments
4ti-0750/24/B blue, 3 x 8 wells; 200 segments
4ti-0750/24/G green, 3 x 8 wells; 200 segments
4ti-0750/24/P purple, 3 x 8 wells; 200 segments
4ti-0750/24/R red, 3 x 8 wells; 200 segments
4ti-0750/24/Y yellow, 3 x 8 wells; 200 segments
4ti-0750/32 clear, 4 x 8 wells; 150 segments
4ti-0750/32/B blue, 4 x 8 wells; 150 segments
4ti-0750/32/G green, 4 x 8 wells; 150 segments
4ti-0750/32/P purple, 4 x 8 wells; 150 segments
4ti-0750/32/R red, 4 x 8 wells; 150 segments
4ti-0750/32/Y yellow, 4 x 8 wells; 150 segments
4ti-0750/48 clear, 6 x 8 wells; 100 segments
4ti-0750/48/B blue, 6 x 8 wells; 100 segments
4ti-0750/48/G green, 6 x 8 wells; 100 segments
4ti-0750/48/P purple, 6 x 8 wells; 100 segments
4ti-0750/48/R red, 6 x 8 wells; 100 segments
4ti-0750/48/Y yellow, 6 x 8 wells; 100 segments

Resources

PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
96 Well Non-Skirted PCR Plate Technical Drawing

96 Well Non-Skirted PCR Plate Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0750/B | 96 Well Non-Skirted PCR Plate | Front

96 Well Non-Skirted PCR Plate

BUY ONLINE
On

Standard profile, 0.2ml wells, polypropylene, cut corner H12, working volume: <200µl, total well capacity: 300µl; universal non-skirted plate, designed for use on standard thermal cyclers

4ti-0750/TA | 96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically 96/8 | Breaking Detail

96 Well Non-Skirted PCR Plate Breakable Horizontally or Vertically

BUY ONLINE
On

96 well non-skirted PCR plate, vertically or horizontally perforated, standard profile, 0.2ml wells, polypropylene, cut corner H12; working volume: <200µl, total well capacity: 300µl; tears

4ti-0711 | FrameStar 96 Well Non-Skirted PCR Plate | Front

FrameStar® 96 Well Non-Skirted PCR Plate

On

Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal non-skirted plate designed for use on all major the

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

4ti-0521 | Peel Heat Seal | Peeling Detail

Peel Heat Seal

BUY ONLINE
On

Peelable heat sealing foil; suitable for low temperature storage, high temperature uses and PCR

4ti-0531 | Pierce Heat Seal | Piercing Detail

Pierce Heat Seal

BUY ONLINE
On

Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping

Horizontal Scroll
On
Home
Facebook twitter youtube linkedin
Copyright © 2022 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
