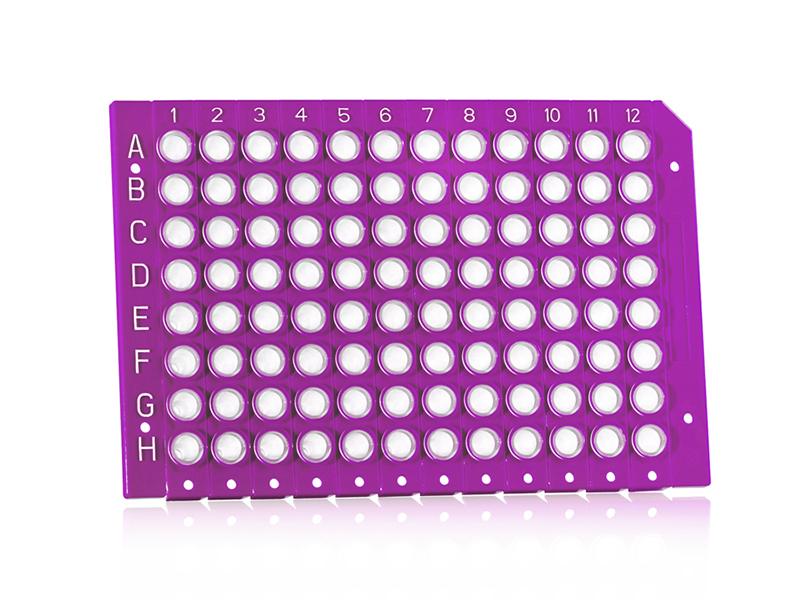

  • 4ti-1000/P | FrameStar Breakable Vertically PCR Plate | Front

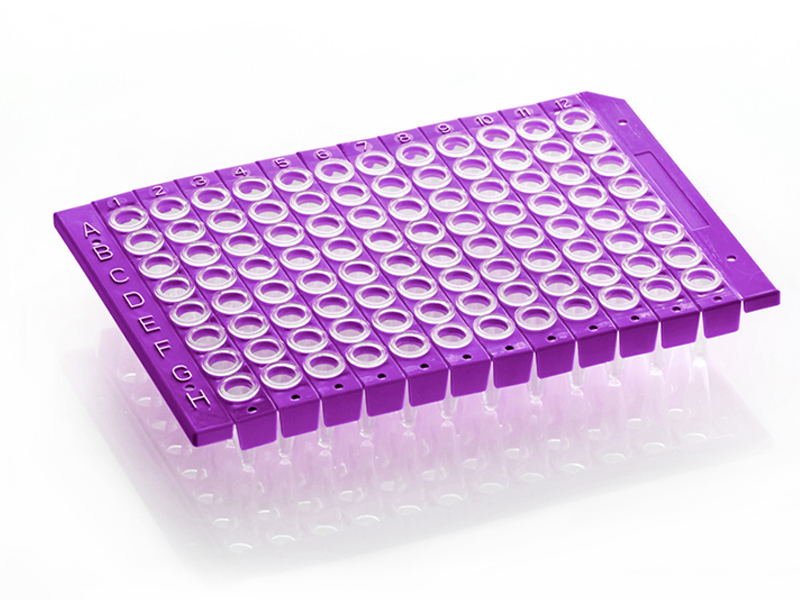

  • 4ti-1000/P | FrameStar Breakable Vertically PCR Plate

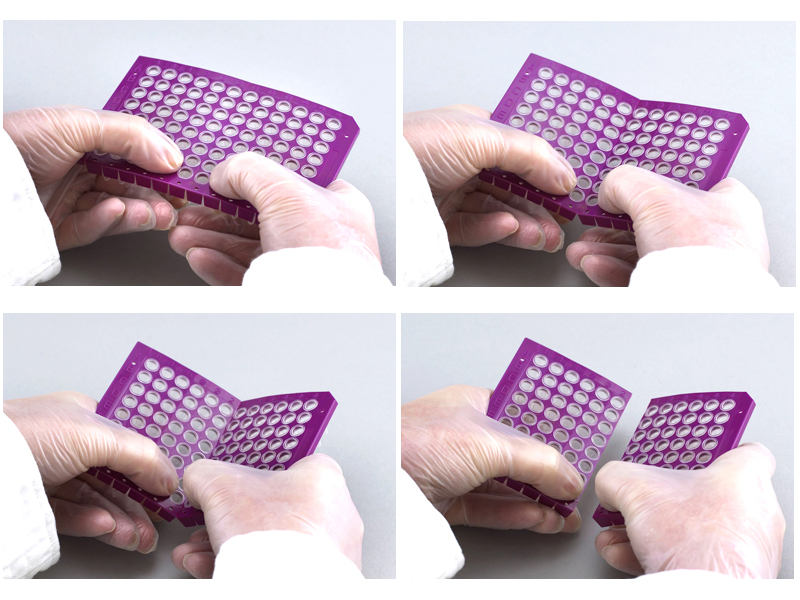

  • 4ti-1000/P | FrameStar Breakable Vertically PCR Plate | Breaking Detail

FrameStar® Breakable Vertically PCR Plate

96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working volume: <200µl, total well capacity: 300µl

  • Available 2D coded on request
Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products

Overview

Our FrameStar Breakable Vertically PCR Plates utilize the 2-component design of the FrameStar range, which combines the. advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling. Learn more about the features and benefits of the FrameStar range.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
    • 2-component design prevents distortion of tube strips
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
  • Frame
    • End tabs for easy handling and labeling
    • Eliminates strip breakage
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Rigid PCR plate that can be broken into smaller plate sections
    • Fits majority of thermal cyclers
    • Compatible with standard multichannel pipettes
  • Options
    • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
    • Also available as a black frame with white wells for use with optical assays such as qPCR
    • Also available as a FrameStar Breakable Vertically PCR Plate, Low Profile (0.1ml well capacity option)
    • 2D coding option; learn more about our barcoding options
    • 2D code reader available

Specifications

Parameter FrameStar Breakable Vertically PCR Plate
Plate length 125.11 ± 0.25mm
Plate width 83.22 ± 0.25mm
Plate height 20.80 ± 0.25mm
Well depth 20.30 ± 0.15mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 10.11 ± 0.25mm
Distance to center of A1 from left edge 13.06 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
    • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | ViiA7™
    • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
  • AGILENT/STRATAGENE
    • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
    • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
    • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
  • BIOER TECHNOLOGIES
    • Thermal Cyclers (strips only): GeneQ
    • Thermal Cyclers (96 well block): Gene Touch 96
  • BIO-RAD
    • Thermal Cyclers (strips only): Genecycler
    • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
    • qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (strips only): Mini Gradient
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™
  • CORBETT RESEARCH
    • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
  • EPPENDORF
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • PEQLAB/VWR
    • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler
  • TAKARA
    • Thermal Cyclers (96 well block): Dice touch | Gradient
  • TECHNE
    • Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
    • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

FrameStar Breakable Vertically PCR Plates are not compatible with the ABI 9700 dual block thermal cycler.

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
FrameStar Breakable Vertically PCR Plate
96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working volume: <200µl, total well capacity: 300µl
4ti-1000/P clear wells, purple frame; 50 plates
4ti-1000/B clear wells, blue frame; 50 plates
4ti-1000/C clear wells, clear frame; 50 plates
4ti-1000/G clear wells, green frame; 50 plates
4ti-1000/R clear wells, red frame; 50 plates
4ti-1000/W clear wells, white frame; 50 plates
4ti-1000/X clear wells, black frame; 50 plates
4ti-1001 white wells, black frame; 50 plates

2D coding is available for this product. Contact an expert for more information or read more about 2D coding.

Resources

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Application Notes & Tech Notes
Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Application Notes & Tech Notes
PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
FrameStar® Breakable Vertically PCR Plate Technical Drawing

FrameStar® Breakable Vertically PCR Plate Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-1200/B | FrameStar Breakable Vertically PCR Plate, Low Profile | Breaking Detail

FrameStar® Breakable Vertically PCR Plate, Low Profile

On

96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume:

4ti-1300/X | FrameStar Breakable Horizontally and Vertically PCR Plate | Breaking Detail

FrameStar® Breakable Horizontally and Vertically PCR Plate

On

96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; standard profile, 0.2ml polypropylene wells,

4ti-1400/X | FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile | Breaking Detail

FrameStar® Breakable Horizontally and Vertically PCR Plate, Low Profile

On

96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; low profile, 0.1ml polypropylene wells, polyc

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

4ti-0519 | Double Sided Re-Sealable Adhesive Film

Double Sided Re-Sealable Adhesive Film

Off

Double sided adhesive film, black, with 96 holes and a protective liner, peelable; suitable for re-sealing without the need for a heat sealer

4ti-0536 | Foil Heat Seal | Piercing Detail

Foil Heat Seal

BUY ONLINE
On

Aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR

Horizontal Scroll
On
Home
Facebook twitter youtube linkedin youtube
Copyright © 2022 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
