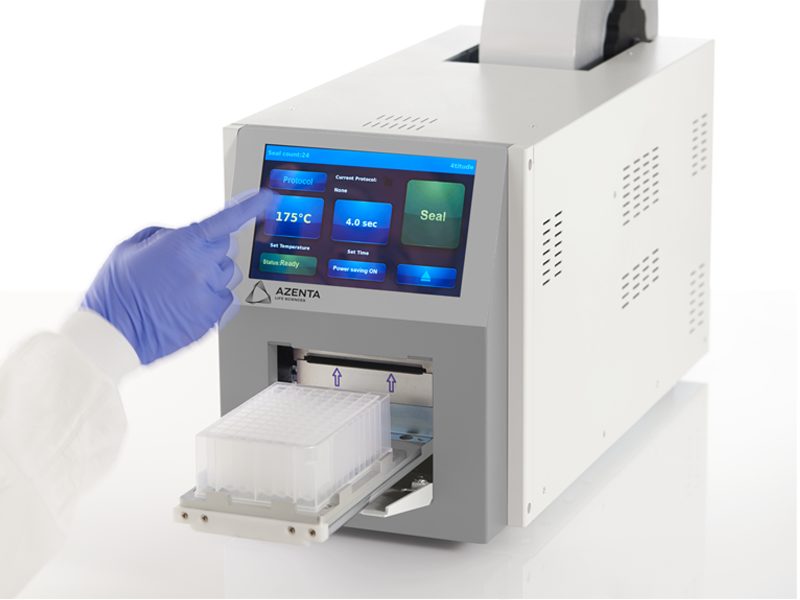

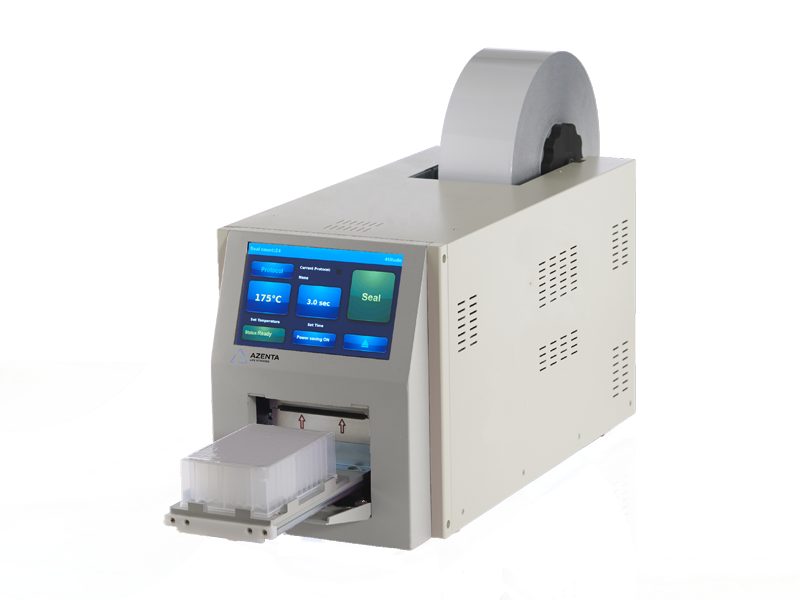

Automated Roll Heat Sealer (formerly a4S)

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Ordering Information
  • Support Plans
  • Resources
  • Related Products
  • Place a Request

Overview

The main advantage of the Automated Roll Heat Sealer is that it does not require an air supply, which gives it the flexibility to be used on standard lab benches as a stand-alone unit, or integrated within a robotic set‑up. The sealer’s rapid heating element enables a fast start-up, and the stand-by function saves energy when the unit is not in use.

The Automated Roll Heat Sealer is compatible with a wide range of SBS footprint plates, including all PCR plate formats from 96 well to 1536 well, assay plates, deep well storage plates and microplates. Varying plate heights, from 3mm to 60mm can be accommodated with minimal adjustments of the instrument. Plates are presented in portrait format and the plate position on the shuttle allows good access for robotic integration.

Rolls with a width of between 75-85mm can be loaded in either of two roll positions, depending on roll length and available space, enabling the entire instrument to fit under the gantry of most liquid handling robots. The width and length of the applied seals are set to precisely cover an SBS footprint plate without interfering with plate stacking. The seal position can be adjusted to give an overhang at one end of the plate to facilitate ease of seal removal.

Key Features

  • Simple Installation
    • No need for compressed air: installation is fast and flexible
    • 2 positions for different roll sizes: increased flexibility
    • Optional roll cover provides seal protection for sensitive applications
  • Easy Handling
    • Color touch screen with intuitive user interface for ease of use
    • Unlimited password protected protocols: 3 security levels save personalized and SOP set temperatures and times
    • Rapid heating: fast start up time, block uniformity is maintained to ± 1°C
    • Variable time/temperature controls: adjustment of time and temperature settings enables the perfect seal to be established for any sealer friendly, high-quality plate type, e.g. all Azenta Life Sciences plates
    • Up to 5,000 seals without manual intervention: true walk-away-system
  • Reproducible Sealing
    • Reproducible sealing: fixed pressure and accurate time and temperature controls ensure consistent sealing
    • High sealing pressure: improved seal uniformity on a wide range of plates
    • Sealing cycle time of less than 15 sec: time saving
  • Highest Flexibility
    • Compatible with a wide range of plate types, from racked tubes to 1536 well PCR plates
    • Flexibility of seal material choice: Azenta Life Sciences offers a wide range of sealing materials, with a variety of properties for use with the Automated Roll Heat Sealer
    • Compatible with gas permeable heat seals: no instrument modification necessary for maximum convenience
  • Economic Efficiency
    • Competitive pricing: save money without compromises
    • Auto standby mode: saves energy and extends component life
    • 2 year warranty on parts and labor
    • Extended warranty and service contracts available for peace of mind
  • Plug and Play Robotic Integration
    • The Automated Roll Heat Sealer sealer is extremely versatile leaving you the freedom to expand and configure your systems such as adding robotic plate handling
    • SiLA compatible: quick and easy integration with other SiLA compliant devices using the SiLA driver (available at extra cost, please see ordering information); all Azenta Life Sciences microplate sealing instruments are compliant with SiLA standards for rapid integration of automated systems
    • This means they can be "plug and play" connected with other instruments, such as readers, robotic arms and liquid handlers, to give a custom automated system without the need to write expensive custom drivers
    • Full communication protocol available: operate the instrument and record sealing conditions for each seal using the RS232 communication port
  • Applications

    qPCR: reduce evaporation and save money

    • The optimized sealing performance of the Automated Roll Heat Sealer prevents reagent volume loss by evaporation
    • Up to a fivefold reduction in the costs of sealing can be achieved when heat sealing with the Automated Roll Heat Sealer compared to using caps or adhesive seals
    • Reliable qPCR results and significant reagent savings can be achieved by using Clear Heat Seal (4ti-0540) and Clear Weld Heat Seal (4ti-0573, particularly designed for hydrocyclers)

    Cell assays and cell culture: increase cell viability and assay performance

    • Heat sealing is the optimal method for cell based assay plates and cell culture plates
    • It is a proven method for compound storage, particularly in protective gases such as Argon and CO₂
    • Gas Permeable Heat Seal (4ti-0598) is the perfect choice for cell culture: allows for optimized gaseous exchange, whilst limiting evaporation

    Sample storage: strongest resistance against organic solvents

    • Essential requirements for long-term storage include maintaining sample integrity and minimizing the risks of sample degradation
    • When applied using the Automated Microplate Heat Sealer, Foil Heat Seal (4ti-0535), Pierce Heat Seal (4ti-0530), and DMSO Resistant Peel Heat Seal (4ti-0585) demonstrate the highest performance in compound storage, drug screening and subsequent sample retrieval
    • DMSO Resistant Peel Heat Seal is the first 100% DMSO resistant seal: pure DMSO can be stored at room temperature for 12 months with this seal with no deterioration of the seal quality

Specifications

Parameter Automated Roll Heat Sealer
Dimensions (W x L x H) 230 x 507 x 276mm
Sealing temperature range 100-195°C
Sealing time range 0.1-10 sec
Weight (without roll) 27kg
Power supply V in: AC 100-240V; V out: DC 24V 320W
Power consumption 700W (max)
Working temperature range 10-30°C
Operating humidity (RH) 0-85%
Operating humidity (RH) 0-85%
Connection RS-232 serial port, USB port



Ordering Information

Use these part numbers to request a quote, a demo or to contact an expert:

Part number Description
Automated Roll Heat Sealer
For automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications
4ti-0665
BUY ONLINE*
Includes: universal power supply, power cord, plate support adapters A (4ti-0665-2) and B (4ti-0665-3), 24 month parts and labor warranty; 1 unit
Sealer adapters and accessories
4ti-0665-1** Seal Loading Tool; 1 tool

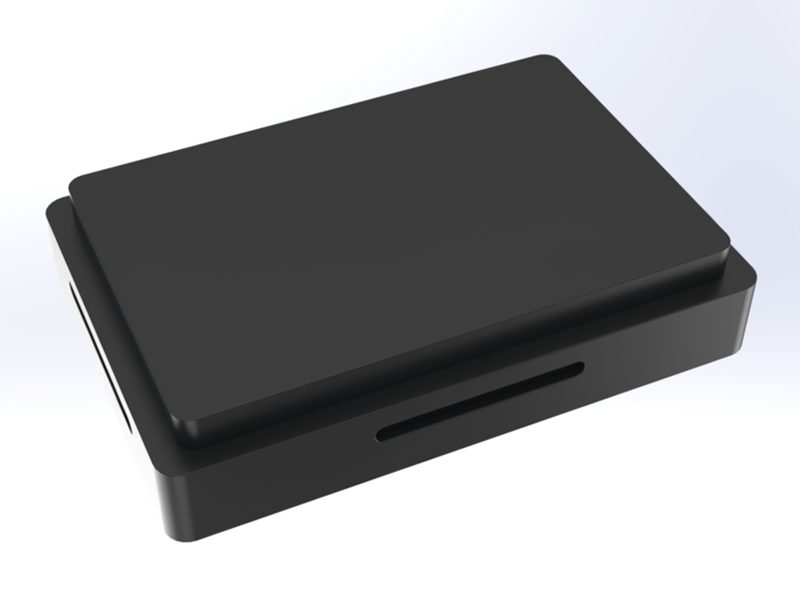

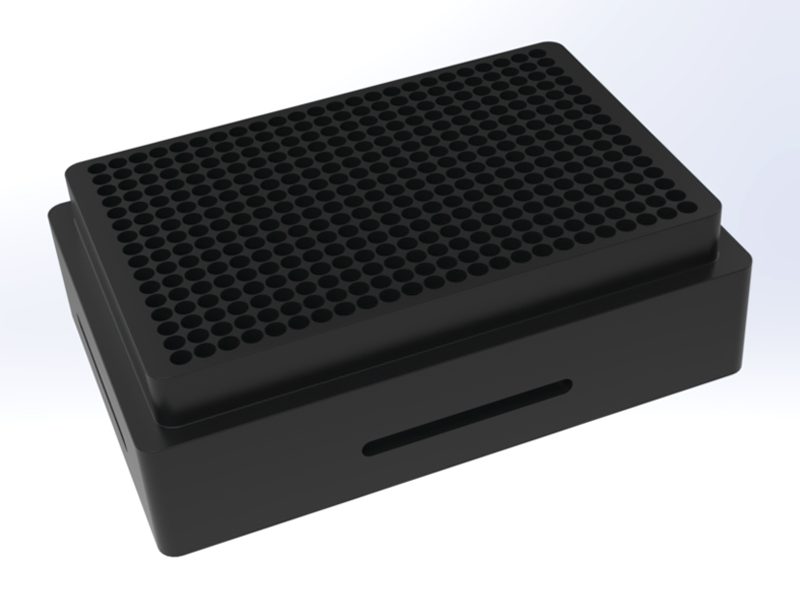

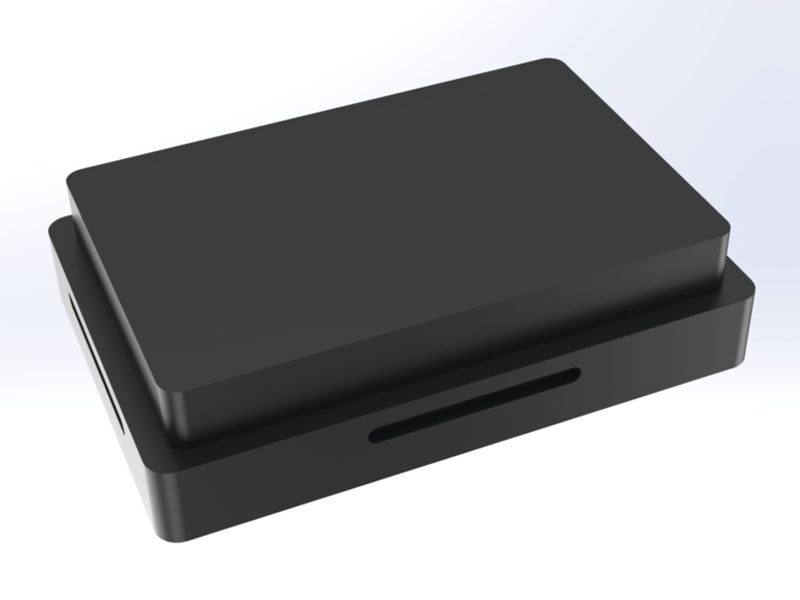

4ti-0665-2** Plate Support Adapter A; 1 adapter

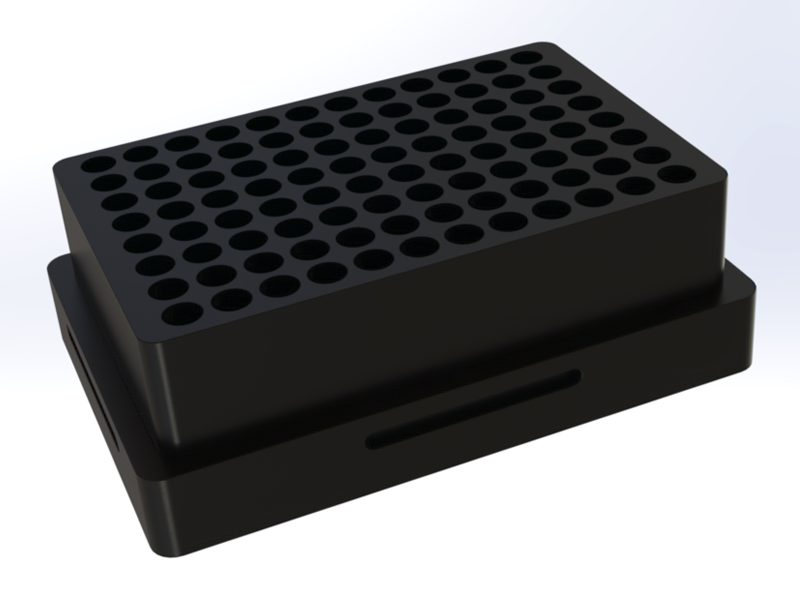

4ti-0665-3** Plate Support Adapter B; 1 adapter
4ti-0665-4** Roll Holder Set; includes spindle, clamping wheels, locking nut; 1 set
4ti-0665-5** Vacuum Cups, Front; clear, set of 2; 1 set
4ti-0665-6** Vacuum Cups, Back; black, set of 2; 1 set
4ti-0665-7 Plastic Tweezers; 1 tweezers
4ti-0665-8*** Clear Plastic Roll Dust Cover; 1 cover
4ti-0665-41 SiLA driver; 1 license
Sealer warranties
4ti-0665-11 Warranty extension, third year (36 months total); 1 extension
4ti-0665-12 Warranty extension, third and fourth year (48 months total); 1 extension
4ti-0665-113 Warranty extension, fourth year; 1 extension



*Online availability to US only

**These items are included with the Automated Microplate Sealer (product code 4ti-0665)

***Please note: only applicable for smaller rolls (product code 4ti-xxxx/80, /100, /122)

Support Plans

Instrument Support Plans

Instrument Support Plans

Off

Azenta Life Sciences offers Instrument Support Plans to support your needs; these packages have been structured to offer flexibility so you can choose a package that suits you

Horizontal Scroll
Off

Resources

Automated Roll Heat Sealer Flyer

Automated Roll Heat Sealer Flyer

Brochures & Sell Sheets
Anatomy of Automated Roll Heat Sealer

Anatomy of Automated Roll Heat Sealer

Brochures & Sell Sheets
Automated Roll Heat Sealer Reference Sheet

Automated Roll Heat Sealer Reference Sheet

Brochures & Sell Sheets
Instrument Support Plans Flyer

Instrument Support Plans Flyer

Brochures & Sell Sheets
The Transformative Benefits of Automation in High Throughput Drug Discovery Workflows

The Transformative Benefits of Automation in High Throughput Drug Discovery Workflows

Case Studies
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
Heat Sealing Comparison and Compatibility Table

Heat Sealing Comparison and Compatibility

Brochures & Sell Sheets
Automated Roll Heat Sealer Operation Manual

Automated Roll Heat Sealer Operation Manual

Manuals & Guides
Automated Roll Heat Sealer Quick User Guide (EN)

Automated Roll Heat Sealer Quick User Guide (EN)

Manuals & Guides
Automated Roll Heat Sealer Quick User Guide (FR)

Automated Roll Heat Sealer Quick User Guide (FR)

Manuals & Guides
Automated Roll Heat Sealer for PCR Plates and Microplates Technical DrawingTechnical Drawing

Automated Roll Heat Sealer Technical Drawing

Technical Drawings
Automated Roll Heat Sealer Intro Video

Automated Roll Heat Sealer Intro Video

Videos
Microplate Sealing and Peeling for High Throughput Labs

Microplate Sealing and Peeling for High Throughput Labs

Whitepapers & eBooks
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

XP-A_230V | Automated Plate Seal Remover (formerly XPeel)

Automated Plate Seal Remover (formerly XPeel®)

Off

Azenta Life Sciences Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button, eliminating the need for repetitive, manual re

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0541 | Clear Heat Seal

Clear Heat Seal

BUY ONLINE
On

Peelable heat sealing film, optically clear; suitable for qPCR and optical applications

4ti-0597 | Gas Permeable Heat Seal

Gas Permeable Heat Seal

Off

Heat sealing membrane, limits evaporation, peelable, pierceable; suitable for cell culture, seed and insect storage

4ti-0587 | DMSO Resistant Peel Heat Seal | Peeling Detail

DMSO Resistant Peel Heat Seal

Off

Solvent resistant heat sealing foil, peelable; suitable for low and room temperature compound storage

Horizontal Scroll
On

Place a Request

Request a Quote, a Demo, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or a demo by filling out and submitting the form.

Home
Facebook twitter youtube linkedin
Copyright © 2023 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
