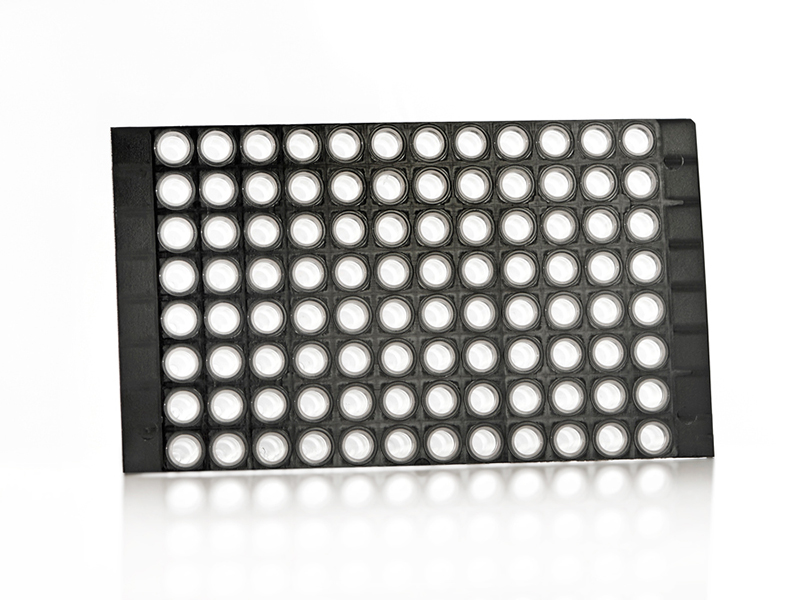

FrameStar® Breakable Horizontally and Vertically PCR Plate

96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working volume: <200µl, total well capacity: 300µl

Place a Request

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

The FrameStar Breakable Horizontally and Vertically PCR Plates allow for the most flexible, efficient and cost-effective use of FrameStar PCR plates, ensuring not a single tube is wasted.

Our FrameStar Breakable Horizontally and Vertically PCR Plates utilize the 2-component design of the FrameStar range, which combines the advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling. Learn more about the features and benefits of the FrameStar range.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
  • Use

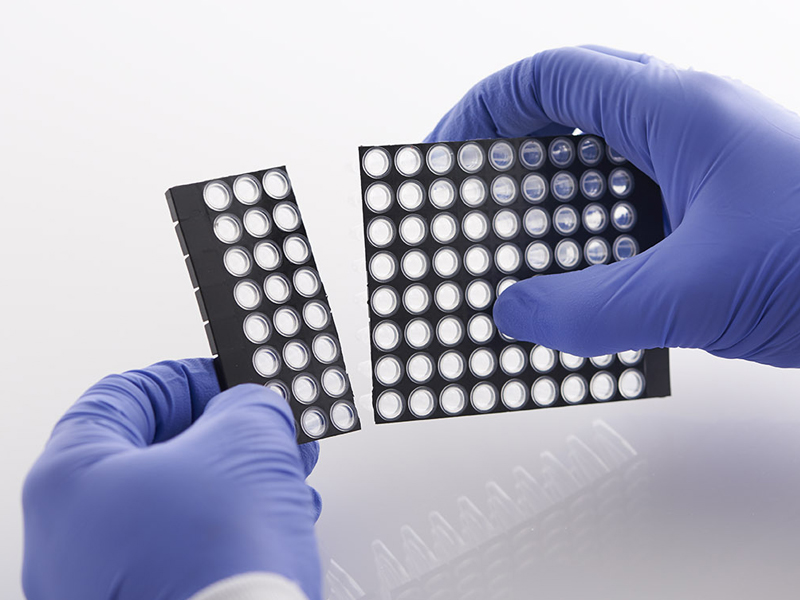

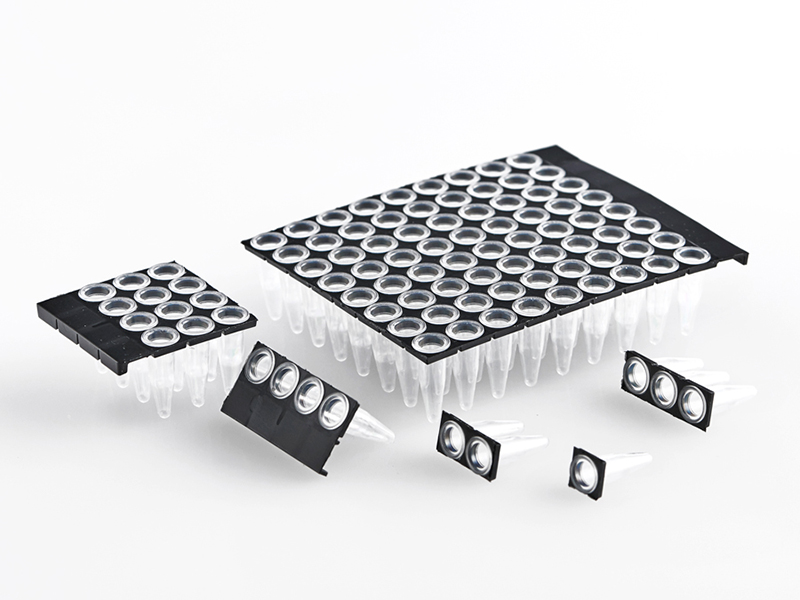

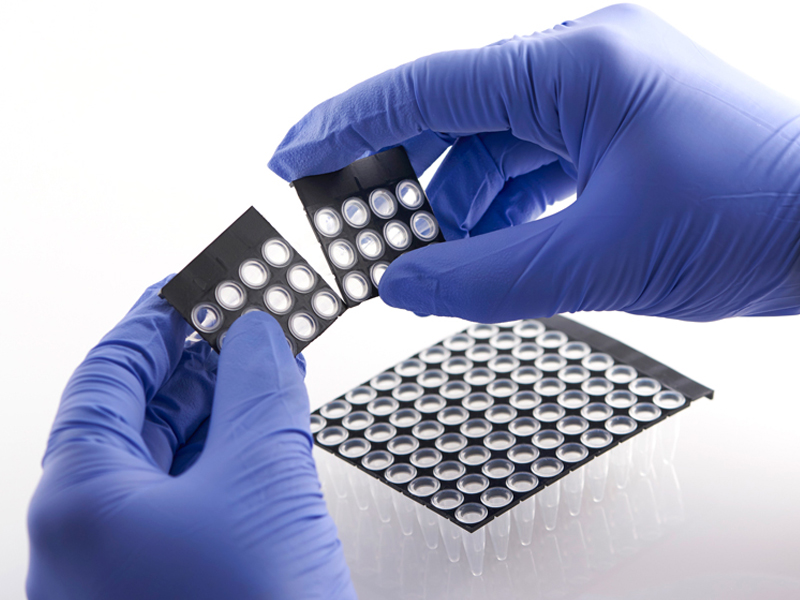

    • Plates can be broken up in both 8-strip vertical and 12-strip horizontal directions, resulting in individual strips, part strips, or even individual tubes, giving you the highest range of flexibility
    • Breaking a plate is more accurate, more convenient, and safer than cutting it with scissors, as it avoids damaging the sealing rings and contamination of the wells
    • Plates can be filled, sealed and separated for storage, processing or distribution
    • Easy to break at any temperature
    • The plate can be adapted to individual pipetting schemes without the need to waste empty wells
    • Separated strips or tubes can be used for the positive control to avoid contamination of the samples
    • Compatible with all instruments that fit non-skirted, standard profile plates
    • NB: In some cases you may have to break off the end tabs for it to fit
    • Compatible with standard multichannel pipettes
  • Options
    • Available as a FrameStar Breakable Vertically PCR Plate; and FrameStar Breakable Vertically PCR Plate, Low Profile that snap into 8-tube strips or part plates
    • Also available as a FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile

Specifications

Parameter FrameStar Breakable Horizontally and Vertically PCR Plate
Plate length 125.00 ± 0.25mm
Plate width 72.0 ± 0.25mm
Plate height 20.70 ± 0.25mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 4.5 ± 0.25mm
Distance to center of A1 from left edge 8.5 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
    • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
    • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
  • AGILENT/STRATAGENE
    • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
    • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard / Basic) Gradient / XL | Trobot 96 | SpeedCycler2 (SP, SPR)
    • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
  • BIOER TECHNOLOGIES
    • Thermal Cyclers (strips only): GeneQ
    • Thermal Cyclers (96 well block): Gene Touch 96
  • BIO-RAD
    • Thermal Cyclers (strips only): Genecycler
    • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
    • qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (strips only): Mini Gradient
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™
  • CORBETT RESEARCH
    • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
  • EPPENDORF
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • PEQLAB/VWR
    • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler
  • TAKARA
    • Thermal Cyclers (96 well block): Dice touch | Gradient
  • TECHNE
    • Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
    • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

In some cases it may be required to break off the end tabs to allow for a perfect fit.

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
FrameStar Breakable Horizontally and Vertically PCR Plate
96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working volume: <200µl, total well capacity: 300µl
4ti-1300/X clear wells, black frame; 50 plates
