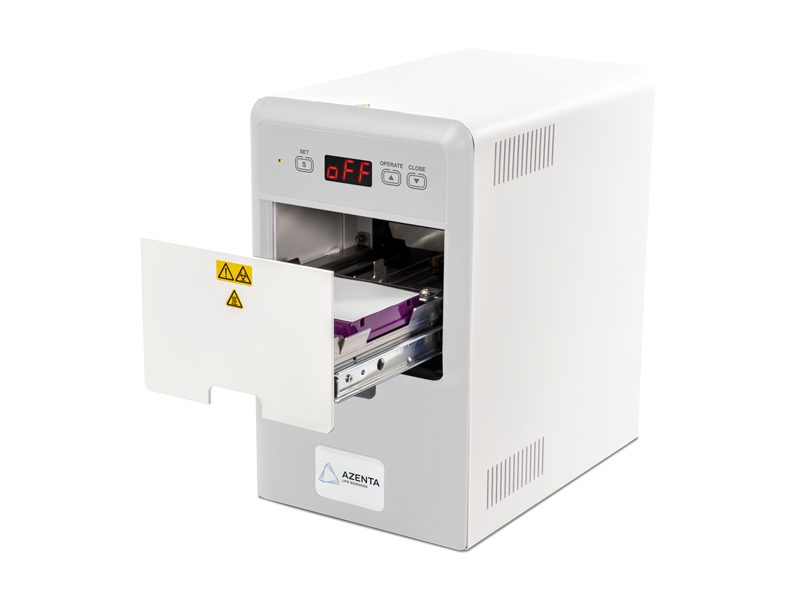

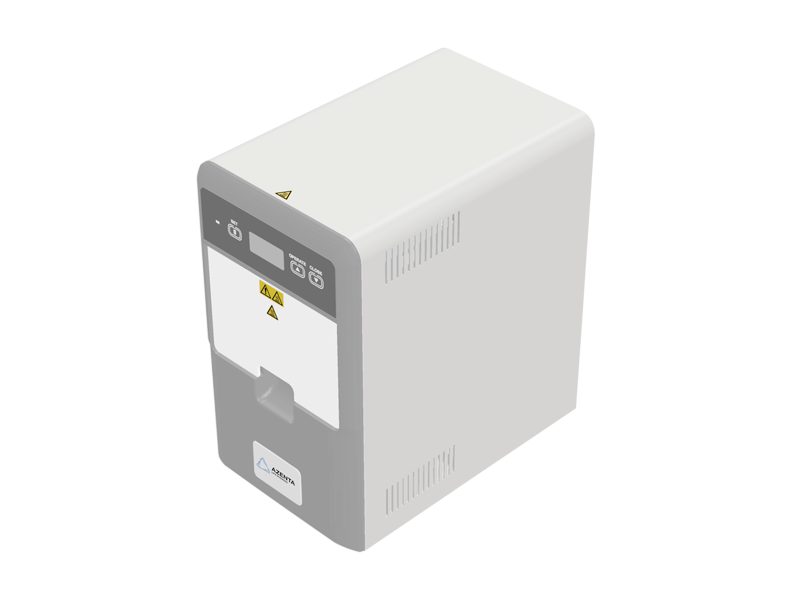

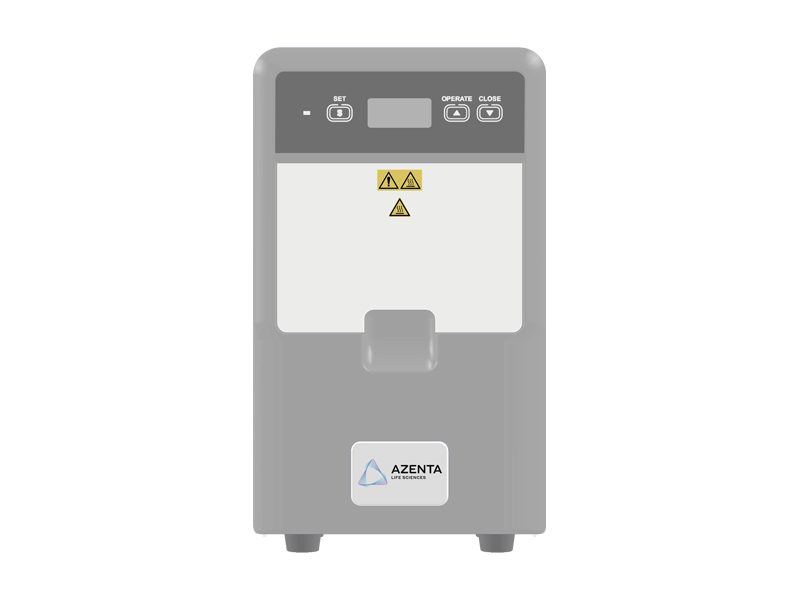

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights.

  • Suitable for a wide range of plate types
  • Compact and lightweight design
  • Easy to use

Jump To:

Details | Specifications | Sealing Parameters | Order Info | Resources | Claim Promo

Want to request a quote, a demo, or to contact an expert?

Place a Request
BUY ONLINE*

*Online availability to US only

Product Details

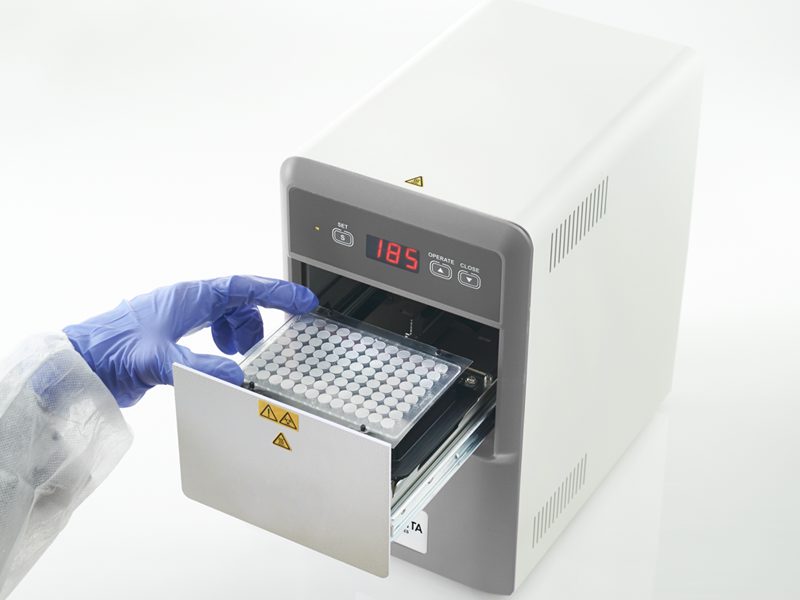

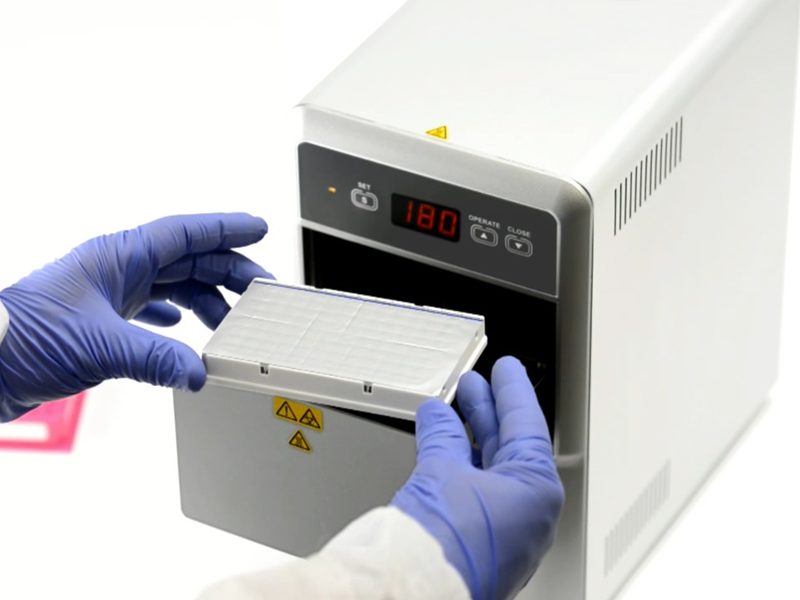

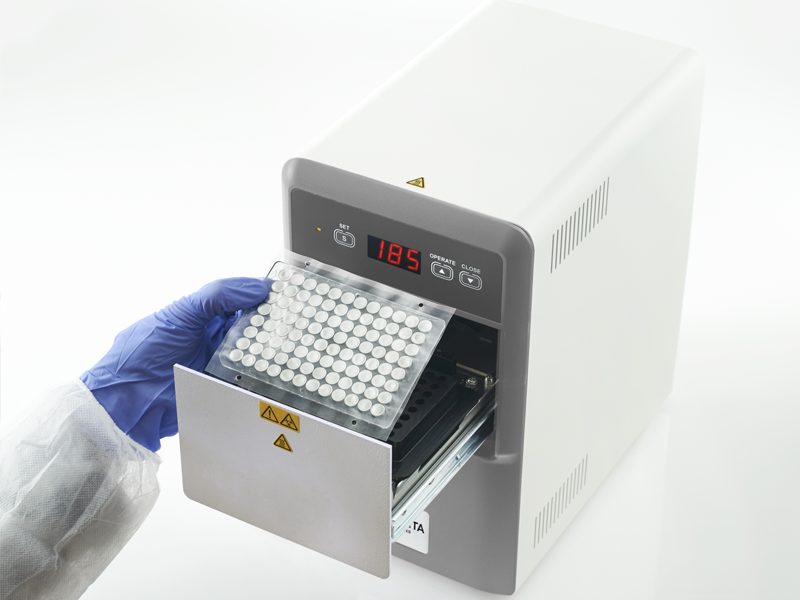

With variable temperature and time settings, sealing conditions are easily optimized to produce a 100% seal, eliminating sample loss. Plate and seal are placed on the holder, the “Operate” button pressed and the drawer automatically closes. The sealing process is controlled by an electric mechanism; this unique feature eliminates operator variation, giving a consistent seal every time and reducing the damage caused to microplates by over-sealing.

Key Features

Real Time Display
  • Rapid heating element to allow for a quick start up within minutes
  • Real time temperature display to allow monitoring of heating process
Energy Saving Functions
  • When idle, unit automatically switches to standby mode: heating element temperature reduces to 60°C to save energy
  • When idle for longer periods, it automatically switches off for added safety
  • Triggering of standby and switch off modes can be adjusted to suit user’s needs
Plate Adapters & Sealing Aids
  • Triggering of standby and switch off modes can be adjusted to suit user’s needs
  • Unique and cost saving adapter system
  • Included standard plate carrier (59-2001) for sealing deep well plates and most skirted plates
  • Additional plate carrier (59-2003, optional extra) for all 96 well PCR plates
  • Both plate carriers can be combined for easier handling of shallow well plates, e.g. 384 well PCR plates
  • For better sealing of films with a tendency to curl, Azenta Life Sciences offers sealing aids
  • A weighted platen (59-2008) for use with deep well blocks can be ordered separately
  • A sealing frame for use with all other plate designs is supplied when ordering the optional 59-2009 adapter
  • The sealer allows for sealing of Individual Access Plates with the corresponding Individual Access Heat Seals using the Individual Access adapter (59-2005)
Plate Formats
  • SBS standard polypropylene and polystyrene plates and deep well blocks
  • PCR plates including skirted, semi-skirted and non-skirted formats
  • Individual Access PCR Plates
RS-232 Port for Automation Integration
  • RS-232 port enables unit integration into most automated systems
Specifications
  Semi-Automated Sheet Heat Sealer
Dimensions (W x L x H) 181 x 275 x 310mm
Sealing temperature range 60-200°C
Weight 9kg
Voltage 110/230V
Power 300W (max)

Product Documentation



Semi-Automated Sheet Heat Sealer User Manual

Sealing Parameters

Technical data and parameters for heat sealing laboratory plates with the Semi-Automated Sheet Heat Sealer

Product name / code Temperature & dwell time for
  96 well PCR plates 384 well PCR plates Vision Plates™ (COC plates)
Clear Heat Seal / 4ti-0541 175-185 °C, 2-3 sec 165-180 °C, 3 sec 185-200 °C, 3 sec
Clear Weld Heat Seal / 4ti-0575 175-185 °C, 2-3 sec 170-175 °C, 2-3 sec –
Clear Heat Seal Plus / 4ti-05481 175-185 °C, 2-3 sec 165-180 °C, 3 sec 185-200 °C, 3 sec
Clear Heat Seal Easily Pierceable / 4ti-0581 165-175 °C, 3 sec 165-175 °C, 2 sec 175-185 °C, 2-3 sec
Peel Heat Seal / 4ti-0521 175-185 °C, 3 sec 175-185 °C, 3 sec –
Universal Peel Heat Seal / 4ti-05231 175 °C, 2 sec 175 °C, 2 sec 180 °C, 2 sec
DMSO Resistant Peel Heat Seal / 4ti-0587 175-185 °C, 3 sec 170-175 °C, 2-3 sec –
Pierce Heat Seal / 4ti-0531 160-175 °C, 2 sec 160-175 °C, 2 sec 185-200 °C, 3 sec
Pierce Heat Seal Strong / 4ti-05381 170-180 °C, 2 sec 170-180 °C, 2 sec 180-200 °C, 3 sec
Individual Access Pierce Heat Seal Strong / 4ti-05381/RA 170-180 °C, 2 sec 170-180 °C, 2 sec 180-200 °C, 3 sec
Foil Heat Seal / 4ti-0536 165-180 °C, 2 sec 165-175 °C, 2-3 sec 185-200 °C, 3 sec
Polystyrene Foil Heat Seal / 4ti-0547 165-180 °C, 2 sec 165-175 °C, 2-3 sec 185-200 °C, 3 sec
Thermal Bond Heat Seal / 4ti-0591 170-180 °C, 2-3 sec 160-170 °C, 2 sec –
Gas Permeable Heat Seal / 4ti-0597 170 °C, 2 sec 170 °C, 2 sec 170 °C, 2 sec
Clear Heat Seal, Peelable Film / 4ti-0541/SLIT 175-185 °C, 2-3 sec 165-180 °C, 3 sec 185-200 °C, 3 sec
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Semi-Automated Sheet Heat Sealer
Semi-automatic sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights
59-2000 Includes: universal power supply, power cord, manual, standard plate support adapter (59-2001), 12 month parts and labor warranty; 1 unit; Buy Online*
Adapters & Accessories
59-2008 Weighted Sealing Platen; for holding down sealing sheets that have a tendency to curl; 1 platen
59-2009 Sealing Frame; for use with Plate Support Adapter, PCR 96 (59-2003); 1 frame
59-2005 Plate Support Adapter, Individual Access; for Individual Access seals; 1 adapter
59-2001** Plate Support Adapter, Standard; for skirted 96 and 384 well plates; 1 adapter
59-2002 Plate Support Adapter, Roche 1536; for Roche 1536 well PCR plates; 1 adapter
59-2006 Plate Support Adapter, Storage 96 and 384; for 96 and 384 well storage plates; 1 adapter
59-2004 Plate Support Adapter, PCR 384; for 384 well PCR plates; 1 adapter
59-2007 Plate Support Adapter, PCR 96 MPL; for 4ti-LB0109, 4ti-0117 and 96 well PCR plates; 1 adapter
59-2003 Plate Support Adapter, PCR 96; for 96 well PCR plates; 1 adapter

*Online availability to US only

**These items are included with the Semi-Automated Sheet Heat Sealer (product code code 59-2000)

Support Plans



Tailored to suit your specific needs, our support plans help to minimize downtime, offering corrective services, remote diagnostics, and preventative maintenance to keep your instruments in top working order.
