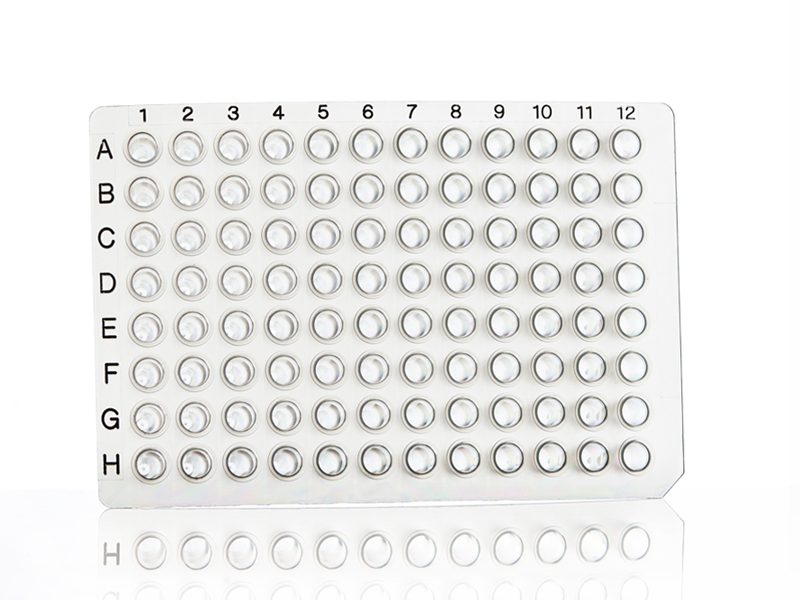

96 Well Non-Skirted PCR Plate

96 well non-skirted universal plates with standard profile wells, designed for use on standard thermal cyclers.

Virgin polypropylene; cut corner H12
<200µl working volume, 300µl total well capacity

Request Quote, Samples, Or Expert Consultation

Not the Right Plate? Try Our PCR Plate Selector

Jump To:

Details | Specifications | Compatibility | Order Info | Resources

Product Details

Key Features

Quality

Subject to a strict QC procedure which includes a visual check and leak testing of every tube
Molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility
Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Wells

Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation

Frame

Alphanumeric grid reference to aid well and sample identification

Use

Compatible with universal standard block thermal cyclers and sequencers
Compatible with standard multichannel pipettes

Options

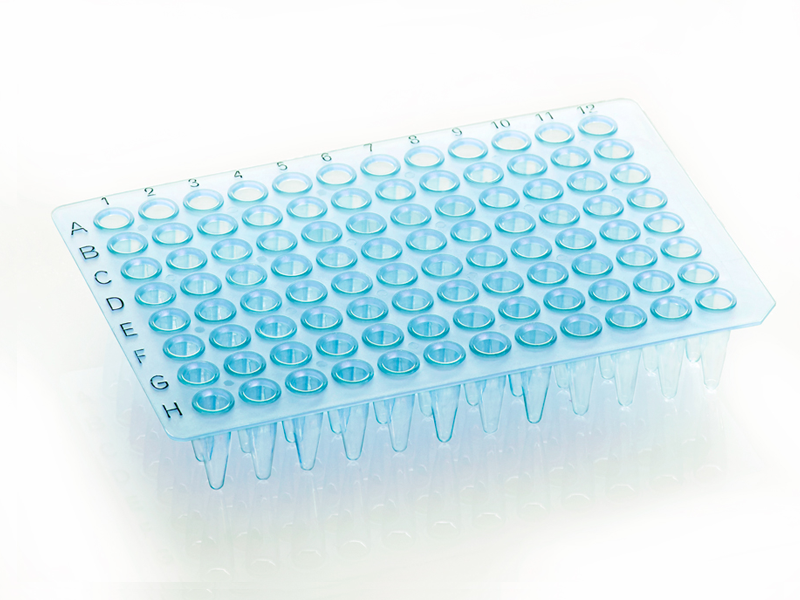

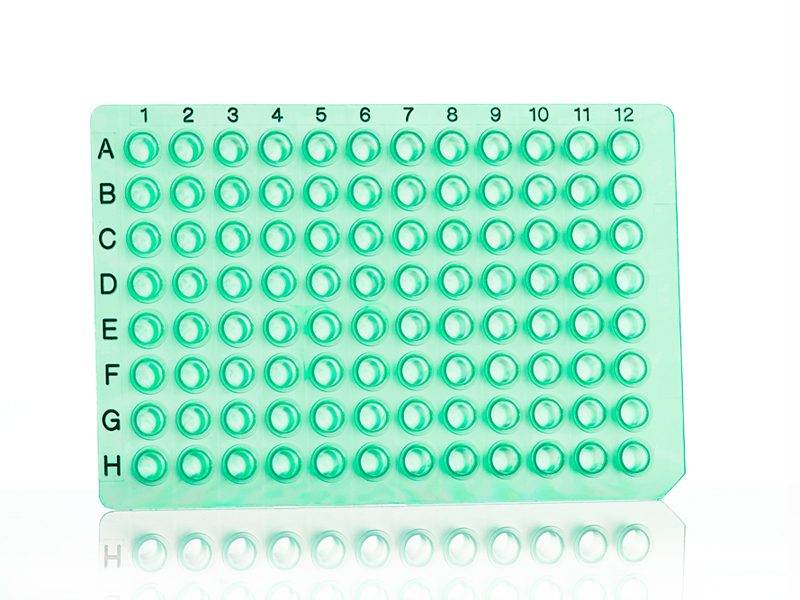

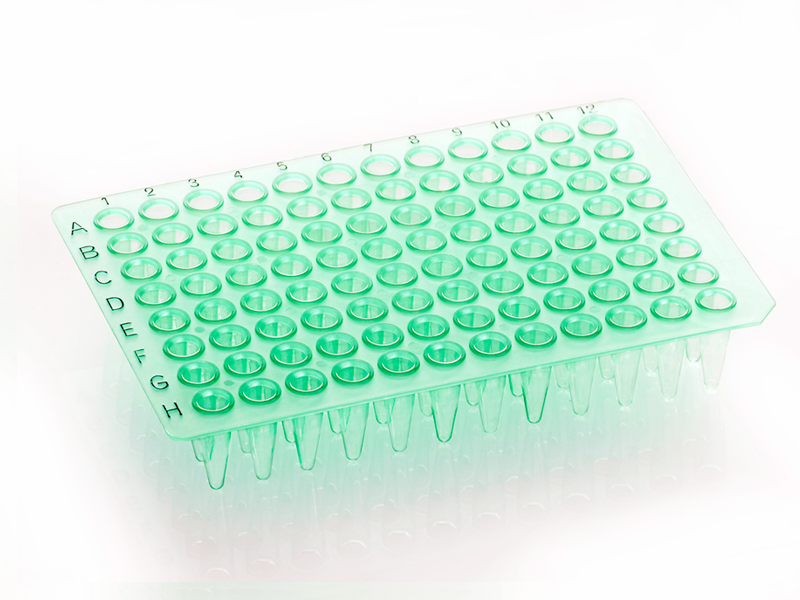

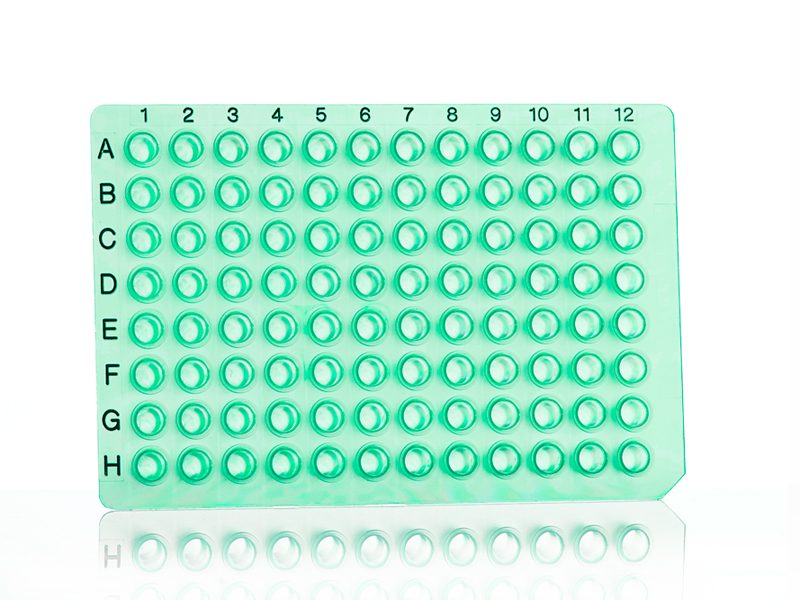

Available with the following color options: clear, blue, green, and white

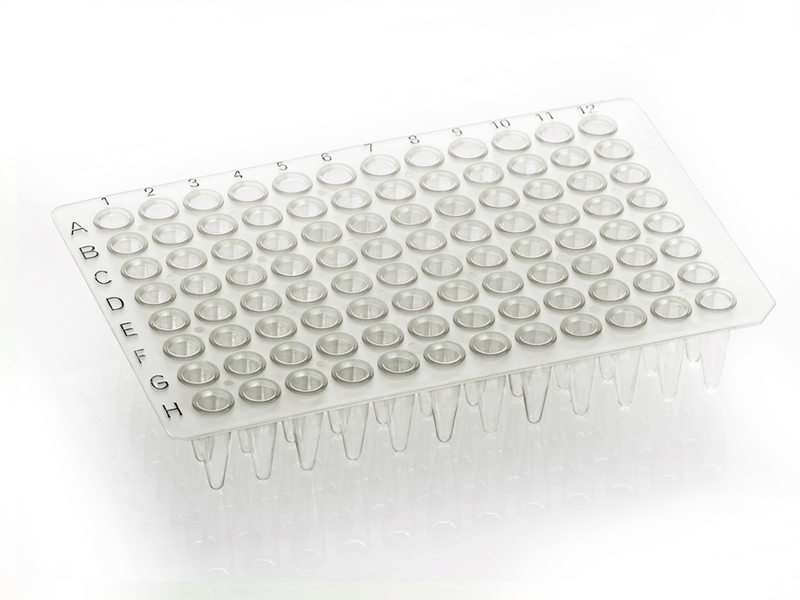

Super clear well version maximizes sample visibility

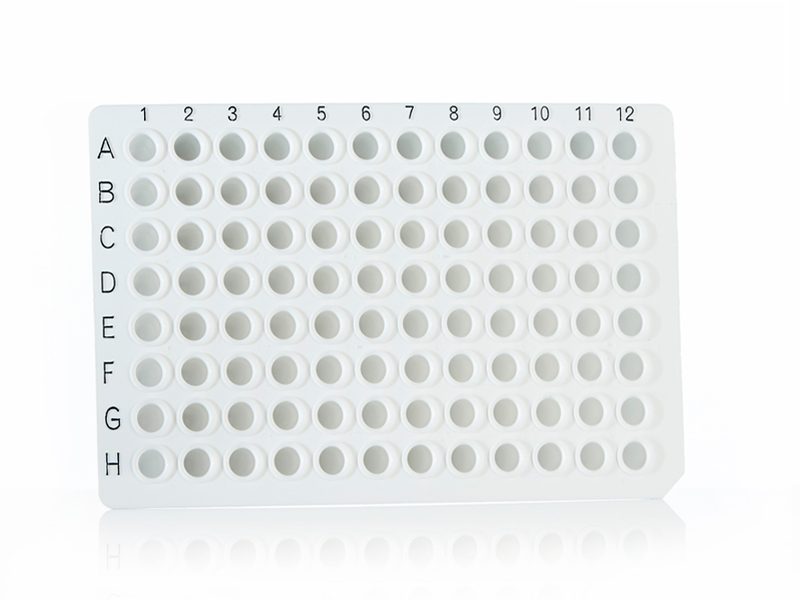

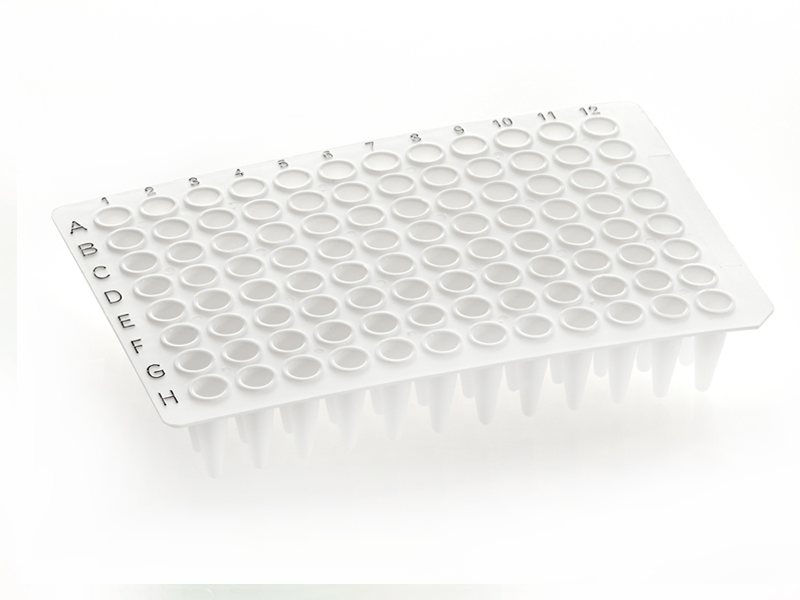

White plate ideal for qPCR, giving optimal signal-to-noise ratio for fluorescence-based assays

Specifications

	96 Well Non-Skirted PCR Plate
Plate length	120.00 ± 0.25mm
Plate width	80.00 ± 0.25mm
Plate height	20.20 ± 0.10mm
Well depth	20.20 ± 0.10mm
Well diameter	5.46 ± 0.10mm
Total well capacity	0.3ml (300µl)
Working volume	<0.2ml (200µl)
Distance to center of A1 from top edge	8.75 ± 0.25mm
Distance to center of A1 from left edge	10.75 ± 0.25mm
Pitch (distance between A1 and A2)	9.00mm

Product Documentation

96 Well Non-Skirted PCR Plate Technical Drawing

Plate-Instrument Compatibility Table

Compatibility

The 96 Well Non-Skirted PCR Plate is compatible with instruments (thermal cyclers, qPCR cyclers, or sequencers) from the following manufacturers:

ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC

Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp^® 2700/2720/9600/9700
qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™

AGILENT/STRATAGENE

Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™

ANALYTIK JENA/BIOMETRA

Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
qPCR Cyclers (96 well block): qTOWER³/G/touch | Toptical

BIOER TECHNOLOGIES

Thermal Cyclers (96 well block): Gene Touch 96

BIO-RAD

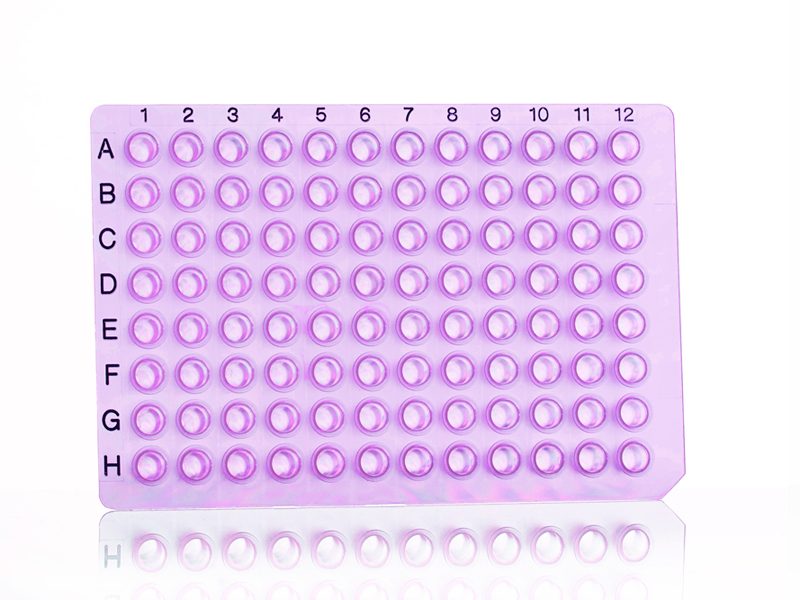

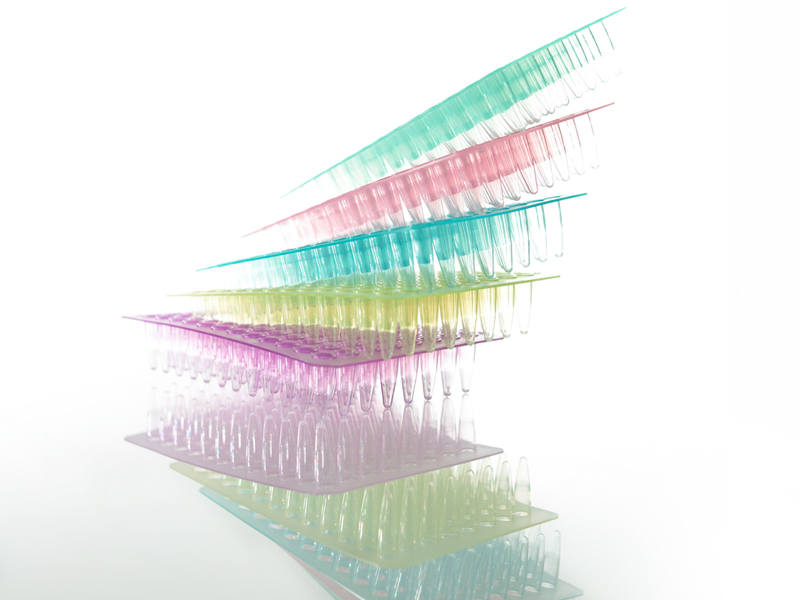

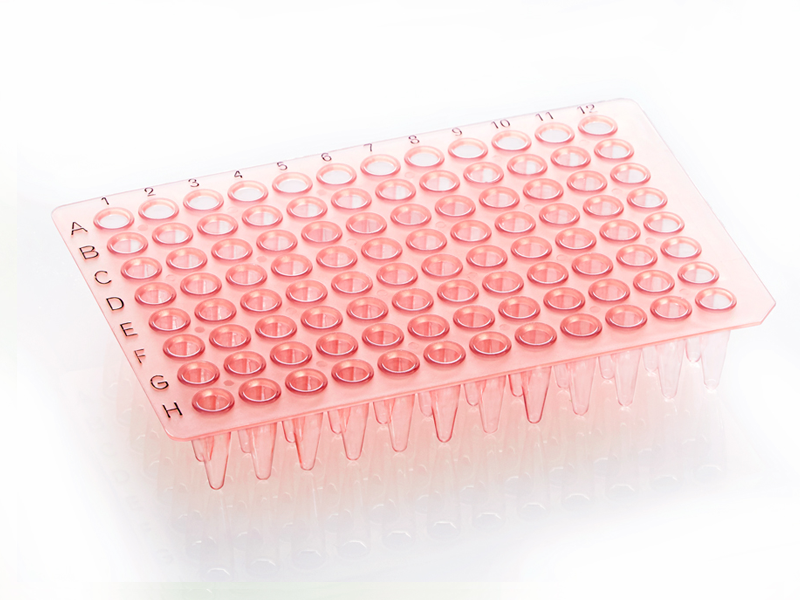

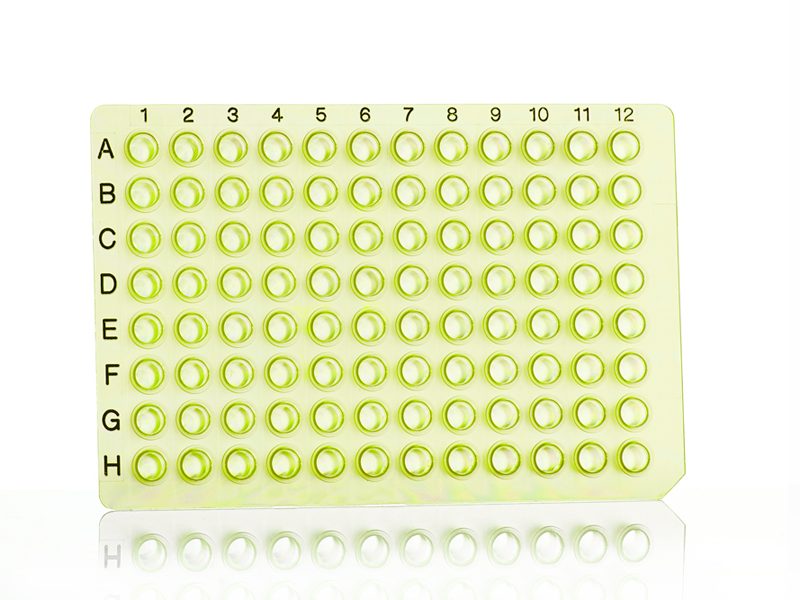

Available with the following color options: clear, blue, red, green, yellow, purple, and white
Super clear well version maximizes sample visibility
White plate ideal for qPCR, giving optimal signal-to-noise ratio for fluorescence-based assays

BIO-RAD MJ RESEARCH

Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
qPCR Cyclers (96 well block): Chromo4™

CORBETT RESEARCH

Thermal Cyclers (96 well block): (Qiagen) Palm Cycler

EPPENDORF

Thermal Cyclers (96 well block): MasterCycler^® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
qPCR Cyclers (96 well block): MasterCycler™ ep realplex

PEQLAB/VWR

Thermal Cyclers (96 well block): peqSTAR 96X

SENSOQUEST

Thermal Cyclers (96 well block): Labcycler

TAKARA

Thermal Cyclers (96 well block): Dice touch | Gradient

TECHNE

Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.
