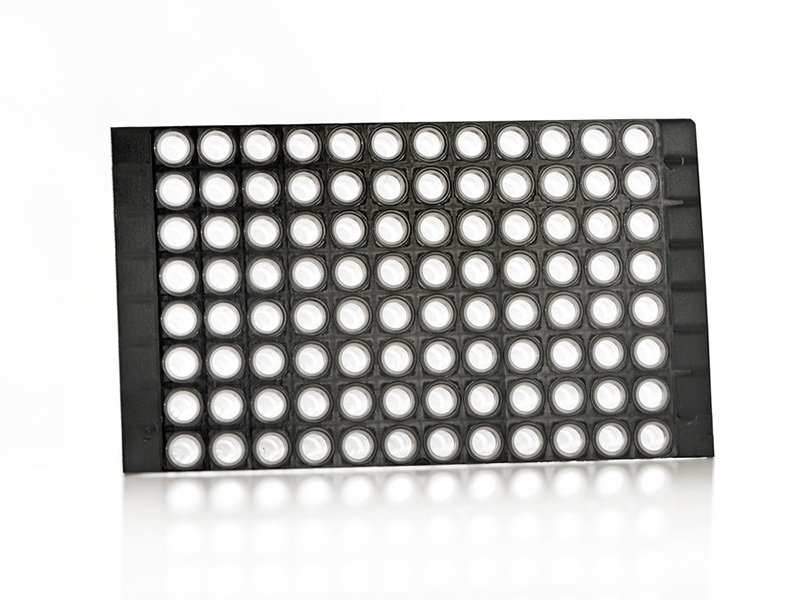

4ti-1400/X | FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile | Front

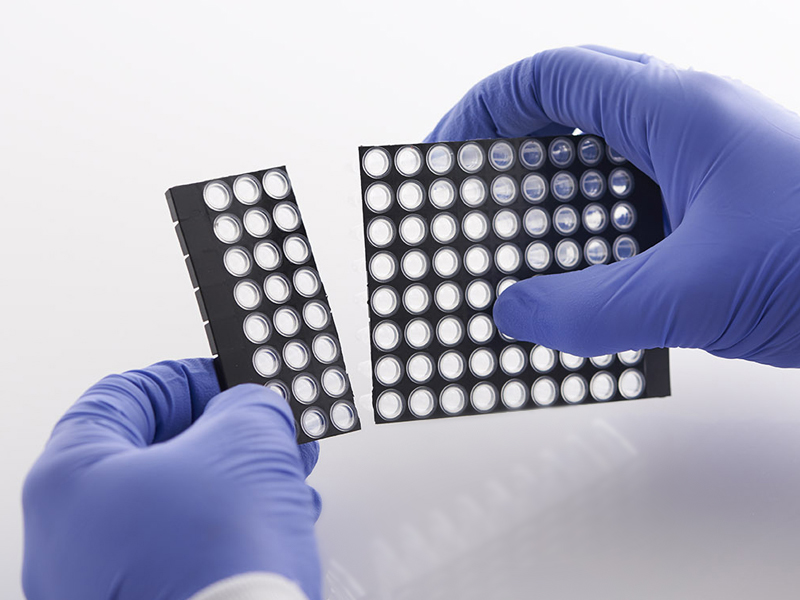

4ti-1400/X | FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile | Breaking Detail

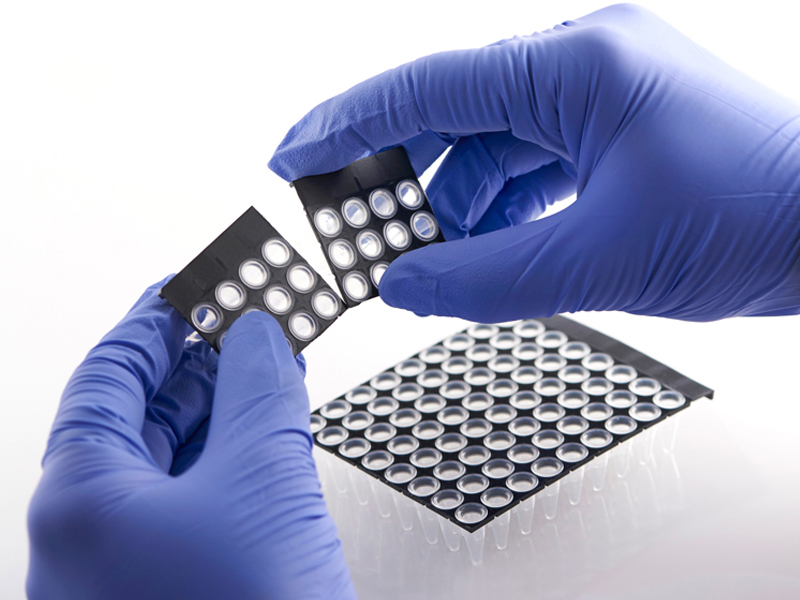

4ti-1400/X | FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile | Breaking Detail

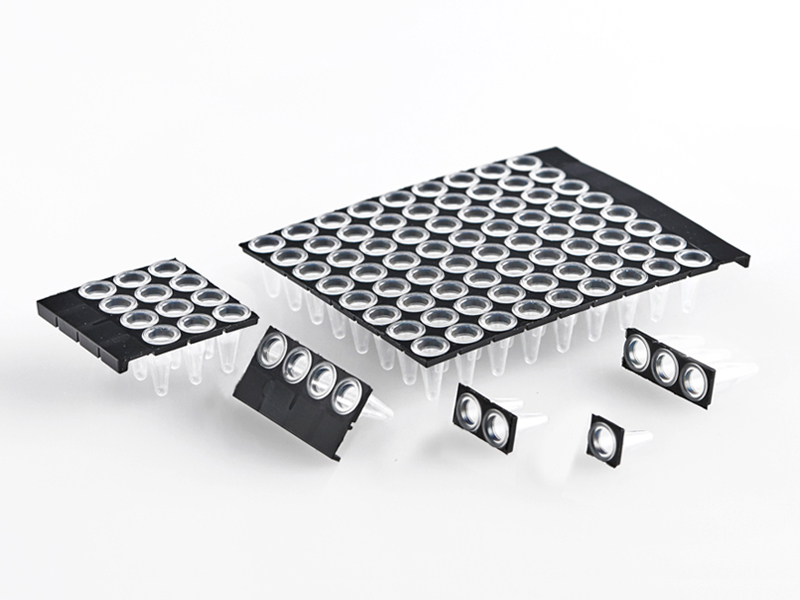

4ti-1400/X | FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile | Parts

FrameStar® Breakable Horizontally and Vertically PCR Plate, Low Profile

96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume: <100µl, total well capacity: 200µl

Place a Request

Jump to:

Overview
Key Features
Specifications
Compatibility
Ordering Information
Resources
Related Products
Place a Request

Overview

The FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile allow for the most flexible, efficient and cost-effective use of FrameStar PCR plates, ensuring not a single tube is wasted.

Our FrameStar Breakable Horizontally and Vertically PCR Plates, Low Profile utilize the 2-component design of the FrameStar range, which combines the advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling. Learn more about the features and benefits of the FrameStar range.

Key Features

Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- Low profile, 0.1ml wells, <100µl working volume, with a 200µl total well capacity when used with sealing options
Use
- Plates can be broken up in both 8-strip vertical and 12-strip horizontal directions, resulting in individual strips, part strips, or even individual tubes, giving you the highest range of flexibility
- Breaking a plate is more accurate, more convenient, and safer than cutting it with scissors, as it avoids damaging the sealing rings and contamination of the wells
- Plates can be filled, sealed and separated for storage, processing or distribution
- Easy to break at any temperature
- The plate can be adapted to individual pipetting schemes without the need to waste empty wells
- Separated strips or tubes can be used for the positive control to avoid contamination of the samples
- Compatible with all instruments that fit non-skirted, low profile plates
- NB: In some cases you may have to break off the end tabs for it to fit
- Compatible with standard multichannel pipettes
Options
- Available as a FrameStar Breakable Vertically PCR Plate; and FrameStar Breakable Vertically PCR Plate, Low Profile that snap into 8-tube strips or part plates
- Also available as a FrameStar Breakable Horizontally and Vertically PCR Plate

Specifications

Parameter	FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile
Plate length	125.00 ± 0.25mm
Plate width	72.0 ± 0.25mm
Plate height	15.60 ± 0.15mm
Well depth	15.10 ± 0.15mm
Well diameter	5.50 ± 0.10mm
Total well capacity	0.2ml (200µl)
Working volume	<0.1ml (100µl)
Distance to center of A1 from top edge	4.50 ± 0.25mm
Distance to center of A1 from left edge	8.50 ± 0.25mm
Pitch (distance between A1 and A2)	9.00mm

Compatibility

ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well FAST block): GeneAmp^® 9800 FAST | Verity FAST
- qPCR Cyclers (96 well standard block): StepOne
- qPCR Cyclers (96 well FAST block): StepOne Plus™ | 750 FAST | 7900 HT FAST | QuantStudio™ 5/6/7/12K | ViiA7™
AGILENT/STRATAGENE
- Thermal Cyclers (96 well block): Robocycler Gradient
- qPCR Cyclers (96 well block): AriaMx
BIO-RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000
- qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
- qPCR Cyclers (strips only): MiniOpticon
- qPCR Cyclers (96 well block): Opticon2™
EPPENDORF
- Thermal Cyclers (strips only): MasterCycler^® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
- qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TECHNE
- Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
- qPCR Cyclers (96 well block): Quantica

In some cases it may be required to break off the end tabs to allow for a perfect fit.

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number	Description
FrameStar Breakable Horizontally and Vertically PCR Plate, Low Profile 96 well rigid plate, vertically and horizontally scored, snaps easily into part plates, 8 well strips, 12 well strips, part strips or individual tubes; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume: <100µl, total well capacity: 200µl
4ti-1400/X	clear wells, black frame; 50 plates

Resources

Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Application Notes & Tech Notes

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs

FrameStar® Breakable Horizontally and Vertically PCR Plate, Low Profile Technical Drawing

Technical Drawings
