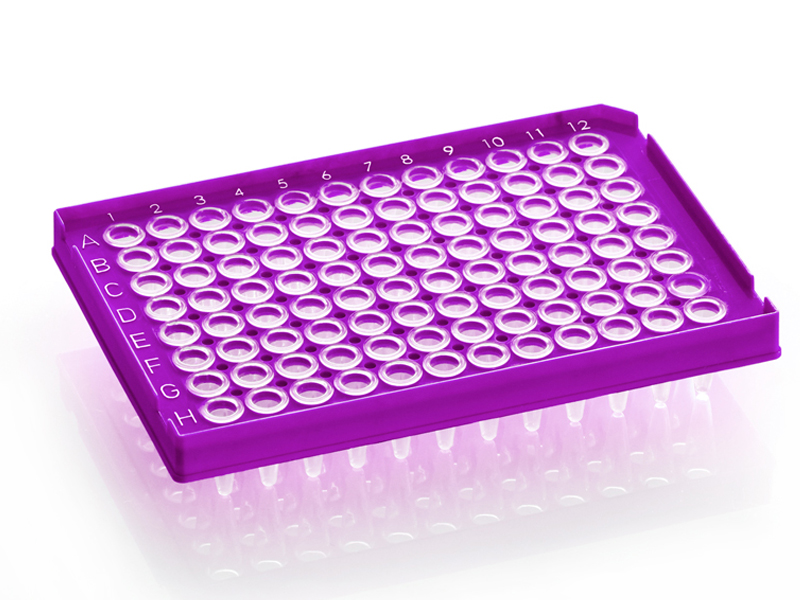

  • 4ti-0730 | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front
  • 4ti-0730 | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
  • 4ti-0730 | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail

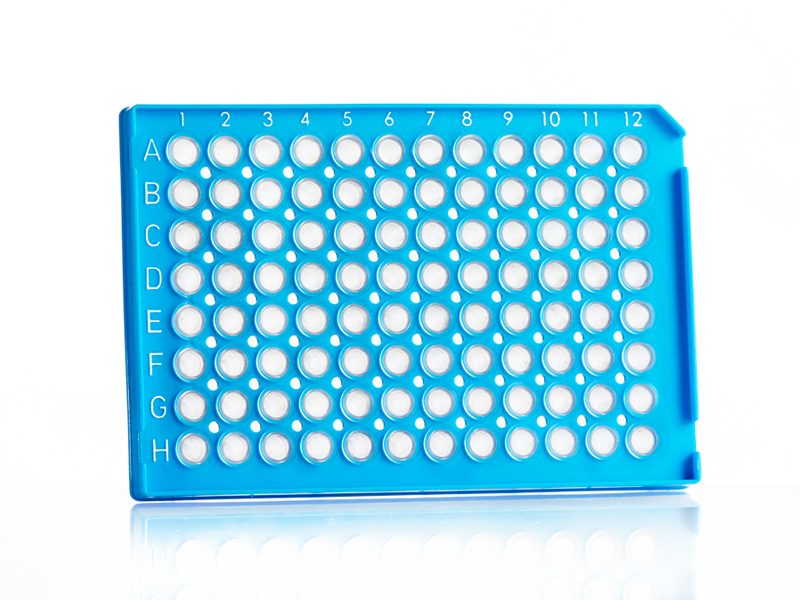

  • 4ti-0730/B | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front

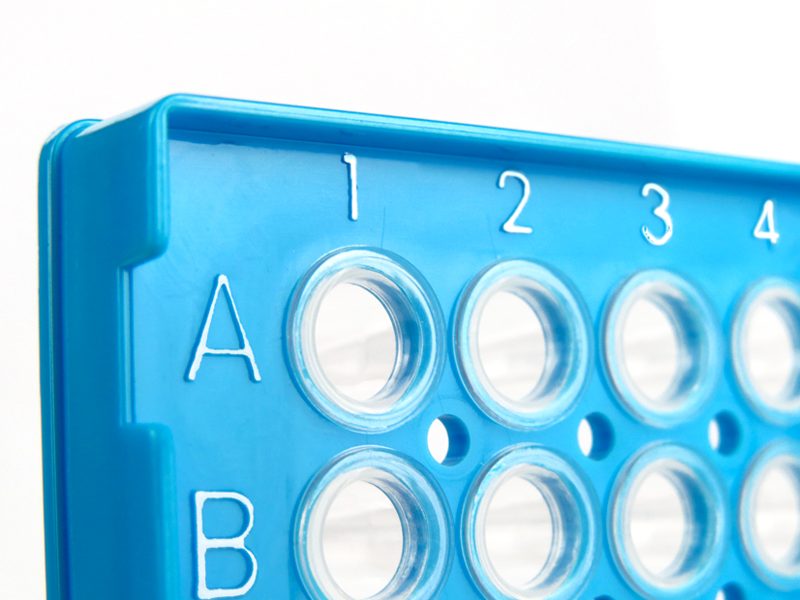

  • 4ti-0730/B | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
  • 4ti-0730/B | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail

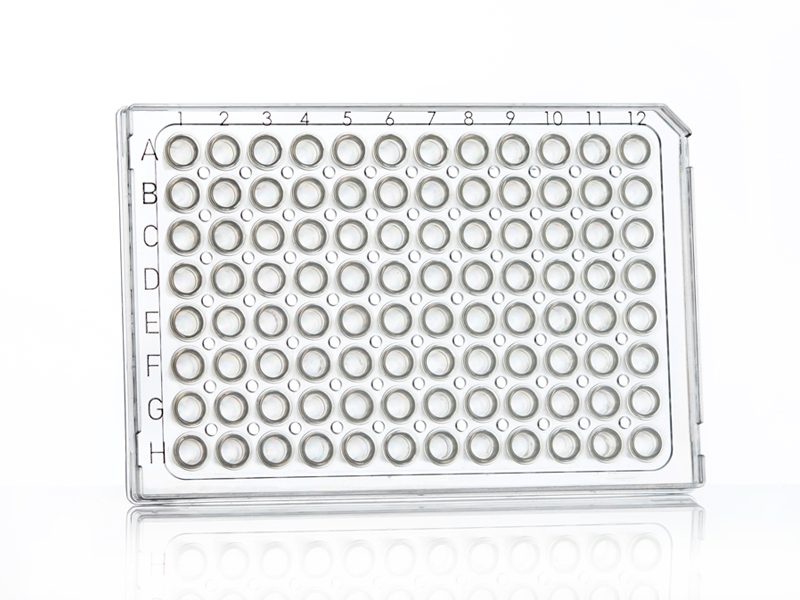

  • 4ti-0730/C | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front

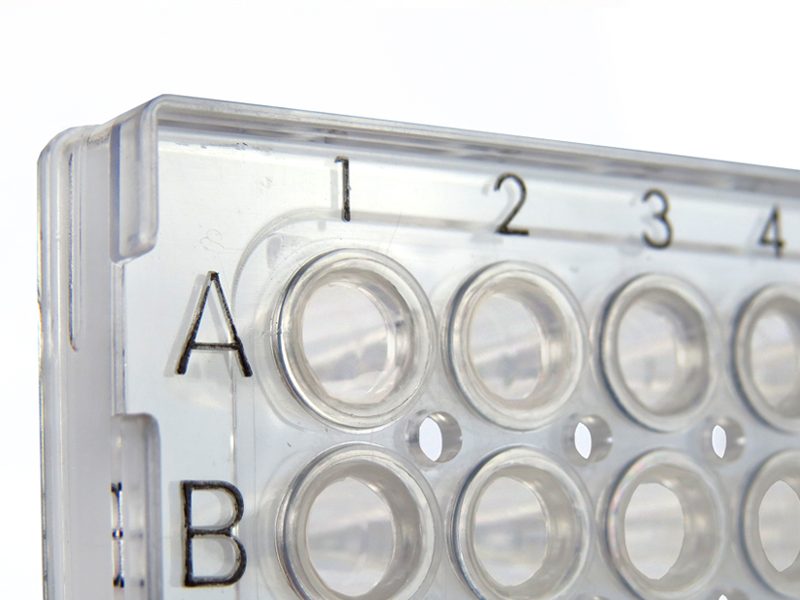

  • 4ti-0730/C | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style

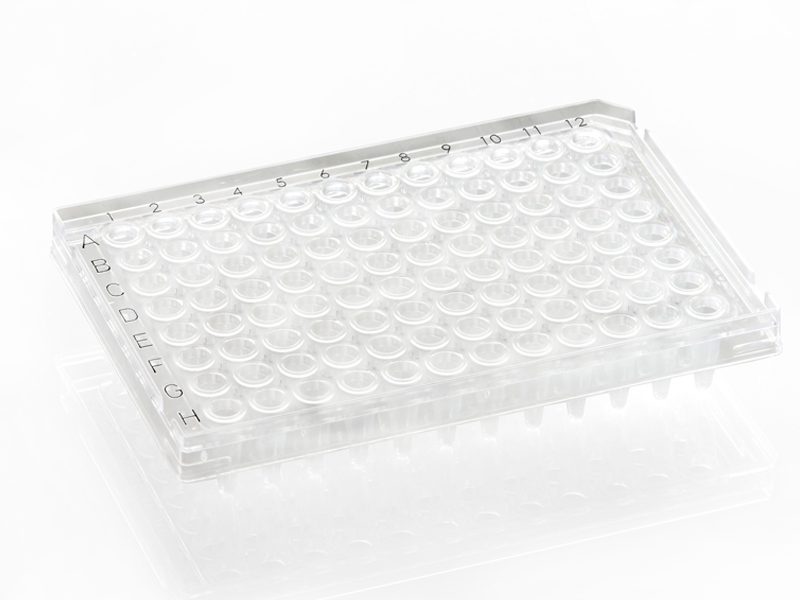

  • 4ti-0730/C | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail
  • 4ti-0730/G | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front
  • 4ti-0730/G | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
  • 4ti-0730/G | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail

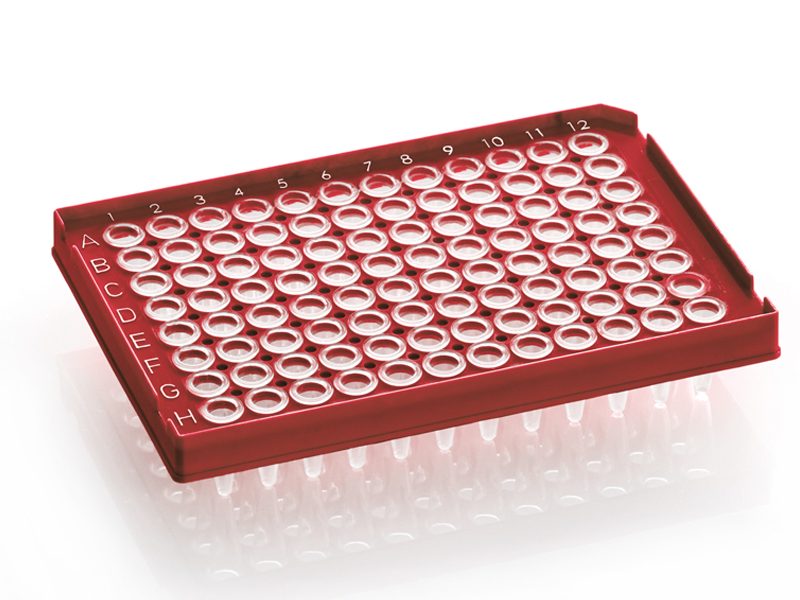

  • 4ti-0730/R | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front

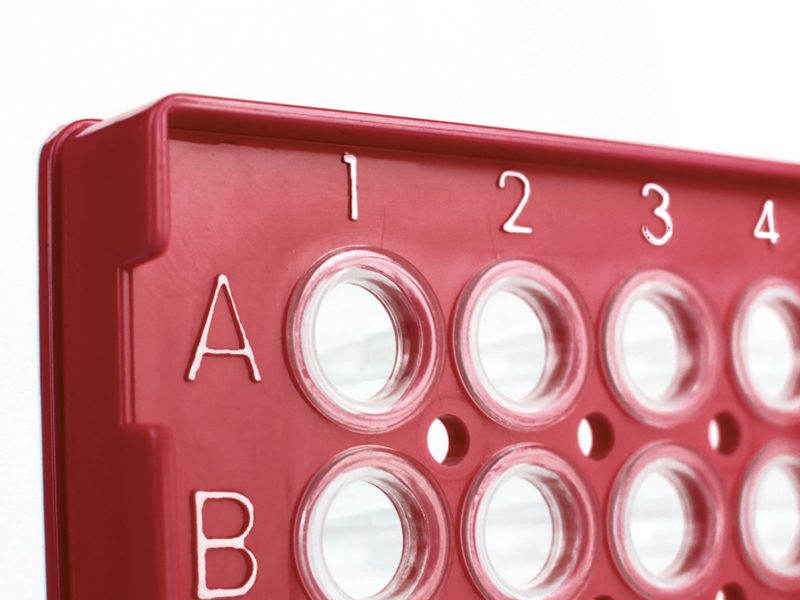

  • 4ti-0730/R | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
  • 4ti-0730/R | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail
  • 4ti-0730/X | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front
  • 4ti-0730/X | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
  • 4ti-0730/X | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Corner Detail
  • 4ti-0731 | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style | Front
  • 4ti-0731 | FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style

FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style

Standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI® instruments

  • Available barcoded on request
Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products

Overview

This ABI® Style PCR plate offers the benefits of our 2-component design to ABI® standard block users. This design combines the advantages of ultra-thin wall polypropylene tubes for optimum PCR results with a rigid polycarbonate skirt and deck for the highest thermal stability. Learn more about the features and benefits of the FrameStar range.

We recommend this semi-skirted plate for use with ABI® thermal cyclers and sequencers; it can be used directly with ABI® instruments with no adapters necessary. The only case where this is not true is with the ABI Fast Block thermal cyclers; in this case, using our FrameStar Fast Plate is recommended instead.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time quantitative PCR (RT-qPCR) results
    • <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity
  • Frame
    • Rigid polycarbonate frame for added mechanical stability
    • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
    • Improved seal integrity due to thermal stability of frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Ideal for use with ABI® thermal cyclers & sequencers
    • Recommended for low volume PCR
    • Compatible with standard multichannel pipettes
    • Ideal for use with robotic systems
  • Options
    • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
    • Ethylene oxide treated option available for forensic use; learn more about our ethylene oxide treated range
    • Available barcoded upon request; learn more about our barcoding options
    • Combi packs available (for 4ti-0730/C) with Optically Clear Windowed qPCR Seal (4ti-0565)

Specifications

Parameter FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
Plate length 124.26 ± 0.25mm
Plate width 83.97 ± 0.25mm
Plate height 23.20 ± 0.25mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 10.495 ± 0.25mm
Distance to center of A1 from left edge 12.63 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (96 well standard block): Verity | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
    • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
    • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
  • AGILENT/STRATAGENE
    • qPCR Cyclers (96 well block): Mx4000™
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
Standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI® instruments
4ti-0730 clear wells, purple frame; 50 plates
4ti-0730/B clear wells, blue frame; 50 plates
4ti-0730/C clear wells, clear frame; 50 plates
4ti-0730/C/10P clear wells, clear frame; 10 plates
4ti-0730/G clear wells, green frame; 50 plates
4ti-0730/R clear wells, red frame; 50 plates
4ti-0730/X clear wells, black frame; 50 plates
4ti-OX730C/SBC 4ti-0730/C for forensic use, ethylene oxide treated, single barcoded; 20 plates
Combi packs
4ti-0730/C/0565 4ti-0730/C + Optically Clear Windowed qPCR Seal (4ti-0565); 50 plates + 50 seals

Resources

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Application Notes & Tech Notes
Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Application Notes & Tech Notes
PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
 FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style Technical Drawing

FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0910/C | FrameStar 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style | Front

FrameStar® 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style

On

Low profile, 0.1ml polypropylene wells, polycarbonate frame with upstand, cut corner A1, working volume: <100µl, total well capacity: 200µl; designed for use on ABI® Fast Block cycler

4ti-0770/R | FrameStar 96 Well Semi-Skirted PCR Plate, ABI® Style | Front

FrameStar® 96 Well Semi-Skirted PCR Plate, ABI® Style

BUY ONLINE
On

Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner A12; working volume: <200µl, total well capacity: 300µl

4ti-0900/C | FrameStar 96 Well Semi-Skirted PCR Plate | Front

FrameStar® 96 Well Semi-Skirted PCR Plate

On

Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal semi-skirted plate designed for use on standard the

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0565 | Optically Clear Windowed qPCR Seal | Peeling Detail

Optically Clear Windowed qPCR Seal

Off

Adhesive film with 96 optically clear windows, peelable; suitable for qPCR and optical applications

4ti-0531 | Pierce Heat Seal | Piercing Detail

Pierce Heat Seal

BUY ONLINE
On

Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

Horizontal Scroll
On
Home
Facebook twitter youtube linkedin youtube
Copyright © 2022 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
