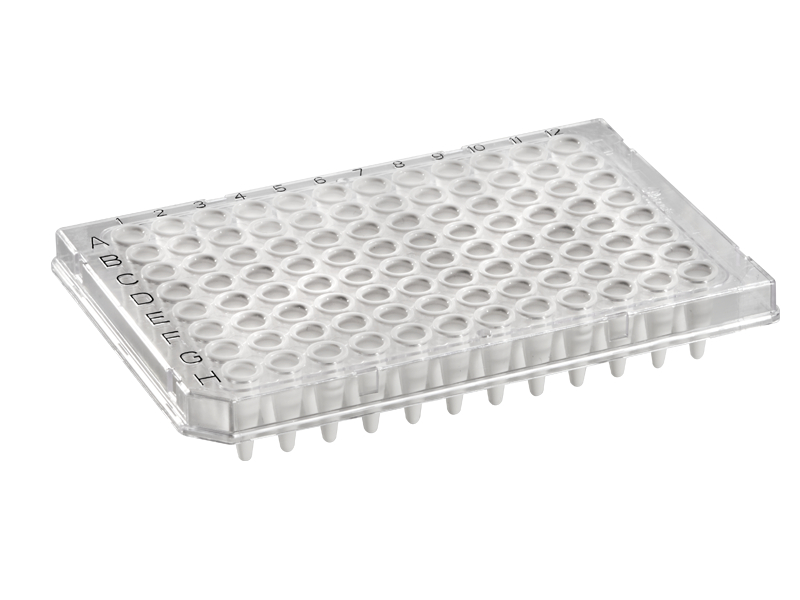

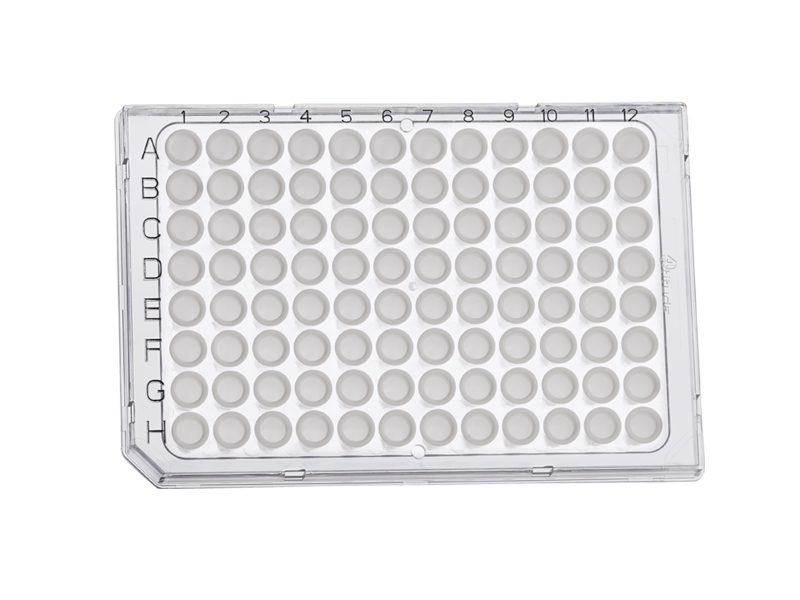

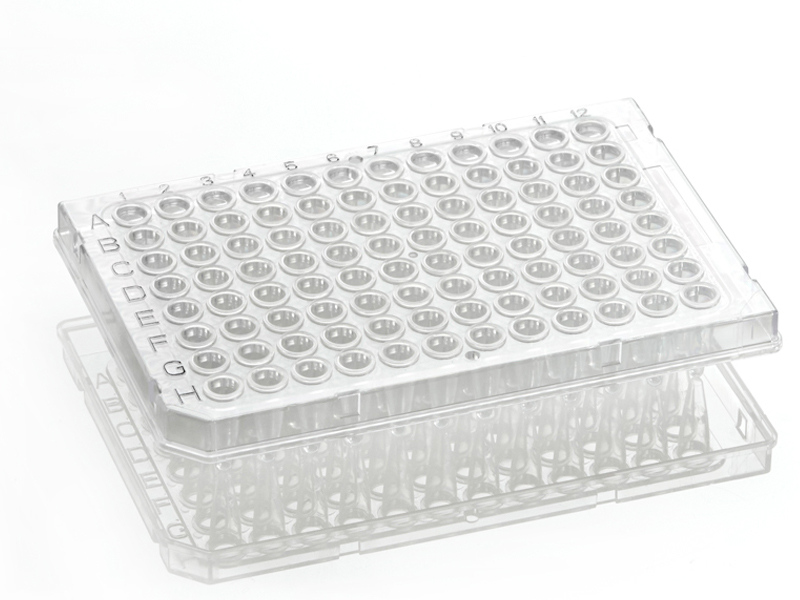

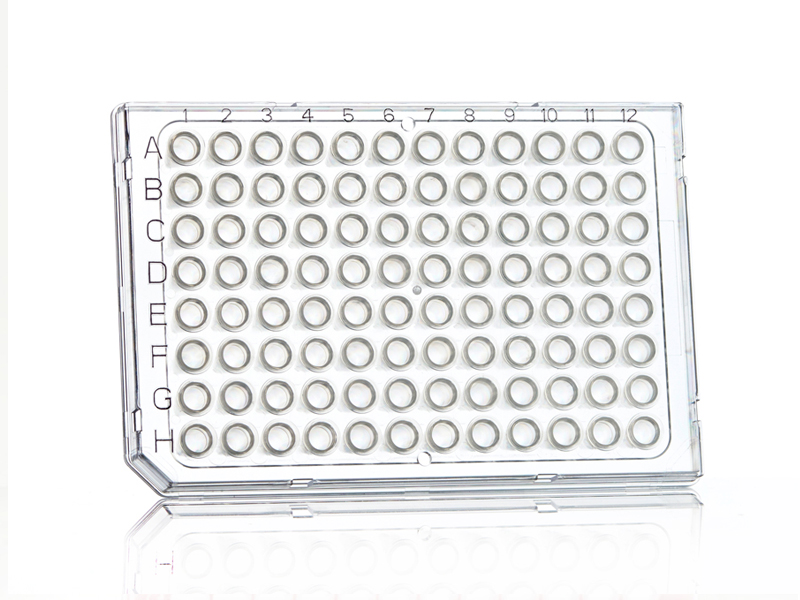

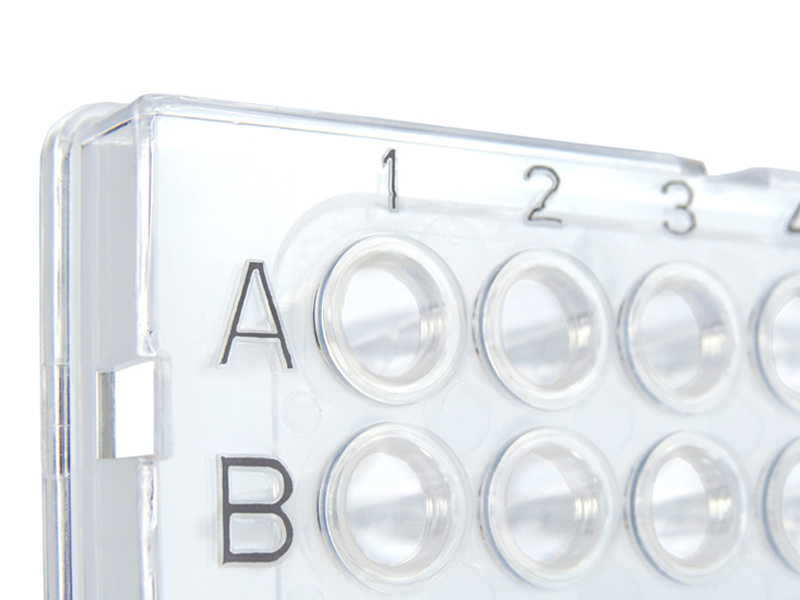

4ti-0900/C | FrameStar 96 Well Semi-Skirted PCR Plate | Front 4ti-0900/C | FrameStar 96 Well Semi-Skirted PCR Plate 4ti-0900/C | FrameStar 96 Well Semi-Skirted PCR Plate | Corner Detail 4ti-0901 | FrameStar 96 Well Semi-Skirted PCR Plate | Front 4ti-0901 | FrameStar 96 Well Semi-Skirted PCR Plate FrameStar® 96 Well Semi-Skirted PCR Plate Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal semi-skirted plate designed for use on standard thermal cyclers Available barcoded on request Place a Request Jump to: OverviewKey FeaturesSpecificationsCompatibilityOrdering InformationResourcesRelated ProductsPlace a Request Overview The rigid FrameStar 2-component design eliminates warping and distortion during PCR, making it ideal for use with robotic systems. The semi-skirted allows for labeling or barcoding for sample tracking. Learn more about the features and benefits of the FrameStar range. Key Features Quality Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen Wells Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity Frame Cut corner at H1 Rigid polycarbonate frame for added mechanical stability Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results Improved seal integrity due to thermal stability of frame Alphanumeric grid reference to aid well and sample identification Use Recommended for low volume PCR Compatible with standard multichannel pipettes Ideal for use with robotic systems Options Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays Available barcoded upon request; learn more about our barcoding options Similar plate with a cut corner at A12 for use with ABI® thermal cyclers and sequencers available: FrameStar 96 Well Semi-Skirted PCR Plate, ABI® Style Specifications Parameter FrameStar 96 Well Semi-Skirted PCR Plate Plate length 127.76 ± 0.25mm Plate width 85.48 ± 0.25mm Plate height 20.70 ± 0.25mm Well depth 20.20 ± 0.10mm Well diameter 5.46 ± 0.10mm Total well capacity 0.3ml (300µl) Working volume <0.2ml (200µl) Distance to center of A1 from top edge 11.24 ± 0.25mm Distance to center of A1 from left edge 14.38 ± 0.25mm Pitch (distance between A1 and A2) 9.00mm Compatibility AGILENT/STRATAGENE Thermal Cyclers (96 well block): Robocycler Gradient qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ Fragment Analyzer Systems: 5200 | 5300 | 5400 ANALYTIK JENA/BIOMETRA Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR) qPCR Cyclers (96 well block): qTOWER3 /G/touch | Toptical BIOER TECHNOLOGIES Thermal Cyclers (96 well block): Gene Touch 96 BIO-RAD Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100 qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5 BIO-RAD MJ RESEARCH Thermal Cyclers (96 well block): Personal | PCT100™/200™/220™/221™/225™/240™ qPCR Cyclers (96 well block): Chromo4™ CORBETT RESEARCH Thermal Cyclers (96 well block): (Qiagen) Palm Cycler EPPENDORF Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 qPCR Cyclers (96 well block): Mastercycler™ ep realplex PEQLAB/VWR Thermal Cyclers (96 well block): peqSTAR 96X SENSOQUEST Thermal Cyclers (96 well block): Labcycler TAKARA Thermal Cyclers (96 well block): Dice touch | Gradient TECHNE Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table. Ordering Information Use these part numbers to request a quote, a sample or to contact an expert: Part number Description FrameStar 96 Well Semi-Skirted PCR Plate Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl 4ti-0900/C clear wells, clear frame; 50 plates 4ti-0901 white wells, clear frame; 50 plates Resources Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480 Application Notes & Tech Notes Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium Application Notes & Tech Notes Azenta Life Sciences Sample Consumables and Instruments Catalog Catalogs PCR Plate-Instrument Compatibility Brochures & Sell Sheets FrameStar® 96 Well Semi-Skirted PCR Plate Technical Drawing Technical Drawings Horizontal Scroll On Related Products Similar Products See below for a selection of products in the same range: FrameStar® 96 Well Semi-Skirted PCR Plate, ABI® Style BUY ONLINE On Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner A12; working volume: <200µl, total well capacity: 300µl FrameStar® 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style On Low profile, 0.1ml polypropylene wells, polycarbonate frame with upstand, cut corner A1, working volume: <100µl, total well capacity: 200µl; designed for use on ABI® Fast Block cycler FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style On Standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI® instruments Horizontal Scroll On Compatible Products See below for a selection of compatible products: Automated Roll Heat Sealer (formerly a4S) BUY ONLINE On The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA) BUY ONLINE On Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights Optically Clear Windowed qPCR Seal Off Adhesive film with 96 optically clear windows, peelable; suitable for qPCR and optical applications Pierce Heat Seal BUY ONLINE On Pierceable heat sealing foil, high solvent resistance, resealable, suitable for PCR/storage/shipping PCR Seal BUY ONLINE On Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips Horizontal Scroll On Place a Request Request a Quote, Free Samples, or an Expert Consultation Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.
