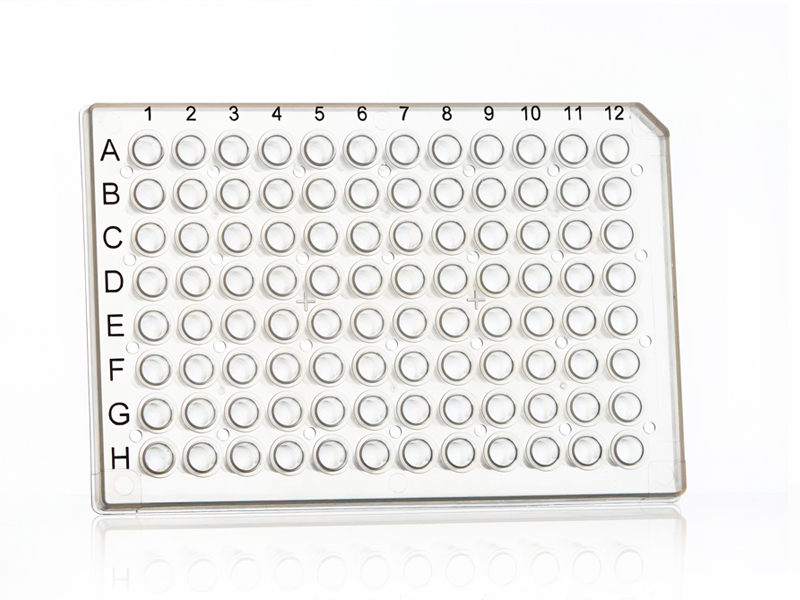

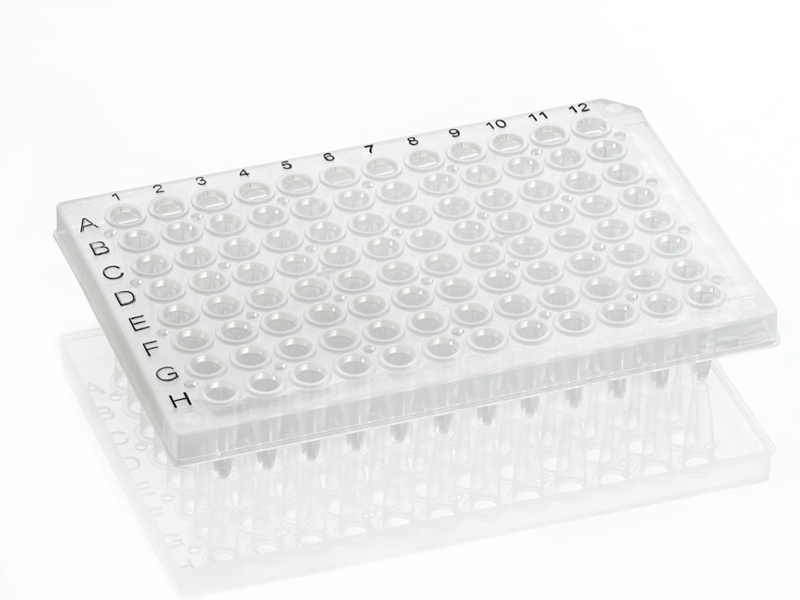

96 Well Semi-Skirted PCR Plate

96 well semi-skirted universal plates with standard profile wells, designed for use on standard thermal cyclers.

Virgin polypropylene; cut corner A12
<200µl working volume, 300µl total well capacity
Available barcoded on request

Request Quote, Samples, Or Expert Consultation

Not the Right Plate? Try Our PCR Plate Selector

Jump To:

Details | Specifications | Compatibility | Order Info | Resources

Product Details

Key Features

Quality

Subject to a strict QC procedure which includes a visual check and leak testing of every tube
Molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility

Wells

Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation

Frame

Alphanumeric grid reference to aid well and sample identification

Use

Compatible with universal standard block thermal cyclers and sequencers
Compatible with standard multichannel pipettes

Options

Super clear wells maximize sample visibility

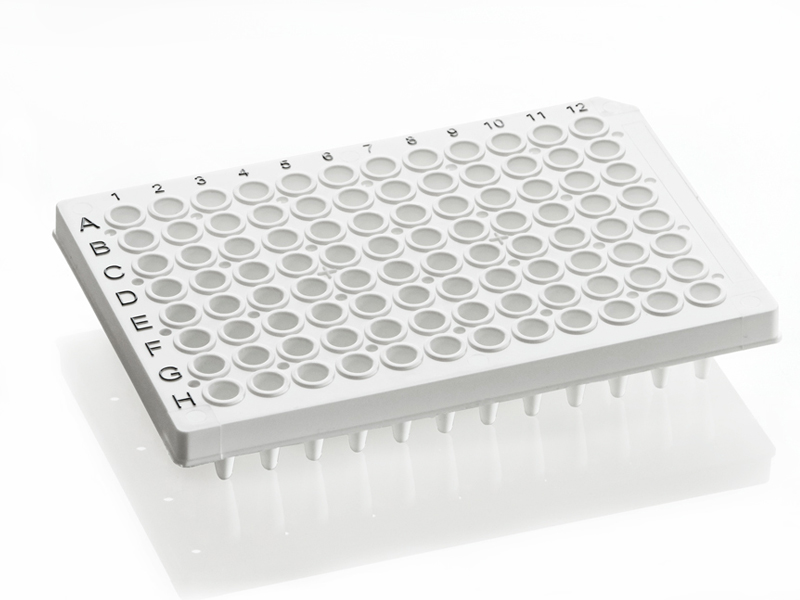

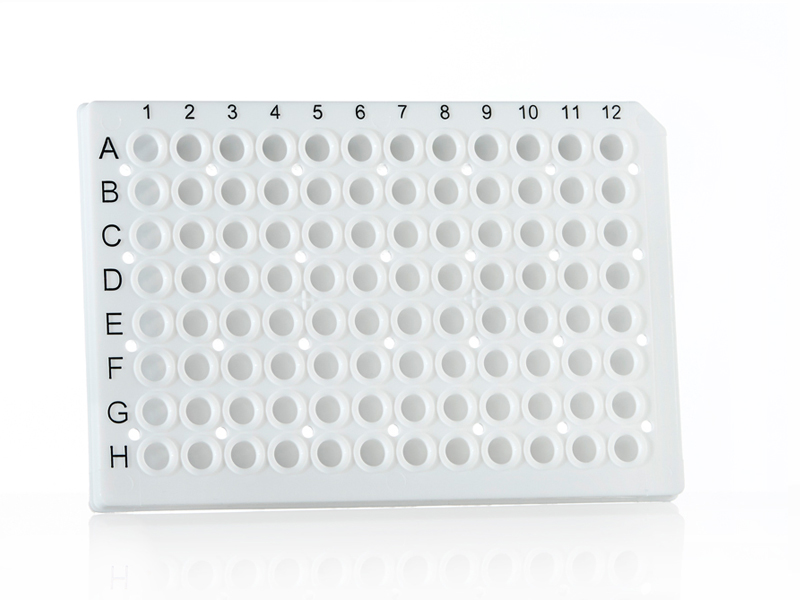

Also available as a white plate, ideal for qPCR, giving optimal signal-to-noise ratio for fluorescence-based assays
Available barcoded upon request; learn more about our barcoding options
Available as a FrameStar^® 2-component PCR plate with the same dimensions, but with the added benefits of a polycarbonate frame that eliminates plate distortion and warping during the PCR process, leading to less evaporation and sample loss

Specifications

	96 Well Semi-Skirted PCR Plate
Plate length	124.42 ± 0.25mm
Plate width	84.02 ± 0.25mm
Plate height	20.70 ± 0.25mm
Well depth	20.20 ± 0.10mm
Well diameter	5.46 ± 0.10mm
Total well capacity	0.3ml (300µl)
Working volume	<0.2ml (200µl)
Distance to center of A1 from top edge	10.51 ± 0.10mm
Distance to center of A1 from left edge	12.71 ± 0.10mm
Pitch (distance between A1 and A2)	9.00mm

Product Documentation

96 Well Semi-Skirted PCR Plate Technical Drawing

Plate-Instrument Compatibility Table

Compatibility

The 96 Well Semi-Skirted PCR Plate is compatible with instruments (thermal cyclers, qPCR cyclers, or sequencers) from the following manufacturers:

ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC

Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp^® 2700/2720/9600/9700
qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
Sequencers (96 well standard block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL

AGILENT/STRATAGENE

qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™

ANALYTIK JENA/BIOMETRA

Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
qPCR Cyclers (96 well block): qTOWER³/G/touch | Toptical

BIOER TECHNOLOGIES

Thermal Cyclers (96 well block): Gene Touch 96

BIO-RAD

Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
qPCR Cyclers (96 well block): MyiQ™ | iCycler IQ™/IQ 4/IQ 5

BIO-RAD MJ RESEARCH

Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
qPCR Cyclers (96 well block): Chromo4™

CORBETT RESEARCH

Thermal Cyclers (96 well block): (Qiagen) Palm Cycler

EPPENDORF

Thermal Cyclers (96 well block): MasterCycler^® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
qPCR Cyclers (96 well block): MasterCycler™ ep realplex

PEQLAB/VWR

Thermal Cyclers (96 well block): peqSTAR 96X

SENSOQUEST

Thermal Cyclers (96 well block): Labcycler

TAKARA

Thermal Cyclers (96 well block): Dice touch | Gradient

TECHNE

Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

96 Well Semi-Skirted PCR Plate Standard profile, 0.2ml wells, polypropylene, cut corner A12, working volume: <200µl, total well capacity: 300µl; universal semi-skirted plate, designed for use on standard thermal cyclers
4ti-0760	clear; 50 plates
4ti-0761	white; 50 plates

Cap Strips
4ti-0751	Strips of 8 Flat Optical Caps; 300 strips
4ti-0752	Strips of 8 Domed Caps; 300 strips

Microplate Coding Services

Plates available barcoded on request. For standard barcoding, add /SBC (for single barcode), /DBC (for double barcode), /TBC (for triple barcode), and /QBC (for quadruple barcode) to the part number. We also offer custom linear barcoding, and 2D coding.

Microplate Coding Services
