FrameStar® 96 Well Non-Skirted PCR Plate, Low Profile

96 well non-skirted universal plates, designed for use on all major thermal cyclers. Low profile wells, especially recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR.

  • PP wells, PC frame; cut corner H1
  • <100µl working volume, 200µl total well capacity
Request Quote, Samples, Or Expert Consultation
Not the Right Plate? Try Our PCR Plate Selector

Jump To:

Details | Specifications | Compatibility | Order Info | Resources

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
  • Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
  • Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Recommended for low volume PCR
  • Compatible with standard multichannel pipettes
Options
  • Available with the following frame color options for the clear well variety: purple, and clear
  • Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
Specifications
  FrameStar 96 Well Non-Skirted PCR Plate, Low Profile
Plate length 120.00 ± 0.25mm
Plate width 80.00 ± 0.25mm
Plate height 15.60 ± 0.25mm
Well depth 15.10 ± 0.25mm
Well diameter 5.50 ± 0.10mm
Total well capacity 0.2ml (200µl)
Working volume <0.1ml (100µl)
Distance to center of A1 from top edge 8.50 ± 0.25mm
Distance to center of A1 from left edge 10.50 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Product Documentation

FrameStar 96 Well Non-Skirted PCR Plate, Low Profile Technical Drawing

Plate-Instrument Compatibility Table

Compatibility

The FrameStar 96 Well Non-Skirted PCR Plate, Low Profile is compatible with instruments (thermal cyclers, qPCR cyclers, or sequencers) from the following manufacturers:

AGILENT/STRATAGENE
  • qPCR Cyclers (96 well block): AriaMx
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (96 well block): Trobot 96 | SpeedCycler 2 (SP, SPR)
BIO-RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PTC100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
  • qPCR Cyclers (96 well block): Mastercycler™ ep realplex
GE HEALTHCARE/AMERSHAM
  • Thermal Cyclers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
PEQLAB/VWR
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycle
    TECHNE
    • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
    • qPCR Cyclers (96 well block): Quantica

    For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

    Ordering Information

    Part Numbers

    Use these part numbers to request a quote, free samples, or to contact an expert:

    FrameStar 96 Well Non-Skirted PCR Plate, Low Profile
    Low profile, 0.1ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 200µl; universal non-skirted, low profile plate designed for use on all major thermal cyclers

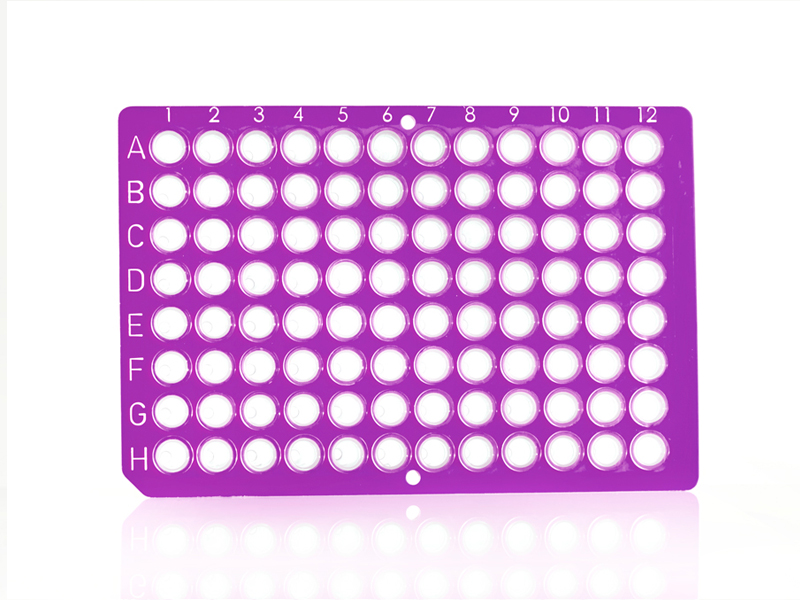

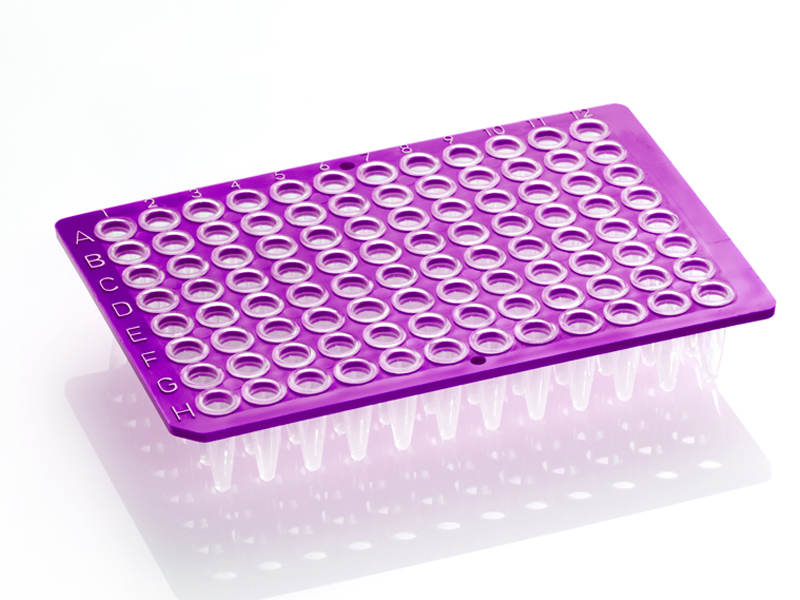

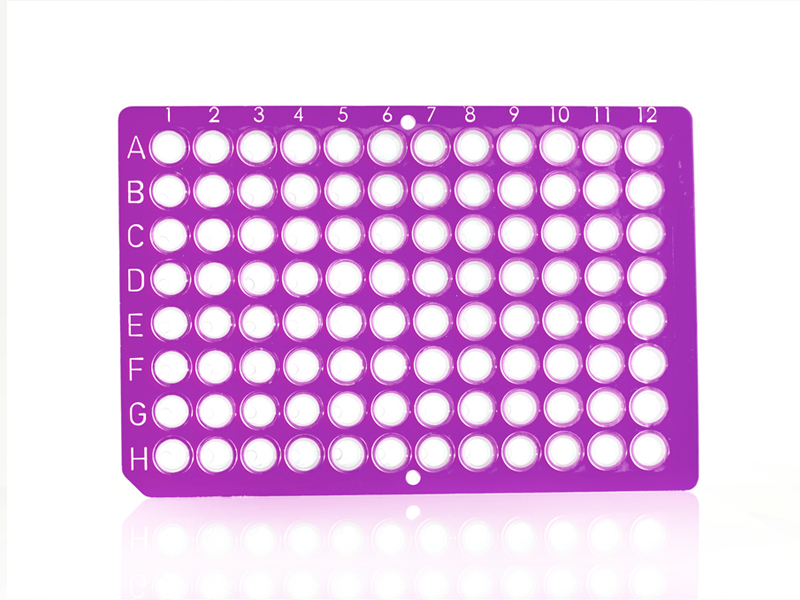

    4ti-0720 clear wells, purple frame; 50 plates

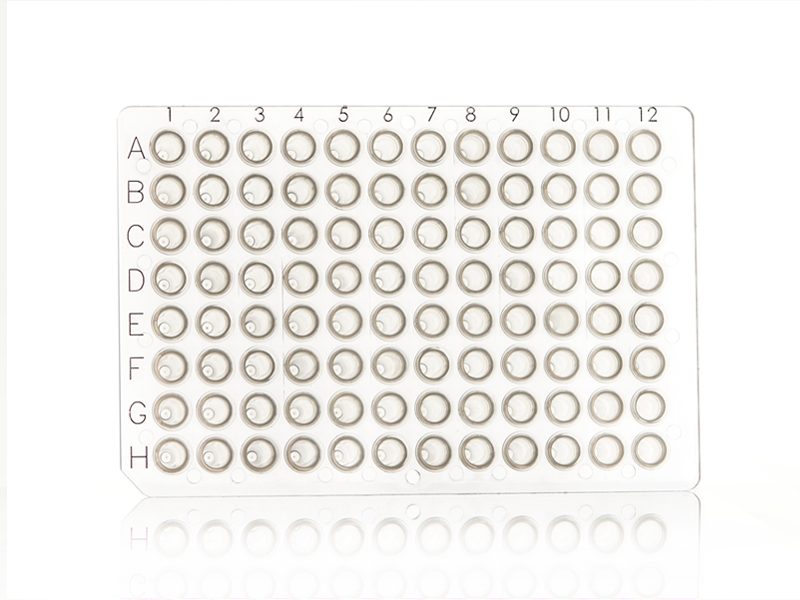

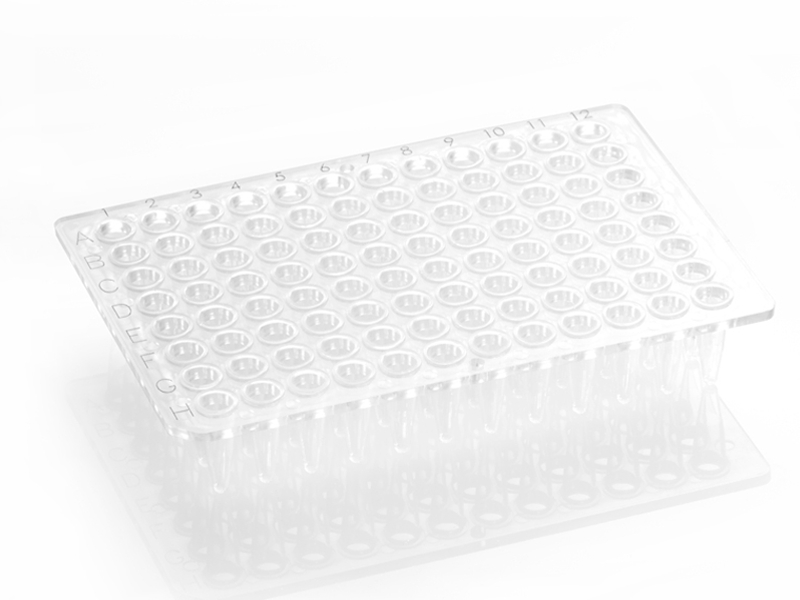

    4ti-0720/C clear wells, clear frame; 50 plates

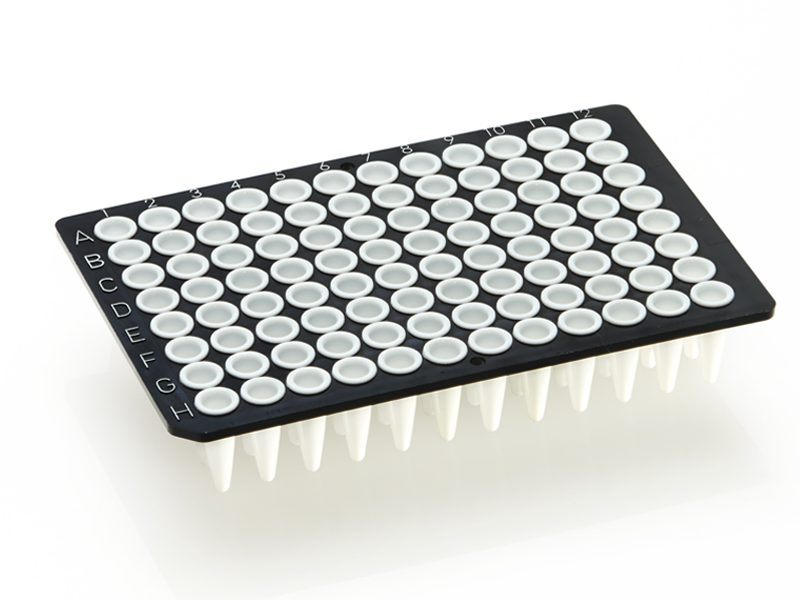

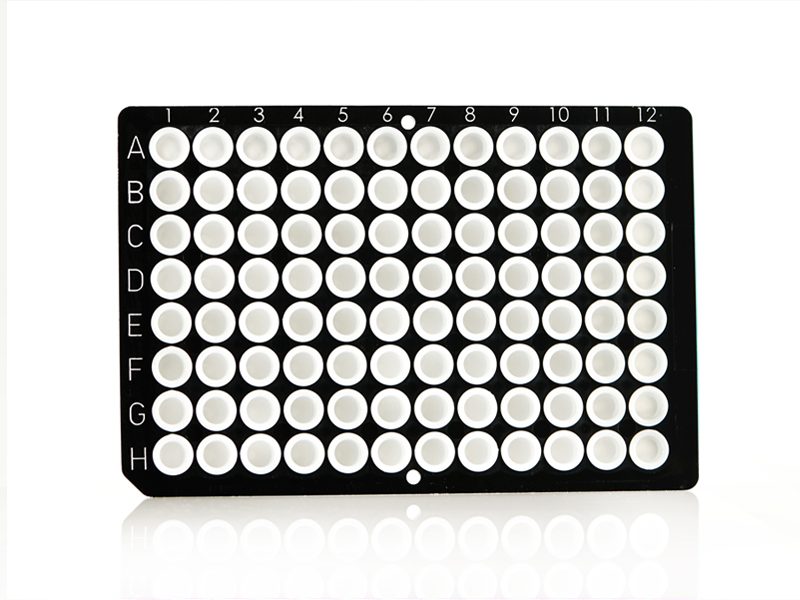

    4ti-0721 white wells, black frame; 50 plates

    Microplate Coding Services

    Plates available barcoded on request. For standard barcoding, add /SBC (for single barcode), /DBC (for double barcode), /TBC (for triple barcode), and /QBC (for quadruple barcode) to the part number. We also offer custom linear barcoding, and 2D coding.

    Microplate Coding Services
