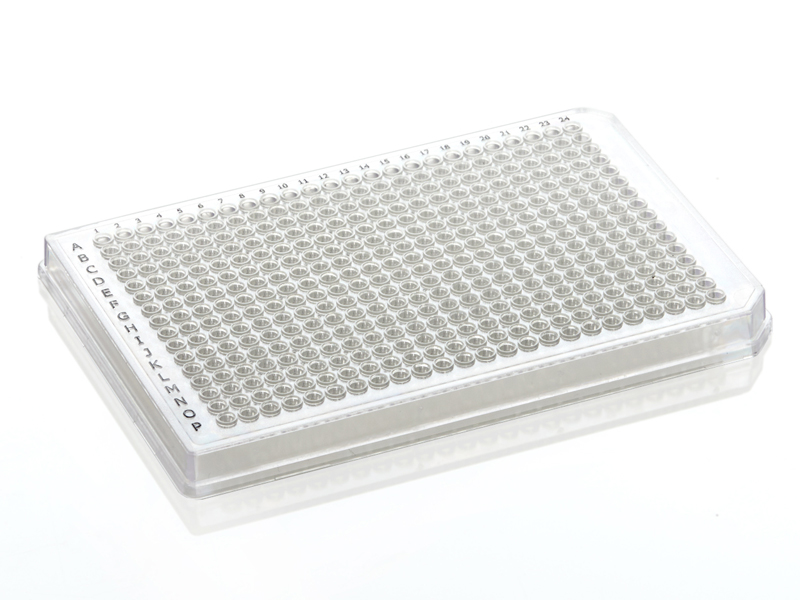

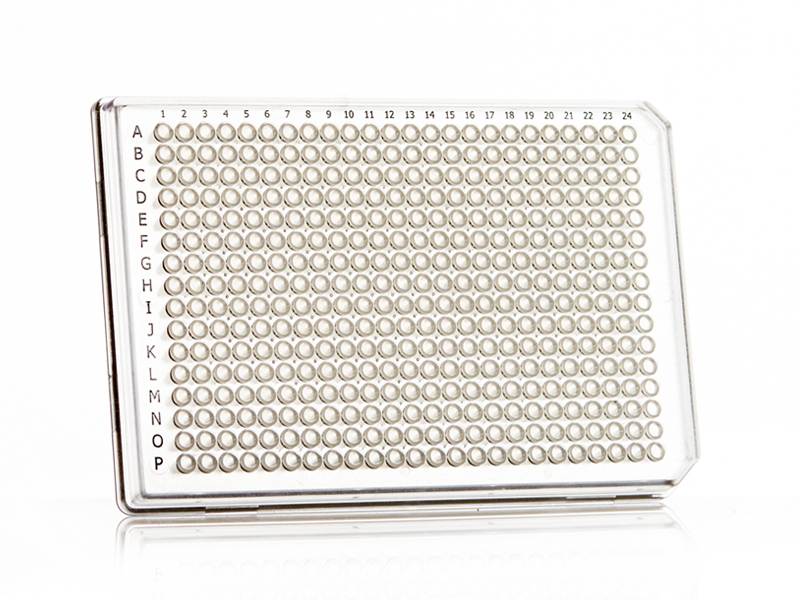

  • 4ti-0380/C | FrameStar 384 Well Skirted PCR Plate, Roche Style | Front
  • 4ti-0380/C | FrameStar 384 Well Skirted PCR Plate, Roche Style

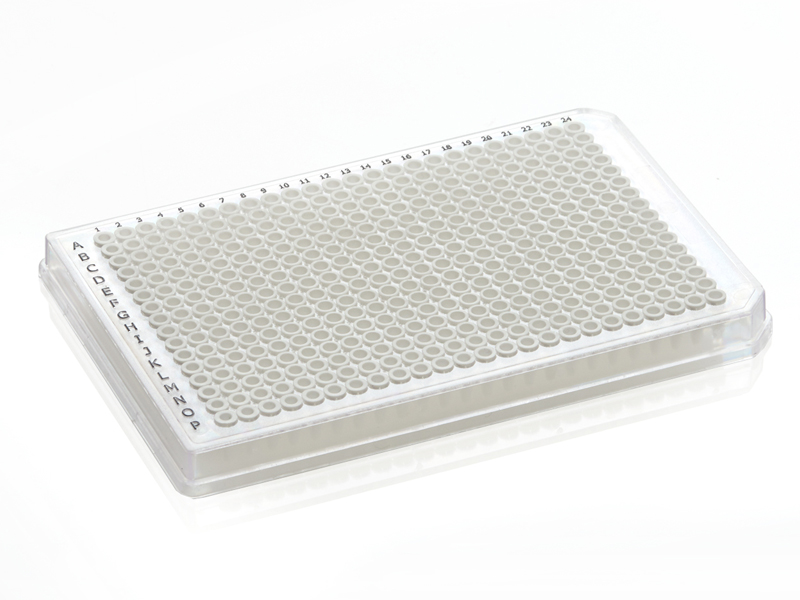

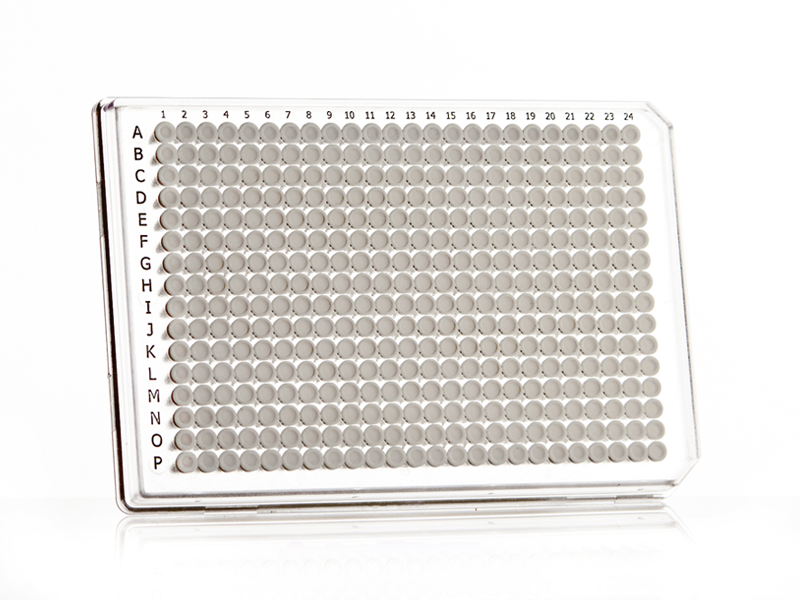

  • 4ti-0381 | FrameStar 384 Well Skirted PCR Plate, Roche Style | Front
  • 4ti-0381 | FrameStar 384 Well Skirted PCR Plate, Roche Style

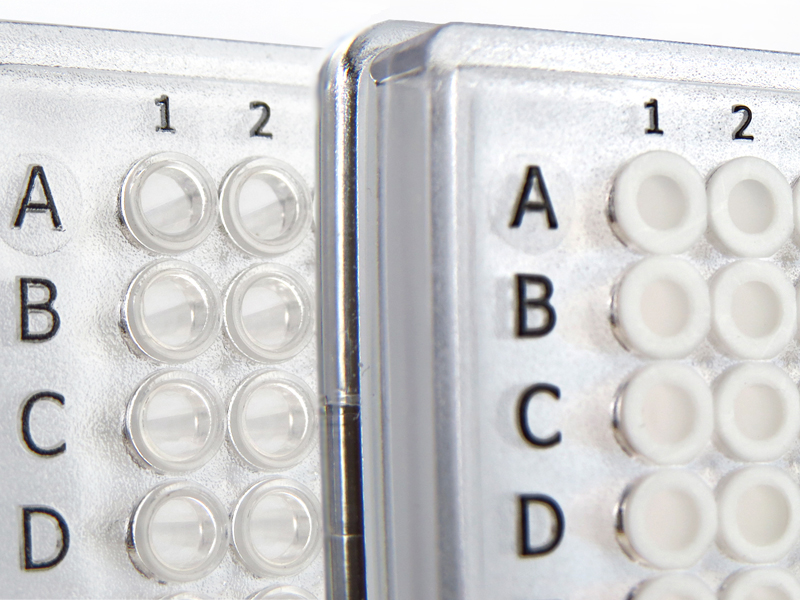

  • 4ti-0380/C & 4ti-0381 | FrameStar 384 Well Skirted PCR Plates, Roche Style | Corner Comparison Detail

FrameStar® 384 Well Skirted PCR Plate, Roche Style

Polypropylene wells, polycarbonate frame, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well block

  • Available barcoded on request

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

The dimensions of these plates are designed to achieve optimized assay conditions on the Roche LightCycler® 480, and are in a 384 well format for reaction volumes of up to 30µl. The rigid two-component design eliminates warping and distortion during the PCR process, making it ideal for use with robotic systems.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
    • Stackable
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • <30µl working volume, 55µl total well capacity
  • Frame
    • Rigid polycarbonate frame for added mechanical stability
    • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
    • Improved seal integrity due to thermal stability of frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Compatible with Roche LightCycler® 480
    • Recommended for low volume PCR
    • Compatible with standard multichannel pipettes
    • Ideal for use with robotic systems
  • Options
    • Available as a clear polycarbonate frame with clear polypropylene wells
    • Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
    • Available barcoded upon request; learn more about our barcoding options
    • Combi packs available with qPCR Seal (4ti-0560)

Specifications

Parameter FrameStar 384 Well Skirted PCR Plate, Roche Style
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 10.60 ± 0.25mm
Well depth 9.60 ± 0.10mm
Well diameter 3.00 ± 0.10mm
Total well capacity 55µl
Working volume <30µl
Distance to center of A1 from top edge 8.99 ± 0.25mm
Distance to center of A1 from left edge 12.13 ± 0.25mm
Pitch (distance between A1 and A2) 4.50mm

Compatibility

  • ROCHE
    • qPCR Cyclers (384 well block): LightCycler® 480

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
FrameStar 384 Well Skirted PCR Plate, Roche Style
Polypropylene wells, polycarbonate frame, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well block
4ti-0380/C clear wells, clear frame; 50 plates
4ti-0381
BUY ONLINE*
white wells, clear frame; 50 plates
Combi packs
4ti-0382 4ti-0381 + qPCR Seal (4ti-0560); 50 plates + 50 seals
4ti-0383 4ti-0380/C + qPCR Seal (4ti-0560); 50 plates + 50 seals

*Online availability to US only
