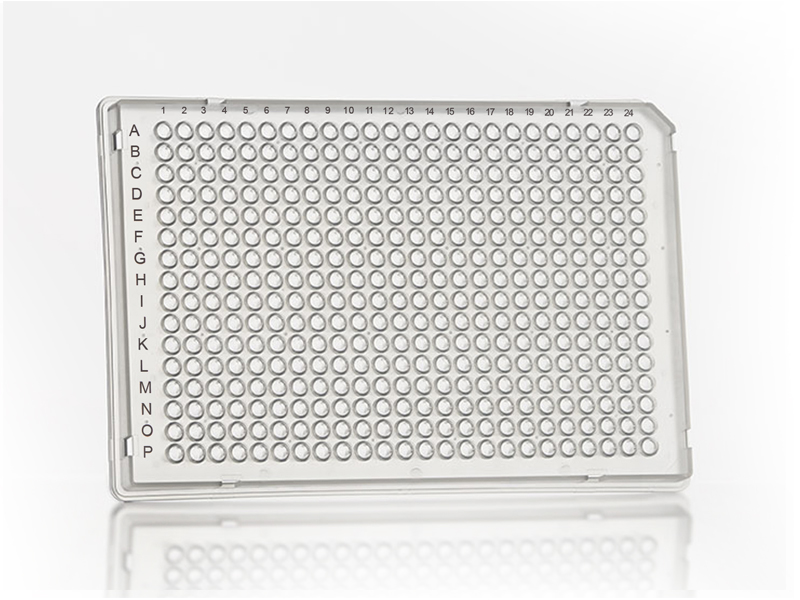

  • 4ti-1384 | 384 Well Skirted PCR Plate | Front

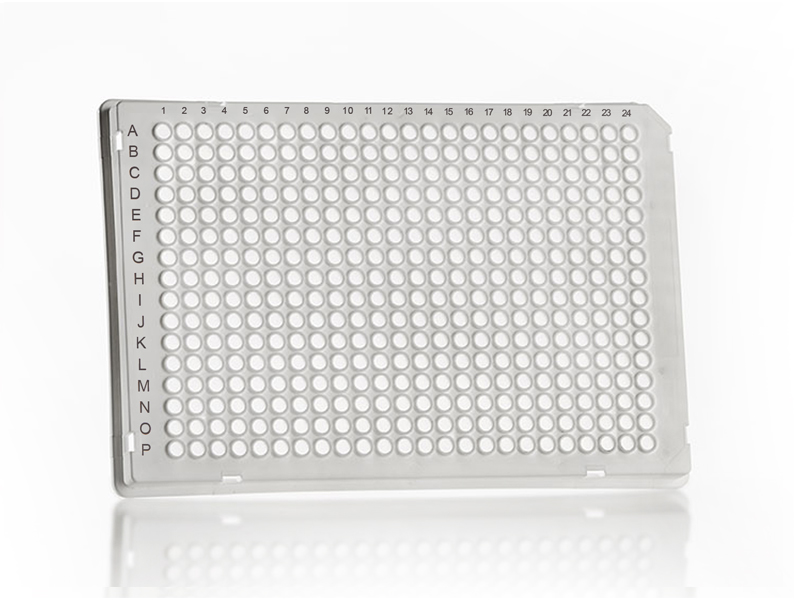

  • 4ti-1385 | 384 Well Skirted PCR Plate | Front

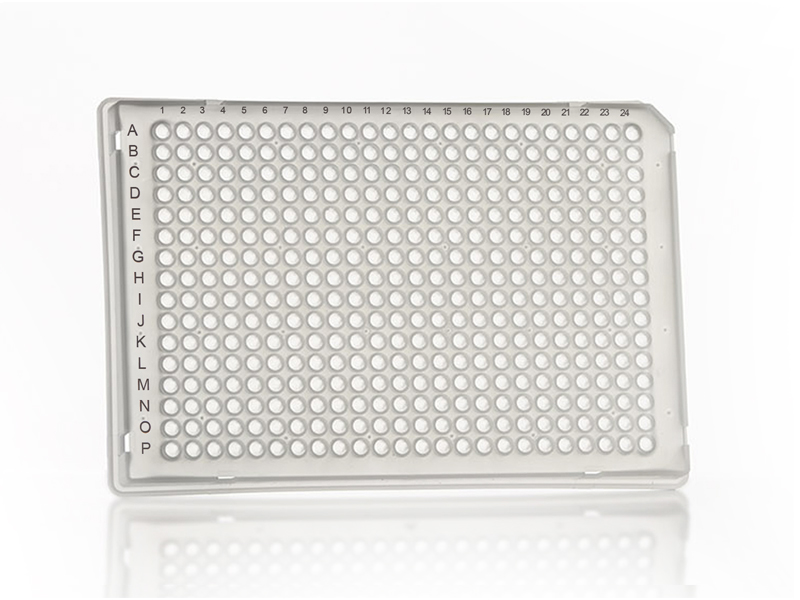

  • 4ti-1387 | 384 Well Skirted PCR Plate | Front

384 Well Skirted PCR Plate

Polypropylene, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard 384 well thermal cyclers

  • Available barcoded on request

Place a Request

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

All of our PCR plates are molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility, and as such comply with the same stringent requirements as our FrameStar® range.

Key Features

  • Quality
    • Subject to a strict QC procedure which includes a visual check and leak testing of every tube
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time quantitative PCR (RT-qPCR) results
    • <30µl working volume, 55µl total well capacity when used with sealing options
    • Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
    • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
  • Frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Recommended for low volume PCR
    • Compatible with blocks designed for 384 well PCR plates
    • Compatible with standard multichannel pipettes
  • Options
    • Super clear well option available to maximize sample visibility
    • Also available as a white plate, ideal for qPCR, giving optimal signal-to-noise ratio for fluorescence-based assays
    • Also available as a frosted plate for increased qPCR signal intensities and improved detection sensitivity
    • Available barcoded upon request; learn more about our barcoding options
    • Available as a FrameStar® 2-component PCR plate with the same dimensions, but with the added benefits of a polycarbonate frame that eliminates plate distortion and warping during the PCR process, leading to less evaporation and sample loss

Specifications

Parameter 384 Well Skirted PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 10.30 ± 0.05mm
Well depth 9.20 ± 0.10mm
Well diameter 3.00 ± 0.10mm
Total well capacity 55µl
Working volume <30µl
Distance to center of A1 from top edge 8.99 ± 0.25mm
Distance to center of A1 from left edge 12.13 ± 0.25mm
Pitch (distance between A1 and A2) 4.50mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (384 well block): GeneAmp® 9700 | Verity | Proflex | Multiblock system
    • qPCR Cyclers (384 well block): QuantStudio™ 5/6/7/12K | ViiA7™ | 7900 HT FAST
    • Sequencers (384 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
  • AGILENT/STRATAGENE
    • Thermal Cyclers (384 well block): SureCycler 8800
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (384 well block): Flexcycler2 | T1 Thermocycler | Tadvanced | TProfessional | Trobot 96
    • qPCR Cyclers (384 well block): qTOWER3 84 / 84G
  • BIOER TECHNOLOGIES
    • Thermal Cyclers (384 well block): Gene Touch 384
  • BIO-RAD
    • Thermal Cyclers (384 well block): C1000 Touch | S1000
    • qPCR Cyclers (384 well block): CFX384 Touch
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (384 well block): PCT200™/220™/221™/225™/240™
  • CORBETT RESEARCH
    • Thermal Cyclers (384 well block): (Qiagen) Palm Cycler 384
  • EPPENDORF
    • Thermal Cyclers (384 well block): MasterCycler® ep 384/Pro 384
  • GE HEALTHCARE/AMERSHAM
    • Sequencers (384 well block): MegaBACE™ 4000
  • PEQLAB/VWR
    • Thermal Cyclers (384 well block): peqSTAR 384X
  • SENSOQUEST
    • Thermal Cyclers (384 well block): Labcycler
  • TECHNE
    • Thermal Cyclers (384 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
384 Well Skirted PCR Plate
Polypropylene, cut corner A24, working volume: <30µl, total well capacity: 55µl; designed for use on standard 384 well thermal cyclers
4ti-1384 clear; 50 plates
4ti-1385 white; 50 plates
4ti-1387 frosted; 50 plates

Resources

PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
384 Well Skirted PCR Plate Technical Drawing

384 Well Skirted PCR Plate Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0384 | FrameStar 384 Well Skirted PCR Plate | Front

FrameStar® 384 Well Skirted PCR Plate

BUY ONLINE
On

Polypropylene wells, polycarbonate frame, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard thermal cyclers

4ti-0380/C | FrameStar 384 Well Skirted PCR Plate, Roche Style | Front

FrameStar® 384 Well Skirted PCR Plate, Roche Style

BUY ONLINE
On

Polypropylene wells, polycarbonate frame, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well

4ti-1381 | 384 Well Skirted PCR Plate, Roche Style | Front

384 Well Skirted PCR Plate, Roche Style

Off

White polypropylene, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well block

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

4ti-0500FL | PCR Foil Seal Strong | Piercing Detail

PCR Foil Seal Strong

Off

Adhesive aluminum foil, strong adhesive, peelable, pierceable; suitable for high temperature incubations and low temperature storage

4ti-0536 | Foil Heat Seal | Piercing Detail

Foil Heat Seal

BUY ONLINE
On

Aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR

Horizontal Scroll
On

Place a Request

Request a Quote, Free Samples, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.
