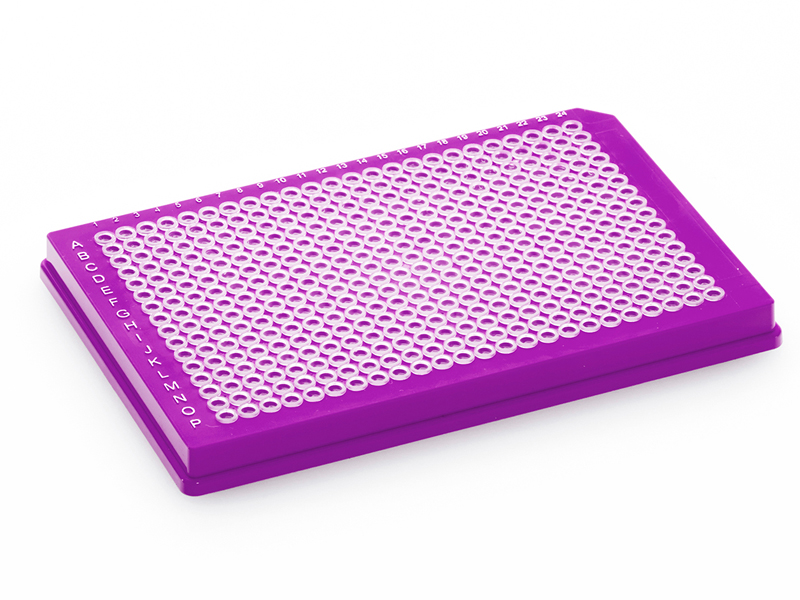

  • 4ti-0384 | FrameStar 384 Well Skirted PCR Plate

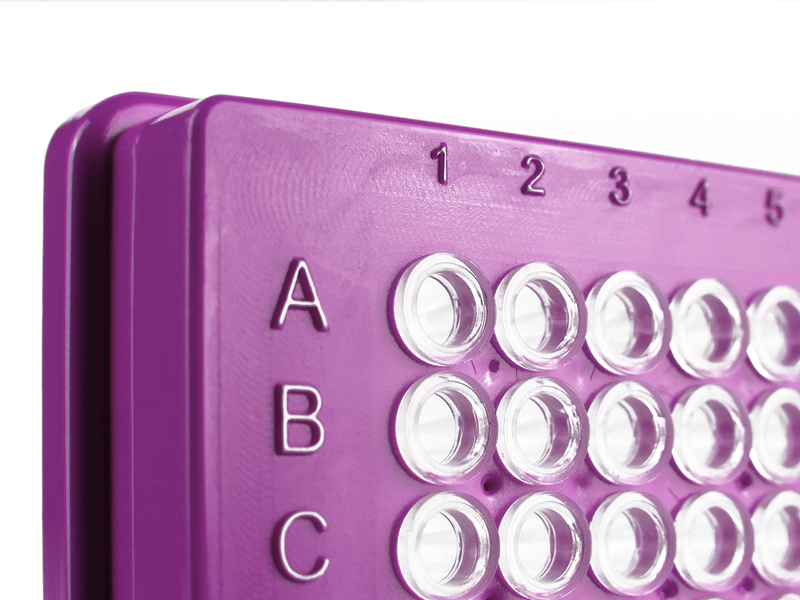

  • 4ti-0384 | FrameStar 384 Well Skirted PCR Plate | Corner Detail
  • 4ti-0384/B | FrameStar 384 Well Skirted PCR Plate | Front

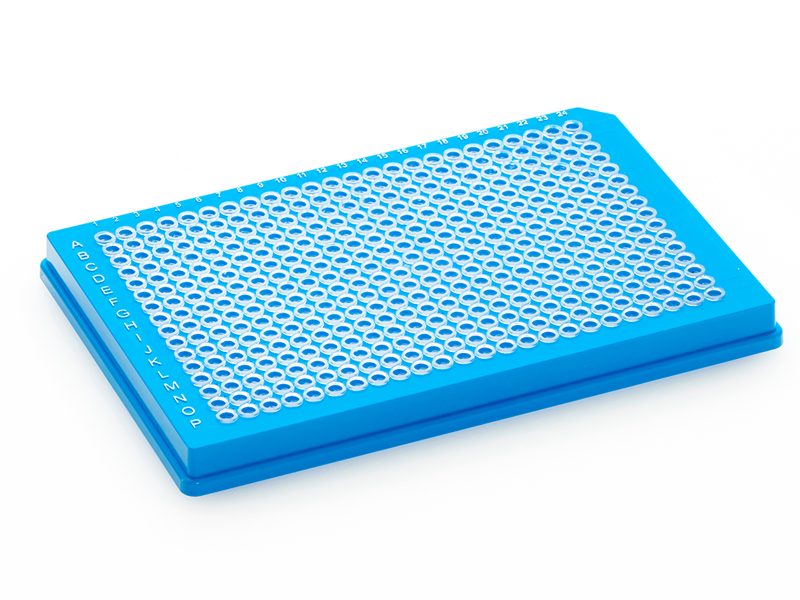

  • 4ti-0384/B | FrameStar 384 Well Skirted PCR Plate

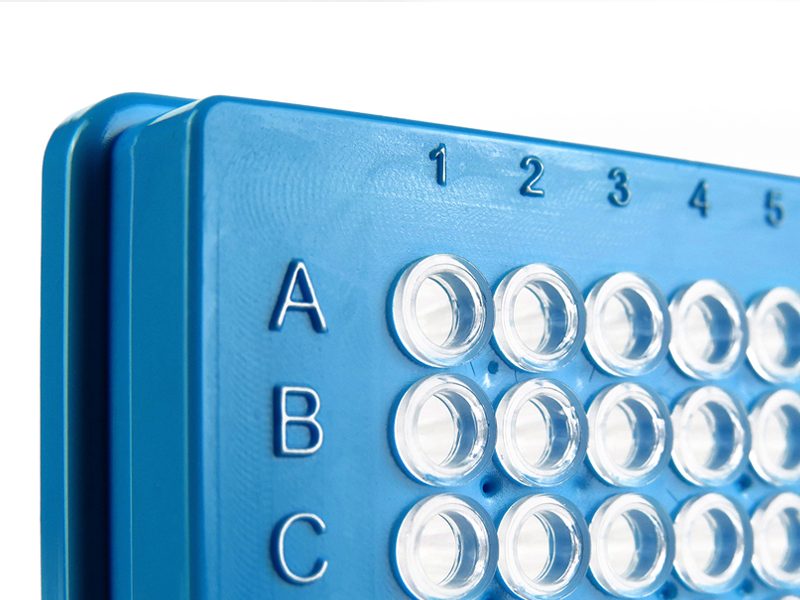

  • 4ti-0384/B | FrameStar 384 Well Skirted PCR Plate | Corner Detail

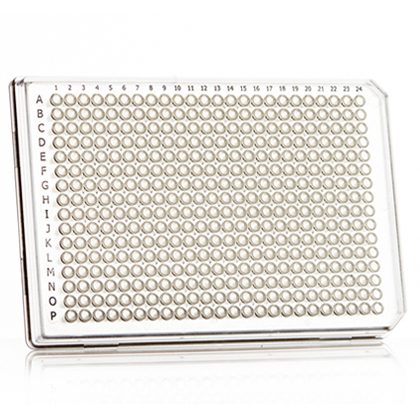

  • 4ti-0384/C | FrameStar 384 Well Skirted PCR Plate | Front

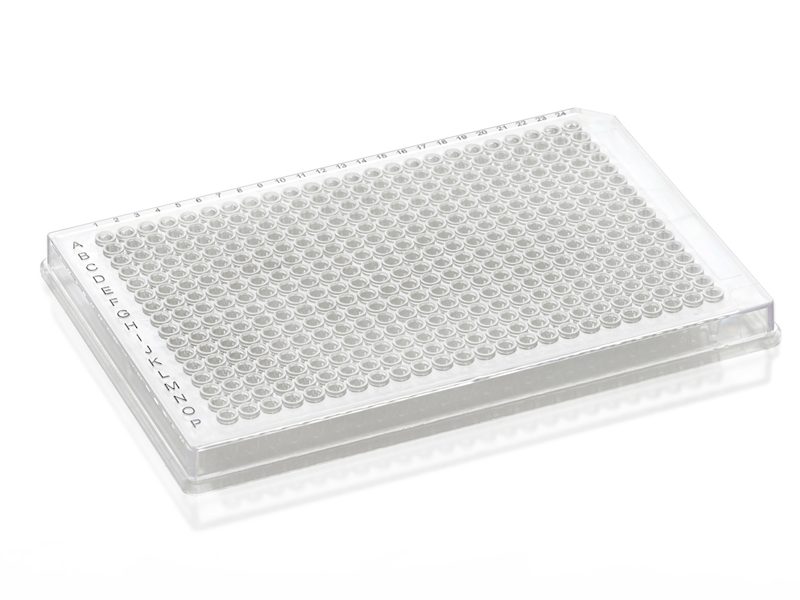

  • 4ti-0384/C | FrameStar 384 Well Skirted PCR Plate

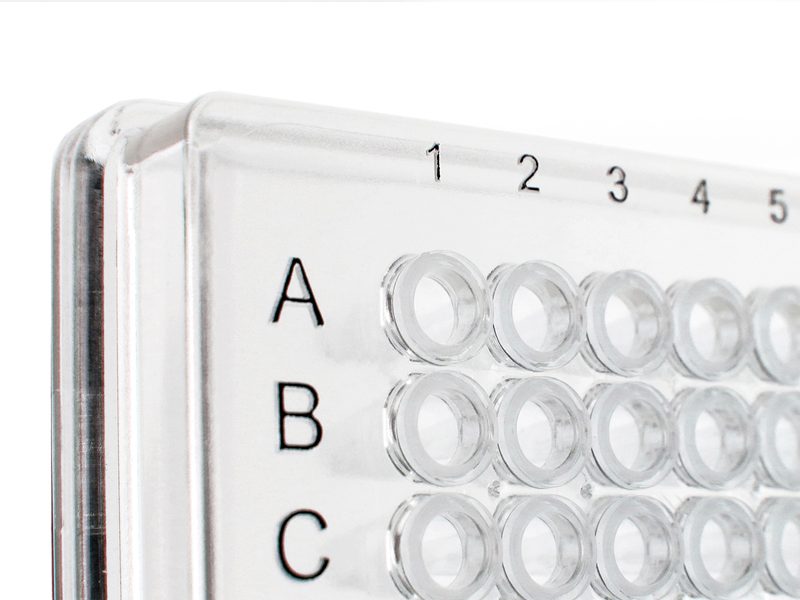

  • 4ti-0384/C | FrameStar 384 Well Skirted PCR Plate | Corner Detail
  • 4ti-0384/G | FrameStar 384 Well Skirted PCR Plate | Front

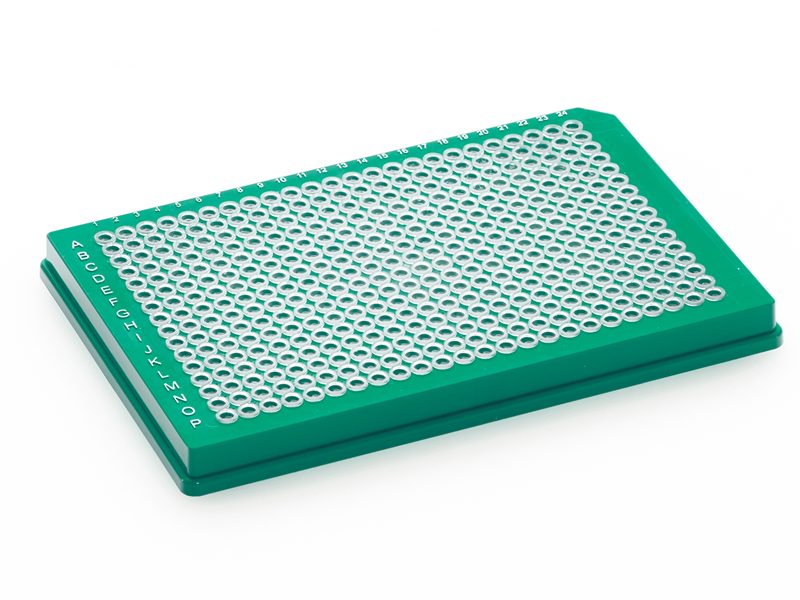

  • 4ti-0384/G | FrameStar 384 Well Skirted PCR Plate

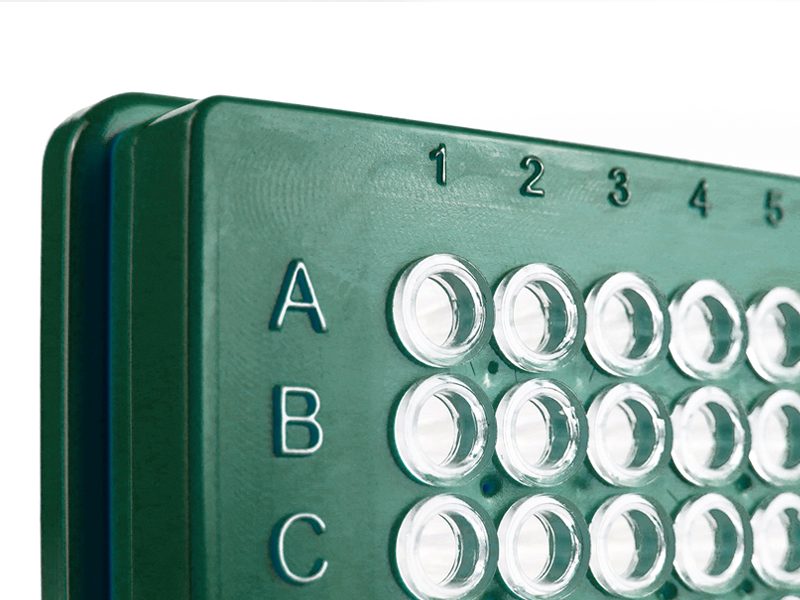

  • 4ti-0384/G | FrameStar 384 Well Skirted PCR Plate | Corner Detail
  • 4ti-0384/R | FrameStar 384 Well Skirted PCR Plate | Front
  • 4ti-0384/R | FrameStar 384 Well Skirted PCR Plate
  • 4ti-0384/R | FrameStar 384 Well Skirted PCR Plate | Corner Detail
  • 4ti-0384/X | FrameStar 384 Well Skirted PCR Plate | Front

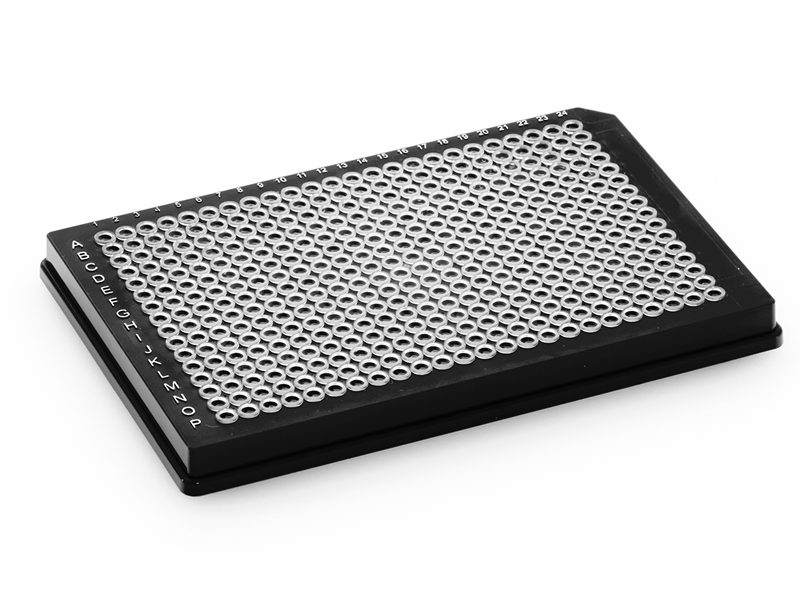

  • 4ti-0384/X | FrameStar 384 Well Skirted PCR Plate

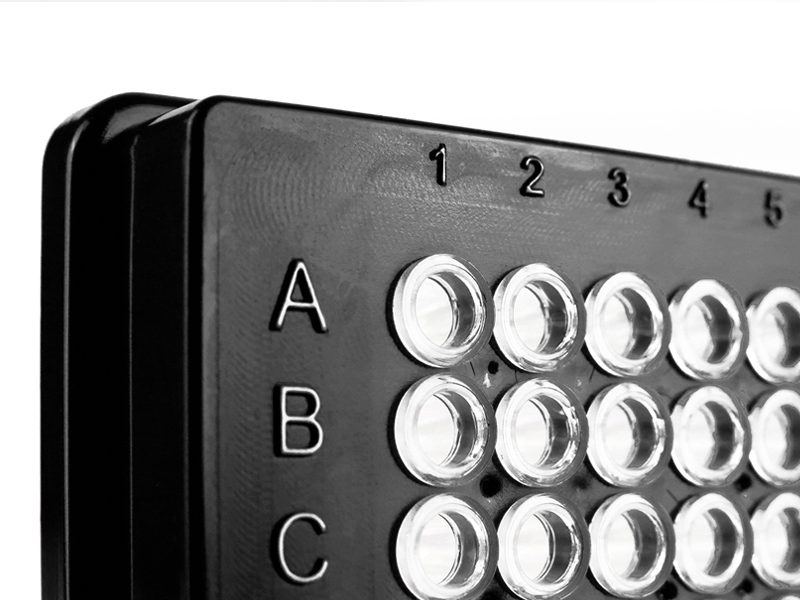

  • 4ti-0384/X | FrameStar 384 Well Skirted PCR Plate | Corner Detail

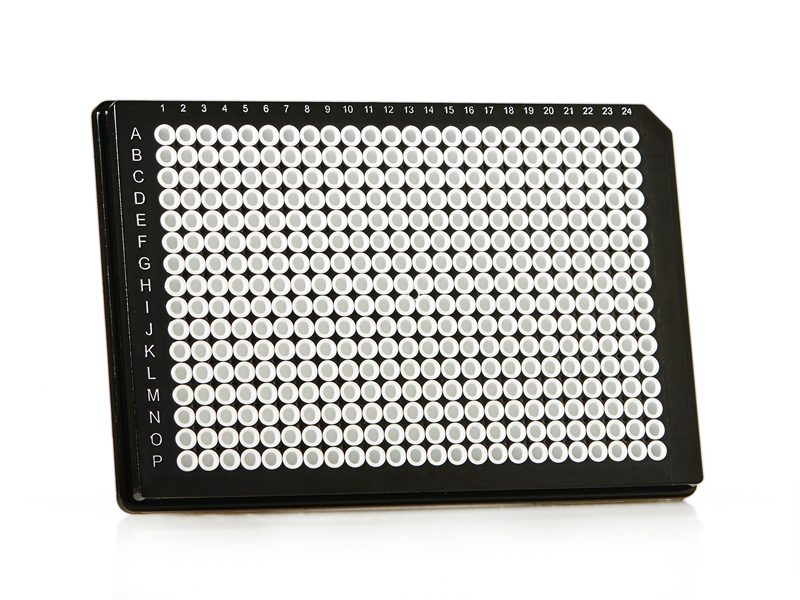

  • 4ti-0385 | FrameStar 384 Well Skirted PCR Plate | Front
  • 4ti-0385 | FrameStar 384 Well Skirted PCR Plate

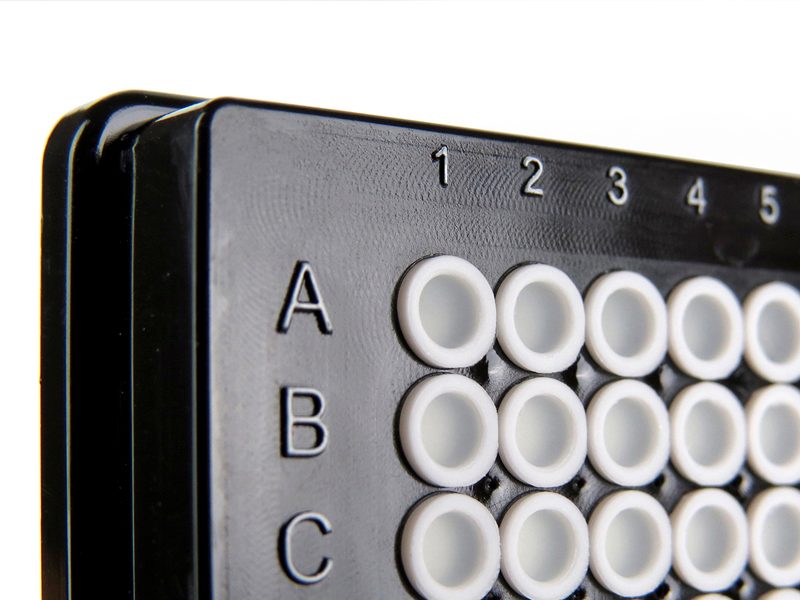

  • 4ti-0385 | FrameStar 384 Well Skirted PCR Plate | Corner Detail

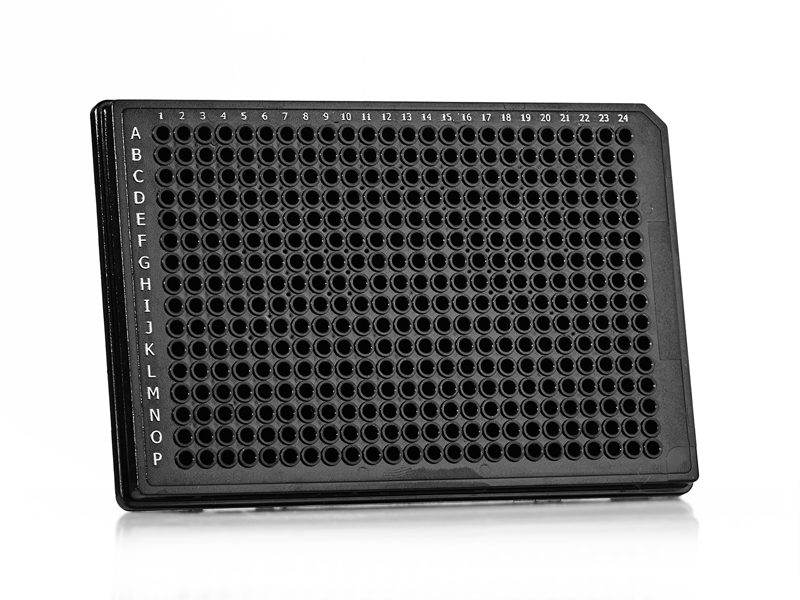

  • 4ti-0386 | FrameStar 384 Well Skirted PCR Plate | Front
  • 4ti-0386 | FrameStar 384 Well Skirted PCR Plate
  • 4ti-0386 | FrameStar 384 Well Skirted PCR Plate | Corner Detail

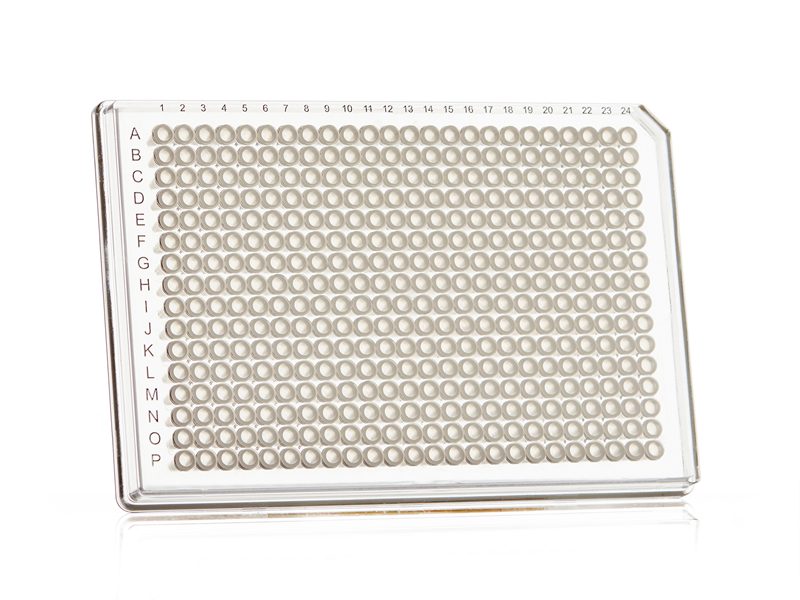

  • 4ti-0387 | FrameStar 384 Well Skirted PCR Plate | Front

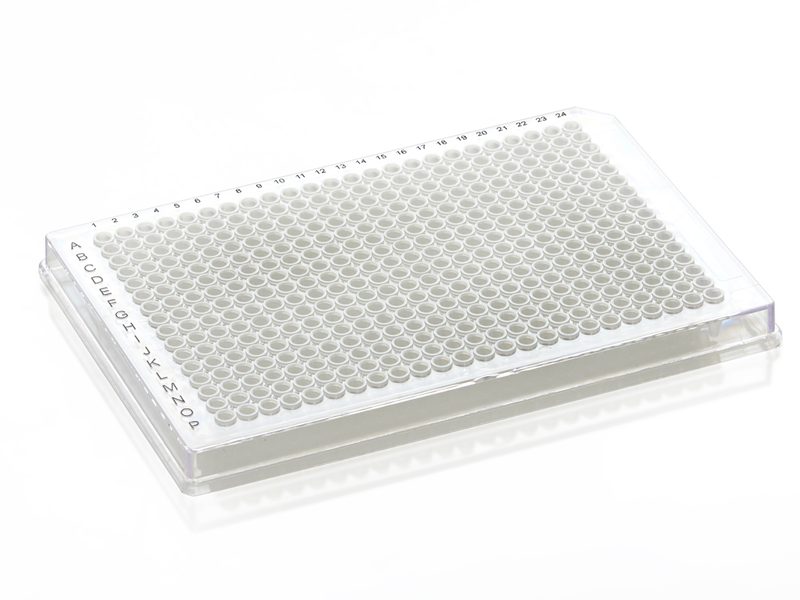

  • 4ti-0387 | FrameStar 384 Well Skirted PCR Plate

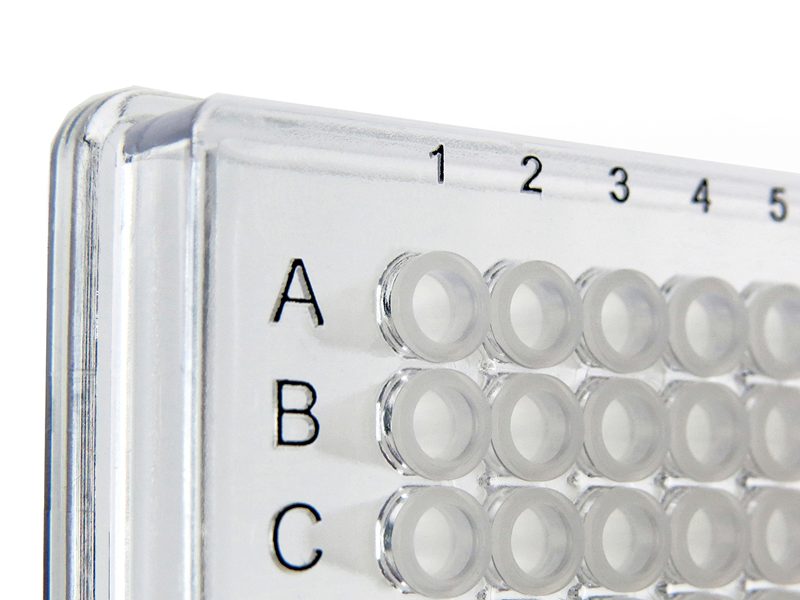

  • 4ti-0387 | FrameStar 384 Well Skirted PCR Plate | Corner Detail

FrameStar® 384 Well Skirted PCR Plate

Polypropylene wells, polycarbonate frame, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard thermal cyclers

  • Available barcoded on request
  • Ultra-low DNA binding option available

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Low DNA Binding Products
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

Our FrameStar 384 Well Skirted PCR Plates are designed for high-throughput PCR. They are compatible with the majority of 384 well block PCR, qPCR and sequencing instruments. The rigid 2-component design eliminates warping and distortion during PCR making it ideal for use with robotic systems. The skirt allows for labeling or barcoding.

Low DNA Binding Products

  • Azenta Life Sciences offer low binding products, recommended to support sensitive techniques such as qPCR and Next Generation Sequencing (NGS), as well as storage of samples.
  • Manufactured using selected low-bind polymers, DNA loss is minimized during incubation and sample transfer, making it the ideal solution for use in applications with low DNA input.
  • Low binding feature results from selected low-bind polymers, no coating is used to achieve the binding characteristics. No contamination or modification of the samples.
  • Tested under a broad temperature range. Maximum DNA recovery after low temperature storage and high temperature incubations.
  • No detectable DNA loss during incubation steps and sample transfer in NGS sample prep and library construction. Ideally suited for sensitive applications with ultra-low nucleic acid input.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
    • Stackable
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • <30µl working volume, 55µl total well capacity
  • Frame
    • Rigid polycarbonate frame for added mechanical stability
    • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
    • Improved seal integrity due to thermal stability of the frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Recommended for low volume PCR
    • Compatible with standard multichannel pipettes
    • Ideal for use with robotic systems
    • Compatible with the majority of 384 well block PCR, qPCR and sequencing instruments
  • Options
    • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
    • Also available as a black frame with white wells (for optimum signal-to-noise ratio when using fluorescent based assays)
    • Available as a black frame with black wells (for minimal light diffusion and interference)
    • Also available as a clear frame with frosted wells for use with ABI®/LifeTechnologies® qPCR instruments
    • Extra rigid skirt option (4ti-0384/RIG) for use with automation systems: eliminates the robotic grip picking up more than one plate at a time
    • Ultra-low DNA binding option available (4ti-LB0384/C) for sensitive applications with ultra-low DNA input and for maximum DNA recovery after low temperature storage and high temperature incubation; learn more about our low binding range
    • Available barcoded upon request; learn more about our barcoding options

Specifications

Parameter FrameStar 384 Well Skirted PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 10.60 ± 0.25mm
Well depth 9.60 ± 0.10mm
Well diameter 3.10 ± 0.10mm
Total well capacity 55µl
Working volume <30µl
Distance to center of A1 from top edge 8.99 ± 0.25mm
Distance to center of A1 from left edge 12.13 ± 0.25mm
Pitch (distance between A1 and A2) 4.50mm

Compatibility

  • ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
    • Thermal Cyclers (384 well block): GeneAmp® 9700 | Verity | Proflex | Multiblock system
    • qPCR Cyclers (384 well block): QuantStudio™ 5/6/7/12K | ViiA7™ | 7900 HT FAST
    • Sequencers (384 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
  • AGILENT/STRATAGENE
    • Thermal Cyclers (384 well block): SureCycler 8800
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (384 well block): Flexcycler2 | T1 Thermocycler | Tadvanced | TProfessional | Trobot 96
    • qPCR Cyclers (384 well block): qTOWER3 84/84G
  • BIOER TECHNOLOGIES
    • Thermal Cyclers (384 well block): Gene Touch 384
  • BIO-RAD
    • Thermal Cyclers (384 well block): C1000 Touch | S1000
    • qPCR Cyclers (384 well block): CFX384 Touch
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (384 well block): PCT200™/220™/221™/225™/240™
  • CORBETT RESEARCH
    • Thermal Cyclers (384 well block): (Qiagen) Palm Cycler 384
  • EPPENDORF
    • Thermal Cyclers (384 well block): MasterCycler® ep 384/Pro 384
  • GE HEALTHCARE/AMERSHAM
    • Sequencers (384 well block): MegaBACE™ 4000
  • PEQLAB/VWR
    • Thermal Cyclers (384 well block): peqSTAR 384X
  • SENSOQUEST
    • Thermal Cyclers (384 well block): Labcycler
  • TECHNE
    • Thermal Cyclers (384 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Flexigene

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
FrameStar 384 Well Skirted PCR Plate
Polypropylene wells, polycarbonate frame, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard thermal cyclers
4ti-0384 clear wells, purple frame; 50 plates

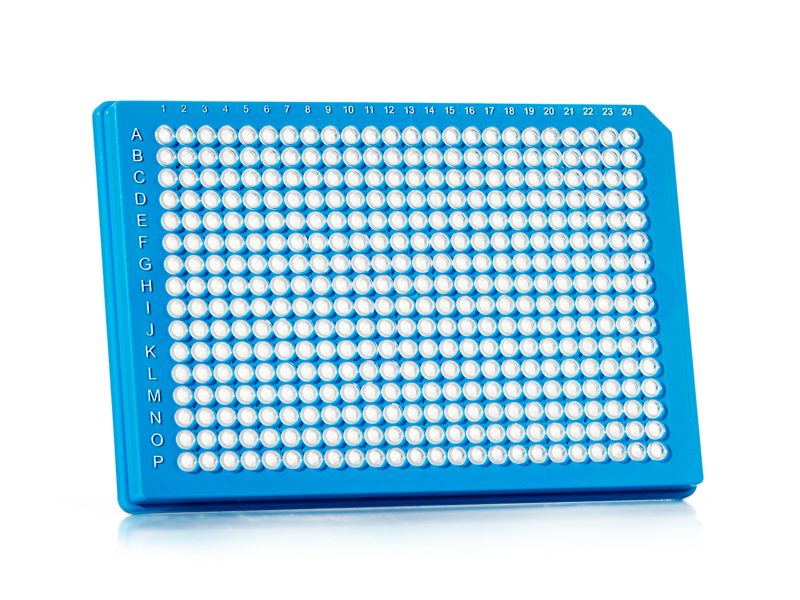

4ti-0384/B clear wells, blue frame; 50 plates

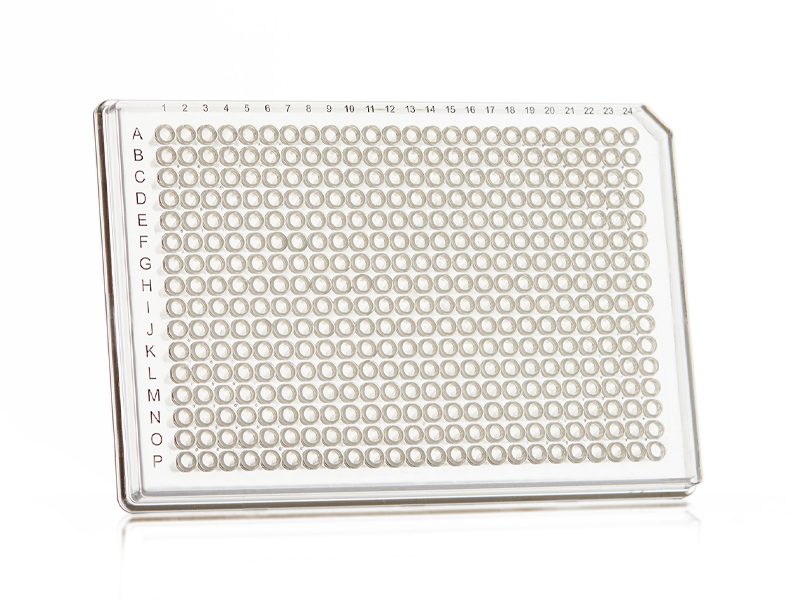

4ti-0384/C
BUY ONLINE*		 clear wells, clear frame; 50 plates

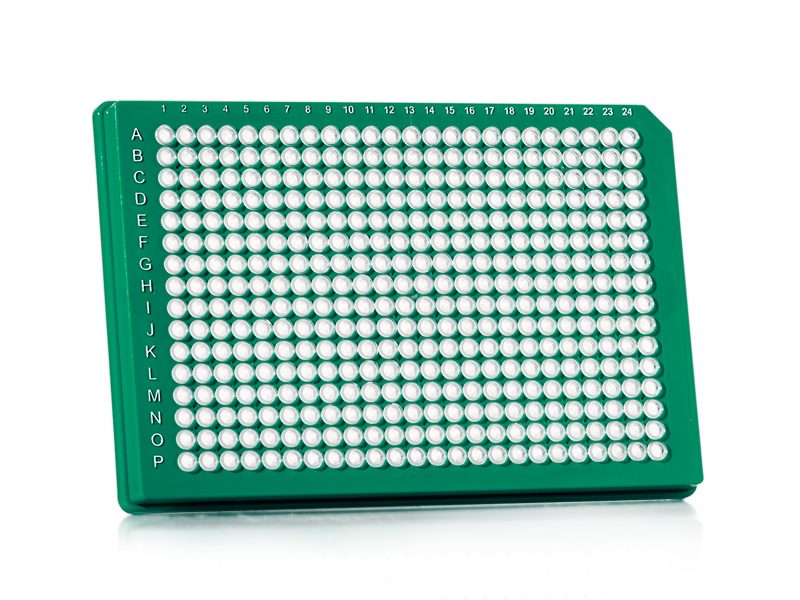

4ti-0384/G clear wells, green frame; 50 plates

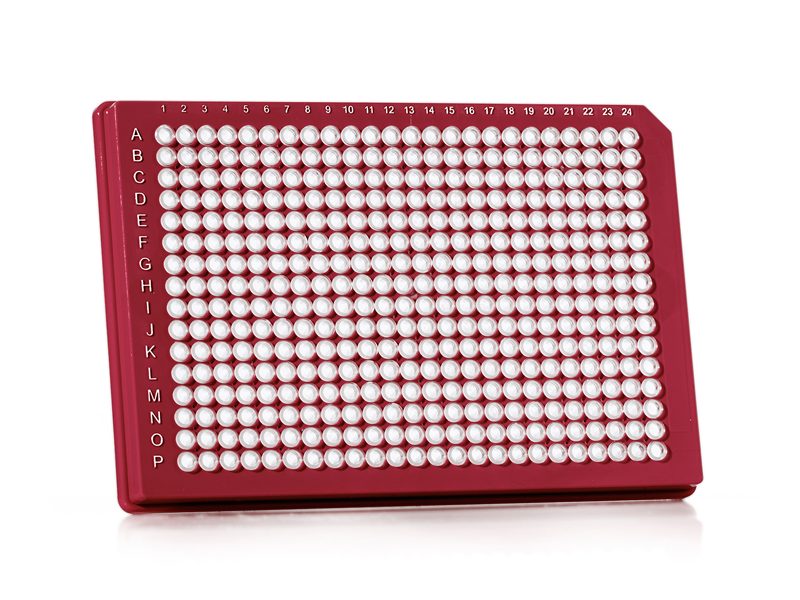

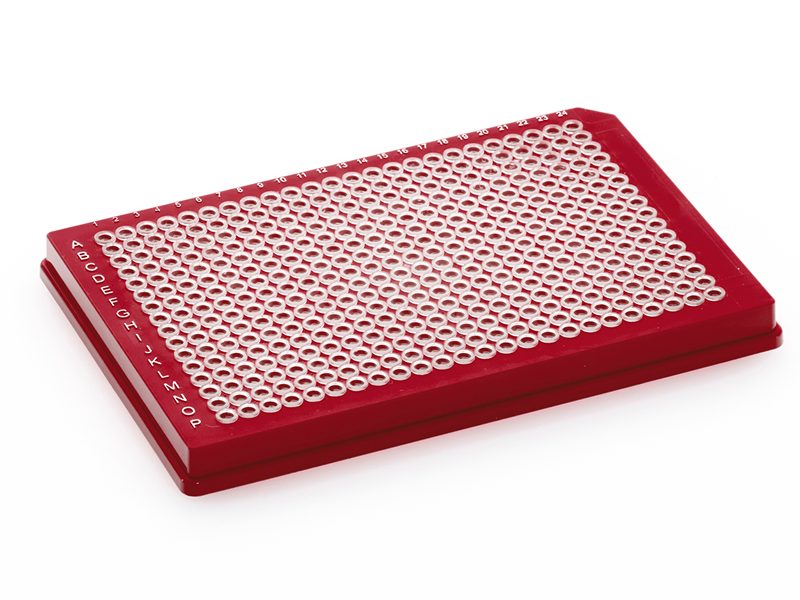

4ti-0384/R clear wells, red frame; 50 plates
4ti-0384/X clear wells, black frame; 50 plates

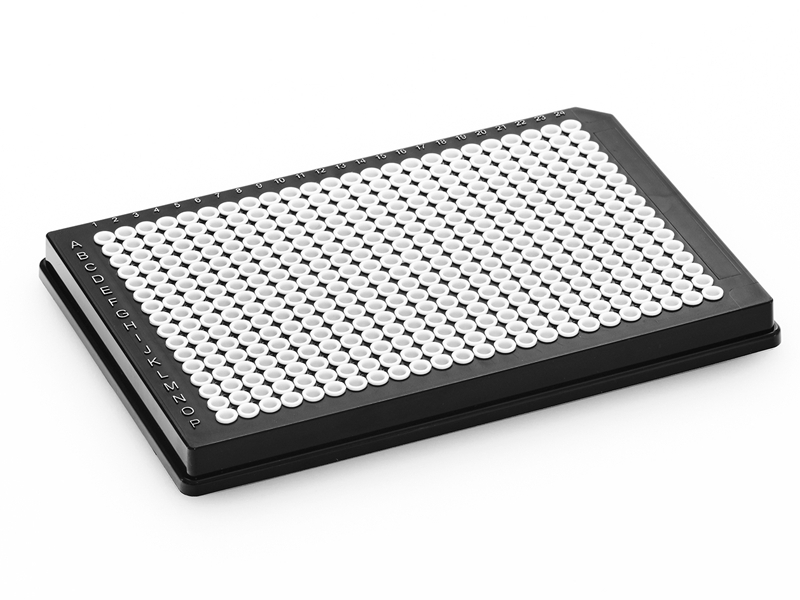

4ti-0385 white wells, black frame; 50 plates

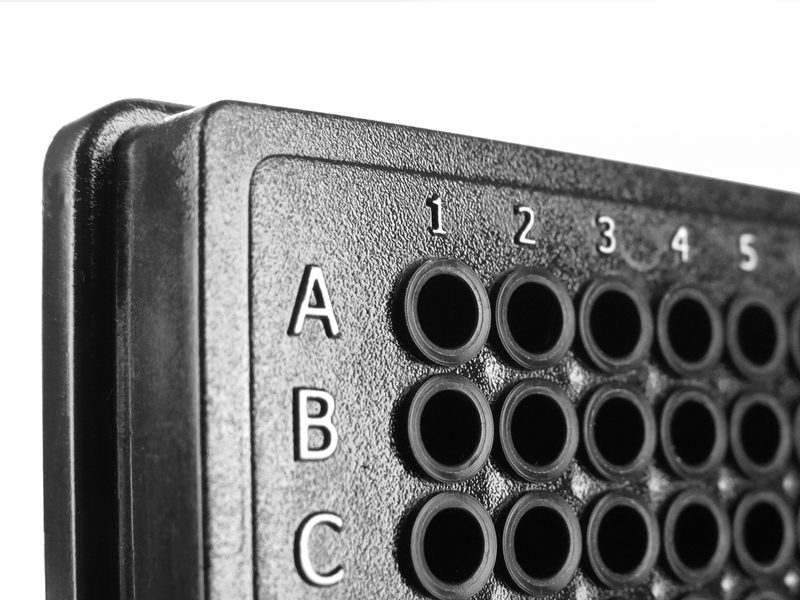

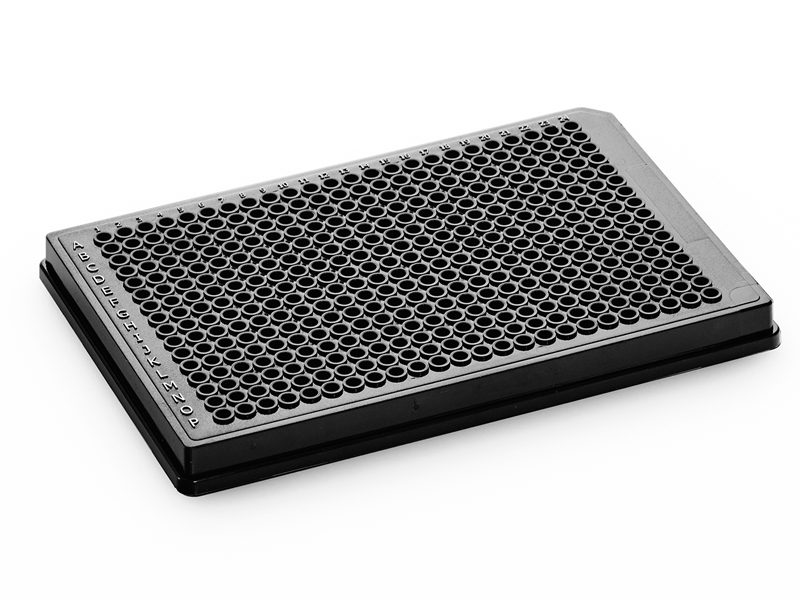

4ti-0386 black wells, black frame; 50 plates
4ti-0387 frosted wells, clear frame; 50 plates
4ti-LB0384/C 4ti-0384/C with low DNA binding properties; 50 plates

*Online availability to US only

Resources

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Consumable Effects on Low Volume TaqMan® Assays for Quantitative PCR on Roche LightCycler® 480

Application Notes & Tech Notes
Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Miniaturization of a qPCR Assay with Reduced Reagent Volumes to Achieve Cost Savings in Gene Expression Analyses in Rumen Epithelium

Application Notes & Tech Notes
FrameStar® qPCR Plates with Frosted Wells

FrameStar® qPCR Plates with Frosted Wells

Brochures & Sell Sheets
Low DNA Binding Products Brochure

Low DNA Binding Products Brochure

Brochures & Sell Sheets
PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
Avoiding DNA Adsorption to Tube Walls in NGS Sample Preparation

Avoiding DNA Adsorption to Tube Walls in NGS Sample Preparation

Publications & Posters
FrameStar® 384 Well Skirted PCR Plate Technical Drawing

FrameStar® 384 Well Skirted PCR Plate Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0380/C | FrameStar 384 Well Skirted PCR Plate, Roche Style | Front

FrameStar® 384 Well Skirted PCR Plate, Roche Style

BUY ONLINE
On

Polypropylene wells, polycarbonate frame, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well

4ti-1384 | 384 Well Skirted PCR Plate | Front

384 Well Skirted PCR Plate

Off

Polypropylene, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard 384 well thermal cyclers

4ti-1381 | 384 Well Skirted PCR Plate, Roche Style | Front

384 Well Skirted PCR Plate, Roche Style

Off

White polypropylene, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler® 480 with 384 well block

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0665 | Automated Roll Heat Sealer (formerly a4S)

Automated Roll Heat Sealer (formerly a4S)

BUY ONLINE
On

The perfect solution for automated heat sealing of microplates, PCR plates, assay plates and storage plates used in medium to high-throughput or full automation applications

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-0560 | qPCR Adhesive Seal

qPCR Adhesive Seal

BUY ONLINE
On

Optically clear adhesive film, pressure activated adhesive, peelable; suitable for qPCR and other imaging techniques including crystallization

4ti-0500 | PCR Seal

PCR Seal

BUY ONLINE
On

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

4ti-0541 | Clear Heat Seal

Clear Heat Seal

BUY ONLINE
On

Peelable heat sealing film, optically clear; suitable for qPCR and optical applications

Horizontal Scroll
On

Place a Request

Request a Quote, Free Samples, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.

Home
Facebook twitter youtube linkedin
Copyright © 2023 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
