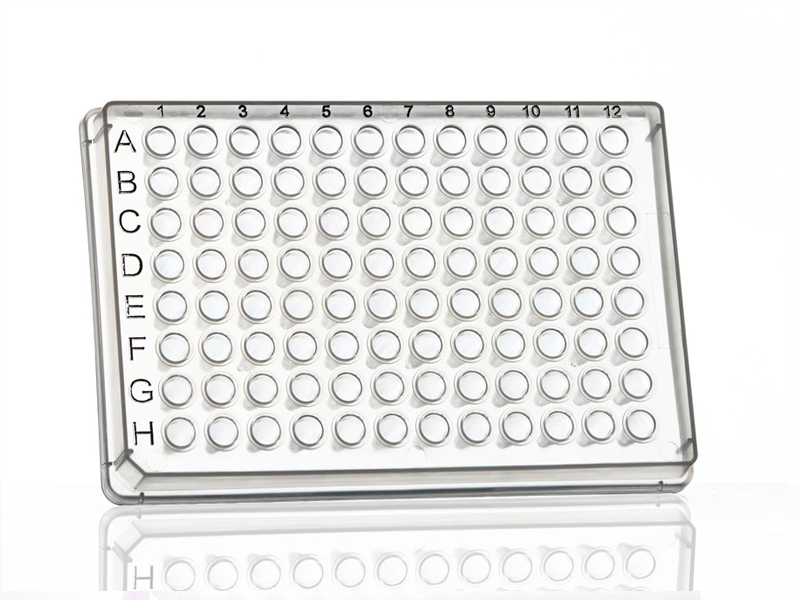

  • 4ti-0740 | 96 Well Skirted PCR Plate | Front

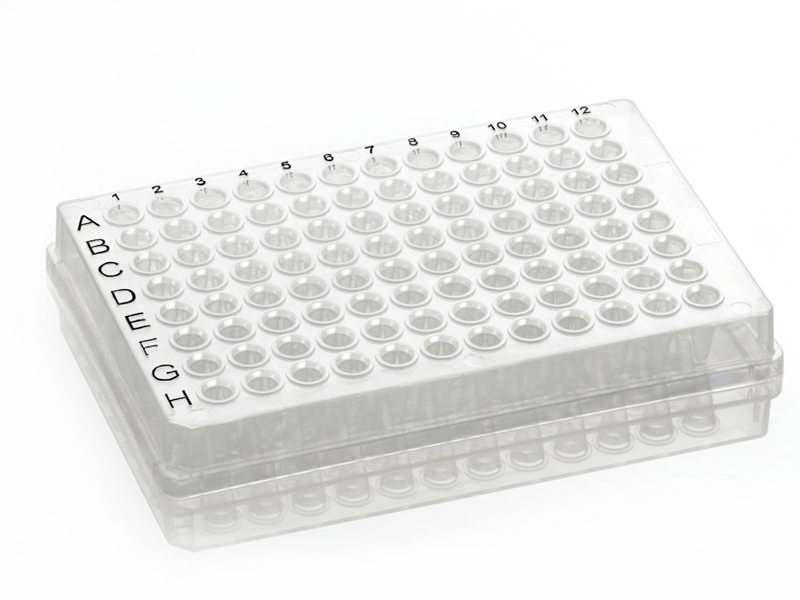

  • 4ti-0740 | 96 Well Skirted PCR Plate

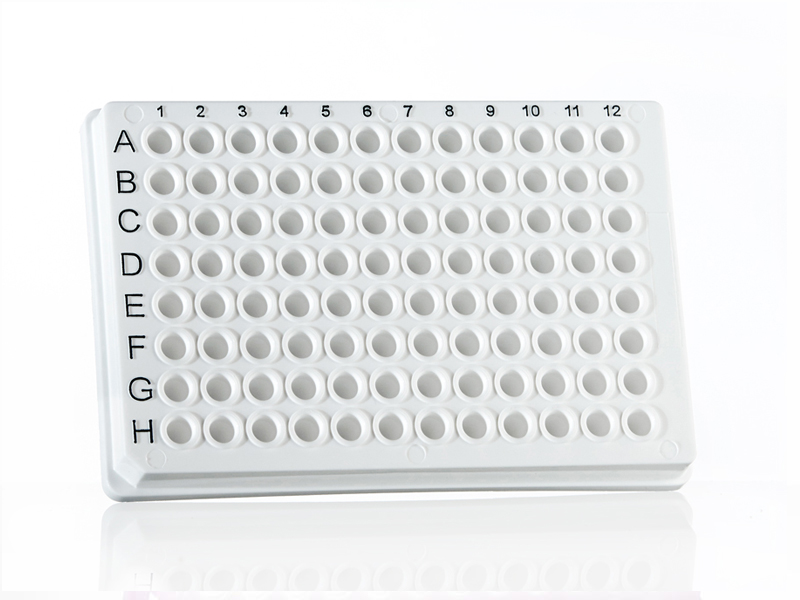

  • 4ti-0741 | 96 Well Skirted PCR Plate | Front

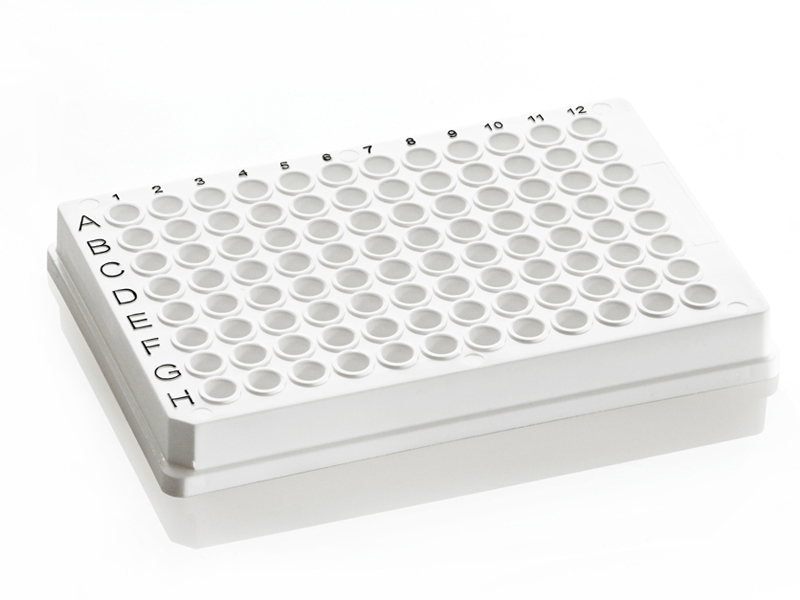

  • 4ti-0741 | 96 Well Skirted PCR Plate

96 Well Skirted PCR Plate

Low profile, 0.1ml wells, polypropylene, cut corner H1, working volume: <100µl, total well capacity: 200µl; universal 96 well skirted plate, designed for use on standard thermal cyclers

  • Available barcoded on request

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

All of our PCR plates are molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility, and as such comply with the same stringent requirements as our FrameStar® range.

Key Features

  • Quality
    • Subject to a strict QC procedure which includes a visual check and leak testing of every tube
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
    • Low profile 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options
    • Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
    • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
  • Frame
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Compatible with blocks designed for skirted PCR plates
    • Compatible with standard multichannel pipettes
  • Options
    • Super clear wells maximize sample visibility
    • Also available as a white plate, ideal for qPCR, giving optimal signal-to-noise ratio for fluorescence-based assays
    • Available barcoded upon request; learn more about our barcoding options
    • Available as a FrameStar 2-component PCR plate with the same dimensions, but with the added benefits of a polycarbonate frame that eliminates plate distortion and warping during the PCR process, leading to less evaporation and sample loss

Specifications

Parameter 96 Well Skirted PCR Plate
Plate length 127.76 ± 0.50mm
Plate width 85.48 ± 0.50mm
Plate height 15.50 ± 0.25mm
Well depth 15.00 ± 0.10mm
Well diameter 5.50 ± 0.10mm
Total well capacity 0.2ml (200µl)
Working volume <0.1ml (100µl)
Distance to center of A1 from top edge 11.24 ± 0.25mm
Distance to center of A1 from left edge 14.38 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Compatibility

  • AGILENT/STRATAGENE
    • Thermal Cyclers (96 well block): Robocycler Gradient
    • qPCR Cyclers (96 well block): AriaMx
  • ANALYTIK JENA/BIOMETRA
    • Thermal Cyclers (96 well block): Trobot 96 | SpeedCycler2 (SP, SPR)
  • BIO-RAD
    • Thermal Cyclers (96 well block): C1000 Touch | S1000
    • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
  • EPPENDORF
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • GE HEALTHCARE/AMERSHAM
    • Sequencers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
  • PEQLAB/VWR
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler
  • TECHNE
    • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
    • qPCR Cyclers (96 well block): Quantica

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
96 Well Skirted PCR Plate
Low profile, 0.1ml wells, polypropylene, cut corner H1, working volume: <100µl, total well capacity: 200µl; universal 96 well skirted plate, designed for use on standard thermal cyclers
4ti-0740
BUY ONLINE*
clear; 50 plates
4ti-0741 white; 50 plates
Cap strips
4ti-0751 Strips of 8 Flat Optical Caps; 300 strips
4ti-0752 Strips of 8 Domed Caps; 300 strips

*Online availability to US only
