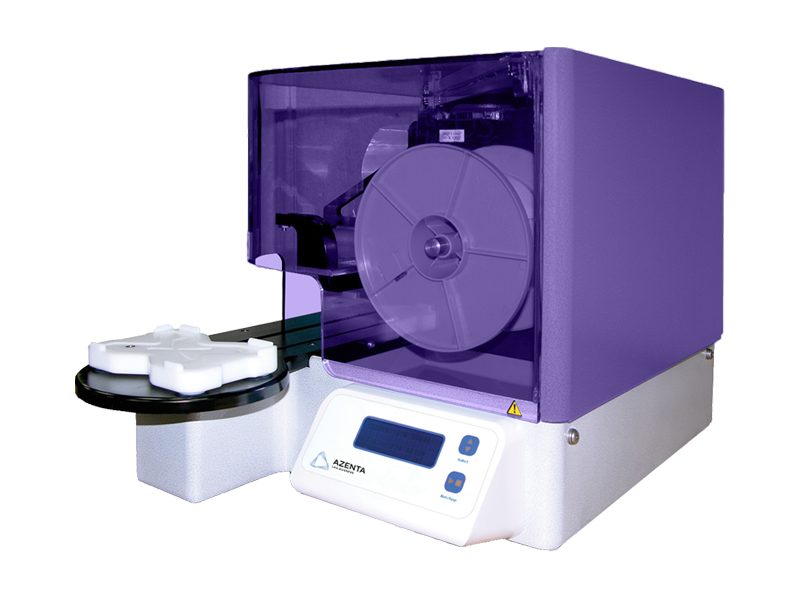

Automated Plate Seal Remover (formerly XPeel®)

The Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button, enabling the adoption of the gold-standard operating model (sealed plates, no lids).

  • Universal fit to all microplate and seal types
  • Preserves sample integrity
  • Easy to use, easy to integrate

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

The Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button. A robust and elegantly-simple automated system, it eliminates the need for repetitive, manual removal of plate seals and enables the adoption of the gold-standard operating model (sealed plates, no lids).

The patented Tape removal medium eliminates the need for mechanical removal mechanisms which are often prone to failure. The Automated Plate Seal Remover is highly reliable and can be used manually or integrated into automated systems with external robotics.

Key Features

Compatible with Virtually all Microplate & Seal Types
  • Can be used with a wide variety of microplates, including full-skirted PCR plates, low-base microplates and deep-well (up to 2ml) plates
  • Compatible with a variety of full-plate seals, including heat and pressure applied seals
  • Uses proprietary Removal Tape to de-seal microplates, up to 400 seal removals per tape roll
Preserves Sample Integrity
  • Eliminates cross contamination common with manual seal removal techniques
  • Supports quality control measures requiring samples to be sealed until their moment of use
  • Holds the plate down whilst the seal is peeled away from the plate, eliminating another contamination issue
  • Operating mode minimizes plate or seal damage
  • Integrated seal removal verification feature reduces plate handling errors
Easy to Use, Easy to Integrate
  • Can be used as a standalone system, or integrated into automated and robotic workflows via Serial RS232 remote interface
  • One-touch, push-button operation to de-seal plates makes the Automated Plate Seal Remover an ideal standalone device for busy laboratories
  • Capacity to remove up to 200 plate seals per hour
  • Robust, time-proven device with hundreds of units placed globally in a range of manual and automated environments
Specifications
Automated Plate Seal Remover
Seal removal capacityup to 400 per Removal Tape roll
Seal verification sensorreflective with sensitivity adjustment
Communicationserial RS232
Motion parametersRemoval Tape adhere time, de-seal speed, plate output orientation, begin peel location
General parametersauto Removal Tape advance, plate verification, menu language
Weight35kg (76lbs)
Power requirements115VAC, 4A, 60Hz
230VAC, 2A, 50Hz
Throughputup to 200 plate seal removals per hour
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Automated Plate Seal Remover
Compatible with virtually all microplate and seal types
XP-A115V, version for North America; 1 unit
XP-A_100V100V, version for Asia; 1 unit
XP-A_230V230V, version for Europe; 1 unit
Tapes
X-Tape_2000Removal Tape roll; 5 rolls
