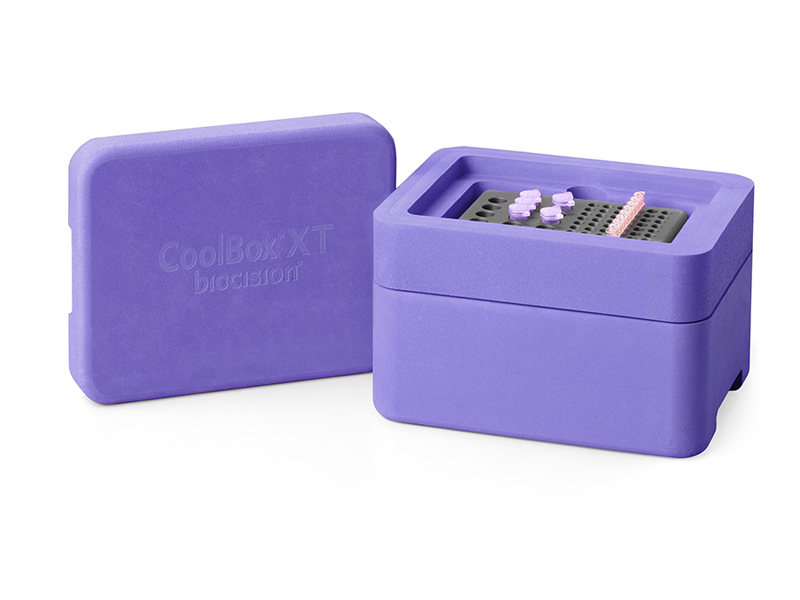

  • BCS-572 | CoolBox XT PCR Strip System
  • BCS-502G, BCS-573 | CoolBox XT Cooling Workstation, Single Capacity and CoolBox 2XT PCR Sample Preparation System | Cooling Core Exposed | Comparison

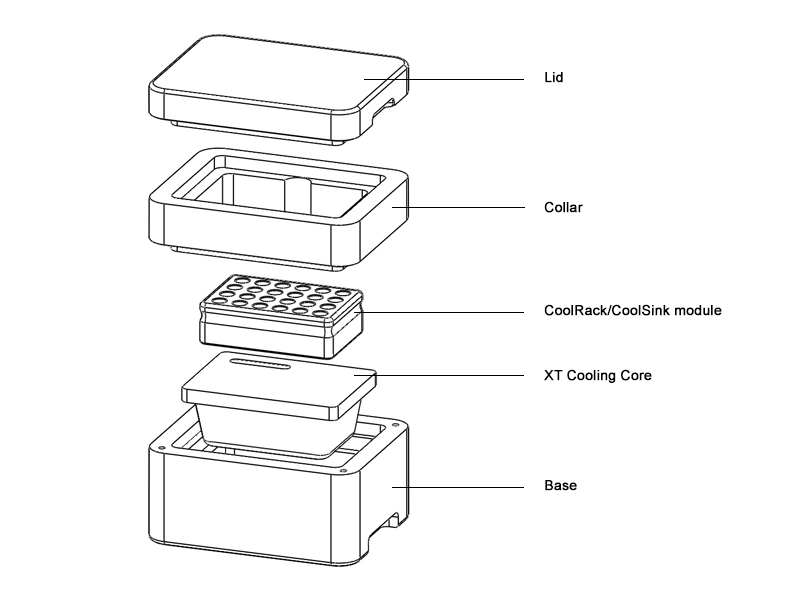

  • CoolBox XT Cooling Workstation, Single Capacity Anatomy | Drawing

CoolBox™ XT Cooling Workstation, Single Capacity

CoolBox XT Cooling Workstation, Single Capacity is an ice-free bench top cooling workstations providing sample cooling or freezing without ice, electricity or batteries

  • Ice-free cooling/freezing systems with lid
  • Fits a choice of CoolRack™ modules
  • Small footprint
  • Keeps samples cold for up to 16 hours
  • Keeps samples frozen for up to 8 hours

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

CoolBox Cooling Workstation ice-free systems are bench top cooling workstations that provide sample cooling or freezing without ice, electricity or batteries. Cooling Workstation systems are versatile and accommodate a variety of sample formats and temperatures. The modular design enables the use of CoolRack sample modules to hold microfuge tubes, cryogenic vials, PCR tubes or plates, and more.

Key Features

  • Secure Sample Preparation
    • Operates without ice, batteries or electricity
    • Keeps samples cold at a uniform 0.5 to 4.0°C for up to 16 hours
    • Keeps samples frozen (<0°C) for up to 8 hours
    • The built-in 1-8ºC temperature indicator provides visual assurance of operational temperature while working
  • Broad Compatibility
    • Versatile: accommodates most CoolRack modules
    • Small footprint ideal for use in the hood especially in keeping temperature sensitive solutions cold
    • To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the cartridge as needed
  • How it Works: Ease of Use
    • Freeze the Cooling/Freezing Core in -20°C freezer
    • Place frozen core in base/holder
    • Rest CoolRack module on cartridge
    • Module will equilibrate and maintain temperature via thermo-conductivity
    • To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the core as needed
    • Dry ice may be used in place of the cores to create a compact snap freezing workstation

Specifications

Parameter CoolBox XT Cooling Workstation, Single Capacity
Internal dimensions (L x W x H) 14.0 x 9.4 x 9.9cm*
External dimensions (L x W x H) 20.0 x 16.0 x 15.0cm
For use with tube and plate modules
Cooling** (lid open/closed) 10 hours/16 hours
Freezing*** (lid open/closed) 5 hours/8 hours

* Internal height of open space when core is in the base

** 0.5° to 4°C

*** <0°C

Ordering Information

Use these part numbers to request a quote, a demo or to contact an expert:

Part number Description
CoolBox XT Cooling Workstation, Single Capacity
Ice-free cooling/freezing system for tube and plate modules; includes CoolBox XT base, collar, lid and 1 Cooling Core
BCS-502
BUY ONLINE*
purple; 1 system
BCS-502G
BUY ONLINE*
green; 1 system
BCS-502O
BUY ONLINE*
orange; 1 system
BCS-502PK
BUY ONLINE*
pink; 1 system
CoolBox XT Cooling Workstation, Single Capacity System with Freezing Core
CoolBox XT with Freezing Core instead of Cooling Core
BCS-502-F
BUY ONLINE*
purple; 1 system
Combi packs
Pre-assembled CoolBox XT systems
BCS-570
BUY ONLINE*
CoolBox XT PCR96 System
For use with 1 96-well PCR plate, 12 x strip wells or 96 x 0.2ml tubes; includes 1 CoolBox XT and 1 SBS-compatible CoolRack XT PCR96; 1 kit
BCS-572
BUY ONLINE*
CoolBox XT PCR Strip System
For use with 6 strip wells and 12 microfuge tubes (1.5 to 2.0ml); includes 1 CoolBox XT and 1 CoolRack XT M-PCR; 1 kit
BCS-575
BUY ONLINE*
CoolBox XT CryoTube 24 System
For use with 24 x 1.0 to 2.0ml cryogenic vials with “gripping” wells for one hand tube opening/closing; includes 1 CoolBox XT and 1 CoolRack XT CFT24; 1 kit
BCS-576
BUY ONLINE*
CoolBox XT MicroTube 24 System
For use with 24 x 1.5 to 2.0ml microfuge tubes; includes 1 CoolBox XT and 1 SBS-compatible CoolRack XT M24; 1 kit

*Online availability to US only
