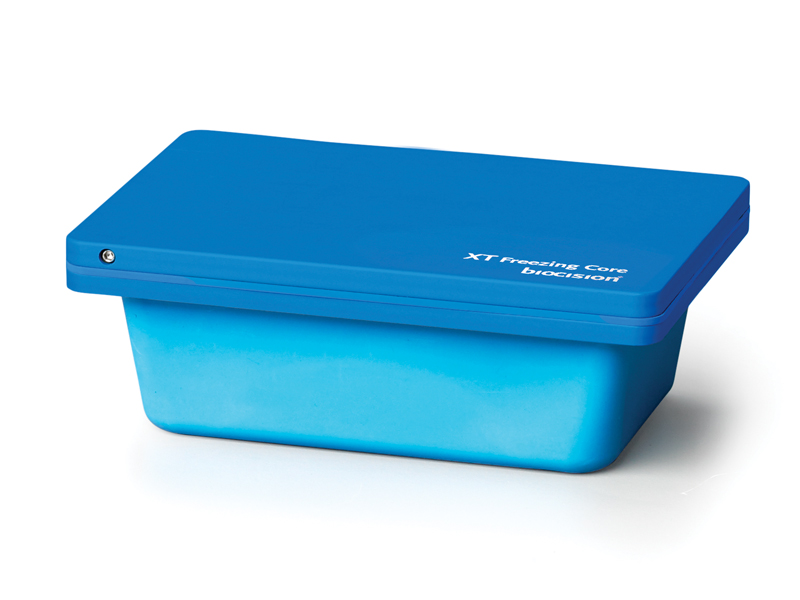

CoolBox™ XT Cooling Workstation Core

Internal cartridge for use with the Azenta Life Sciences CoolBox 2XT, CoolBox XT, and CoolBox XT Starter Cooling Workstations, keeping samples cold/frozen for up to 16 hours.

  • Reusable
  • Uniform temperature distribution
  • Up to 16 hours of sample cooling
  • Up to 8 hours of sample freezing

Jump To:

Details | Specifications | Order Info | Resources

Want to request a quote, a demo, or to contact an expert?

Place a Request
BUY ONLINE*

*Online availability to US only

Product Details

The CoolBox XT Cooling Workstation Core provides up to 16 hours of 0.5 to 4℃ cooling with lid on and over 10 hours with lid off in CoolBox XT and CoolBox 2XT Cooling Workstations. The Cooling Core provides up to 4 hours of 2°C cooling in CoolBox XT Starter cooling system. The Freezing Core provides up to 8 hours of below 0℃ freezing with CoolBox XT lid on and over 5 hours with lid off.

Both cooling and freezing cores feature a thermo-conductive surface for uniform temperature distribution.

Key Features

Secure Sample Preparation
  • Thermo-conductive surface for uniform temperature distribution
  • The Cooling Core features a 1 to 8°C temperature indicator
Broad Compatibility
  • The Cooling Core is suitable for use with all Cooling Workstations: CoolBox XT Starter, CoolBox XT and CoolBox 2 XT
  • The Freezing Core is suitable for use with all Cooling Workstation: CoolBox XT and CoolBox 2XT
How it Works: Ease of Use
  • Freeze the Core in -20°C freezer until frozen
  • Place frozen core in system base/holder
  • In CoolBox XT and CoolBox 2XT, keeping the lid closed helps extend sample cooling/freezing duration
  • Keep additional cooling or freezing cores in the freezer for flexibility and extended duration
  • CoolBox 2XT Cooling Workstation, Double Capacity holds two Cooling/Freezing Cores
Specifications
  Cooling Core Freezing Core
Core dimensions (L x W x H) 15.2 x 10.9 x 5.8cm 15.2 x 10.9 x 5.8cm
Cooling* in CoolBox XT Starter 4 hours n/a
Cooling* in CoolBox XT (lid open/closed) 10 hours/16 hours n/a
Freezing** in CoolBox XT (lid open/closed) n/a 5 hours/8 hours

* 0.5° to 4°C
** <0°C

Product Documentation



CoolBox XT Starter Cooling Workstation Open Platform, Single Capacity Instructions for Use

CoolBox XT Cooling Workstation, Single Capacity Instructions for Use

CoolBox 2XT Cooling Workstation, Double Capacity Instructions for Use

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

CoolBox XT Cooling Workstation Core
BCS-511 cooling core; 1 core; Buy Online*
BCS-512 freezing core; 1 core; Buy Online*

*Online availability to US only
