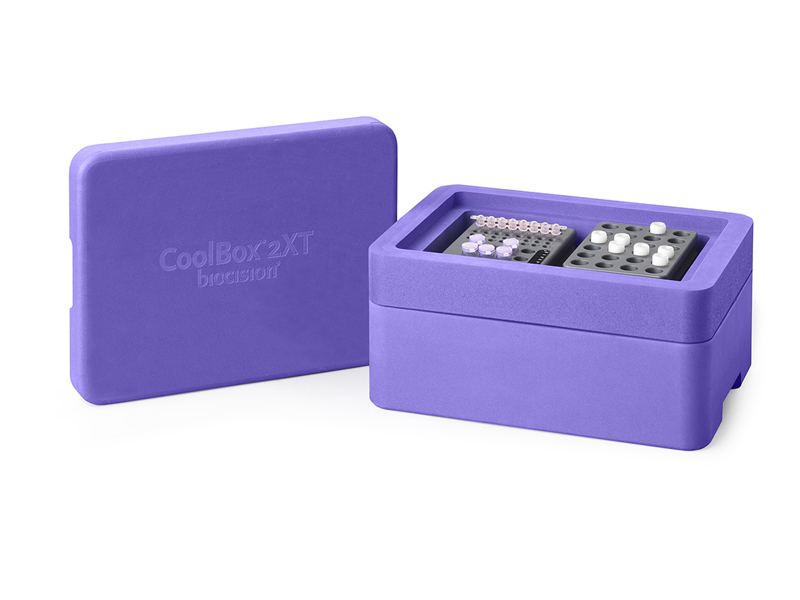

CoolBox™ 2XT Cooling Workstation, Double Capacity

CoolBox 2XT Cooling Workstation, Double Capacity ice-free bench top cooling workstations provide sample cooling or freezing without ice, electricity or batteries.

Fits a choice of CoolRack™ modules
Small footprint
Keeps samples cold for up to 16 hours
Keeps samples frozen for up to 8 hours

Want to request a quote, a demo, or to contact an expert?

Place a Request

BUY ONLINE*

*Online availability to US only

Product Details

CoolBox Ice-Free Cooling Workstation systems are bench top cooling workstations that provide sample cooling or freezing without ice, electricity or batteries. Ice-Free Cooling Workstation systems are versatile and accommodate a variety of sample formats and temperatures. The modular design enables the use of CoolRack thermoconductive sample modules to hold microfuge tubes, cryogenic vials, PCR tubes or plates, and more.

Key Features

Secure Sample Preparation

Operates without ice, batteries or electricity
Keeps samples cold at a uniform 0.5 to 4.0°C for up to 16 hours
Keeps samples frozen (<0°C) for up to 8 hours
The built-in 1-8ºC temperature indicator provides visual assurance of operational temperature while working

Broad compatibility

Versatile: accommodates most CoolRack modules
Small footprint ideal for use in the hood especially in keeping temperature sensitive solutions cold
To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the cartridge as needed

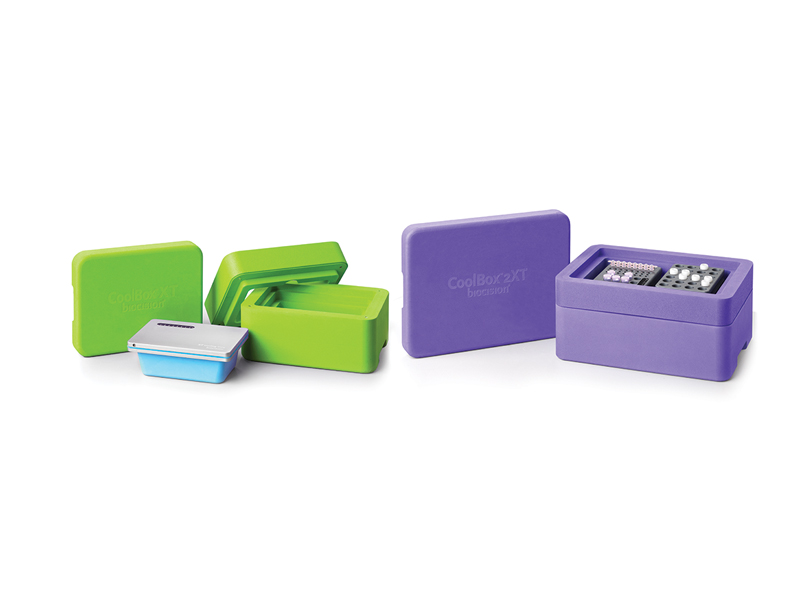

How it Works: Ease of Use

Freeze the Cooling/Freezing Core in -20°C freezer
Place frozen core in base/holder
Rest CoolRack module on cartridge
Module will equilibrate and maintain temperature via thermo-conductivity
To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the core as needed
Dry ice may be used in place of the cores to create a compact snap freezing workstation

Specifications

	CoolBox 2XT Cooling Workstation, Double Capacity
Internal dimensions (L x W x H)	21.0 x 14.3 x 13.4cm*
External dimensions (L x W x H)	26.5 x 20.0 x 15.0cm
For use with	tube and plate modules
Cooling** (lid open/closed)	10 hours/16 hours
Freezing*** (lid open/closed)	5 hours/8 hours

* Internal height of open space when core is in the base

** 0.5° to 4°C

*** <0°C

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

CoolBox 2XT Cooling Workstation, Double Capacity Ice-free cooling/freezing system for tube and plate modules; includes Cooling Workstation, Double Capacity base, collar, lid and 2 cores
BCS-503	with 2 cooling cores, purple; 1 system	BUY ONLINE*
BCS-503G	with 2 cooling cores, green; 1 system	BUY ONLINE*
BCS-503O	with 2 cooling cores, orange; 1 system	BUY ONLINE*
BCS-503PK	with 2 cooling cores, pink; 1 system	BUY ONLINE*
BCS-503-F	with 2 freezing cores, purple; 1 system	BUY ONLINE*

Combi Packs Pre-assembled CoolBox 2XT Cooling Workstations, Double Capacity
BCS-573	CoolBox 2XT PCR Sample Preparation System For use with 1 96-well PCR plate, 12 strip wells, 96 x 0.2ml tubes and 24 x 1.5 or 2.0ml microfuge tubes; includes 1 CoolBox 2XT, 1 CoolRack XT M24 and 1 CoolRack XT PCR96; 1 kit	BUY ONLINE*

*Online availability to US only
