Individual Access 96 Well Skirted Optical Bottom PCR Plate

96 individual tubes in plate format, low profile, flat optical bottom, 0.1ml clear polypropylene tubes, black rigid polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 180µl

  • Available barcoded on request

Place a Request

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Resources
  • Related Products
  • Place a Request

Overview

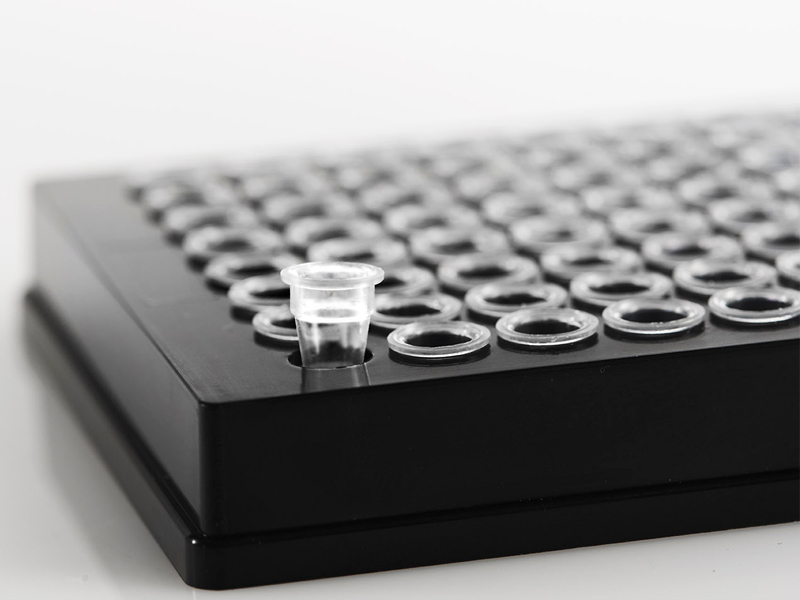

96 well, fully skirted, low profile format with each tube inserted separately into the plate frame, allowing for selection and removal of individual tubes from the plate. Each tube clicks into place in the frame ensuring tubes are secure once inserted.

We have now extended our Individual Access range to include PCR plates with optically clear flat bottom wells for microscopy applications. The Individual Access 96 Well Skirted Optical Bottom PCR Plates (next to their counterpart within our FrameStar® range, 4ti-0970) are currently unique in the market, being suitable for use in both microscopy and PCR, for example, when single cell sorting is followed by molecular biology applications such as qPCR and sequencing.

Due to their flat bottoms and stackability, these plates are well suited for small sample volume storage (such as compound libraries), with no risk of damaging the seal of the plate below. Additionally, the small well volume enables excellent sample recovery. The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR. Together with the SBS footprint, this makes the plate suitable for use with robotic systems, ideal for both small and high throughput labs. Empty frames are available for tubes to be transferred to. The frames can be re-used multiple times, depending on the application.

Key Features

  • Quality
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Tubes
    • Individually removable from the rigid frame, while the rest of the tubes can remain in storage, reducing freeze-thawing of the whole plate
    • Thin walled tubes are made from PP for optimal results in (q)PCR whilst also being suitable for storage and incubation
    • <100µl working volume, <180µl total well capacity
  • Frame
    • Rigid polycarbonate frame provides mechanical stability of the plate
    • Alphanumeric grid reference to aid well and sample identification
  • Use
    • Suitable for microscopy and small volume sample storage
    • Ideal for use with robotic systems
    • Fewer transfer steps as the same tube can be used for microscopy, (q)PCR and storage
    • Each tube can still be separated after sealing
    • Each tube can be individually heat sealed using the Individual Access Pierce Heat Seal Strong, such as the contents of each tube is left secure from cross contamination and evaporation for storage and transfer
  • Options
    • Also available as a FrameStar plate (4ti-0970) with fixed wells
    • Empty frames are available for tubes to be transferred to; frames can be re-used multiple times, depending on the application

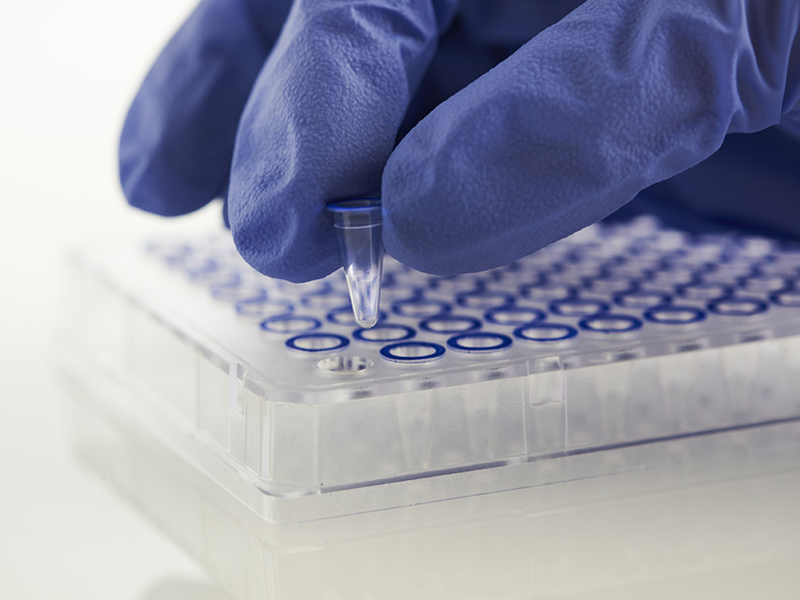

    • We also offer customization of the Individual Access Plates such as color coding of the individual wells; please contact an expert for details
    • Available barcoded upon request; learn more about our barcoding options
    • The plate can be sealed in one step using Individual Access Pierce Heat Seal Strong (4ti-05381/RA) on the Semi-Automated Sheet Heat Sealer (using the 59-2005 Individual Access adapter), resulting in individually sealed tubes with pierceable seals to allow for sample access

Specifications

Parameter Individual Access 96 Well Skirted Optical Bottom PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 15.50 ± 0.25mm
Well depth 12 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 180µl
Working volume <0.1ml (100µl)
Distance to center of A1 from top edge 11.24 ± 0.25mm
Distance to center of A1 from left edge 14.38 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Differences in tube format between the standard conical PCR tube and the flat bottom tubes
Figure 1

Figure 1

Differences in tube format between the standard conical PCR tube and the flat bottom tubes





  • Figure 1 (click on image to expand) illustrates the differences in tube format between the standard conical PCR tube and the flat bottom tubes
  • The surface area of the optical base is 7.74mm2, with a thickness of 0.5 mm
  • The total volume of a conical well is 0.2ml compared to 0.18ml for flat bottom tubes
  • The primary target application for optical bottom plates is assays that require the use of microscopy, for example, work with single cells including fluorescent imaging and cell sorting

Compatibility

  • AGILENT/STRATAGENE
    • Thermal Cyclers (96 well block): Robocycler Gradient
    • qPCR Cyclers (96 well block): AriaMx
  • BIO-RAD
    • Thermal Cyclers (96 well block): C1000 Touch | S1000
    • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
  • BIO-RAD MJ RESEARCH
    • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
    • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
  • EPPENDORF
    • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
    • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
  • PEQLAB/VWR
    • Thermal Cyclers (96 well block): peqSTAR 96X
  • SENSOQUEST
    • Thermal Cyclers (96 well block): Labcycler
  • TECHNE
    • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
    • qPCR Cyclers (96 well block): Quantica

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
Individual Access 96 Well Skirted Optical Bottom PCR Plate
96 individual tubes in plate format, low profile, flat optical bottom, 0.1ml clear polypropylene tubes, black rigid polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 180µl
4ti-0970/RA clear tubes, black frame; 50 plates
4ti-0970/RA-F black frame (no tubes, frame only); 10 frames

Resources

Small Volume Sample Storage Flyer

Small Volume Sample Storage Flyer

Brochures & Sell Sheets
PCR Plate-Instrument Compatibility

PCR Plate-Instrument Compatibility

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
RIndividual Access 96 Well Skirted Optical Bottom PCR Plates Technical Drawing

Individual Access 96 Well Skirted Optical Bottom PCR Plate Technical Drawing

Technical Drawings
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

4ti-0960/RA | Individual Access 96 Well Skirted PCR Plate | Tube Removal Detail

Individual Access 96 Well Skirted PCR Plate

Off

Low profile, individually removable 0.1ml polypropylene wells, rigid polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 200µl

4ti-0975/RA | Individual Access 96 Well Skirted Flat Bottom PCR Plate, 2D Coded | Bottom Detail

Individual Access 96 Well Skirted Flat Bottom PCR Plate, 2D Coded

Off

96 individual tubes in plate format, low profile, flat bottom 2D coded, 0.1ml clear polypropylene tubes, white rigid polycarbonate frame, linear barcoded, cut corner H1, working volume: <100µl,

4ti-0970 | FrameStar 96 Well Skirted Optical Bottom PCR Plate | Front

FrameStar® 96 Well Skirted Optical Bottom PCR Plate

On

Low profile, flat optical bottom, 0.1ml clear polypropylene wells, clear polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 180µl

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

59-1000 | Automated Individual Access Roll Heat Sealer

Automated Individual Access Roll Heat Sealer

Off

This automated roll heat sealer can seal individual wells or tubes, enabling researchers to leverage the benefits of the Azenta Individual Access plate and seal range whilst maintaining the gold sta

59-2000 | Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA) | Side | Holder & Plate Detail

Semi-Automated Sheet Heat Sealer (formerly IntelliXseal™ SA)

BUY ONLINE
On

Semi-automated sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights

4ti-05381/RA | Individual Access Pierce Heat Seal Strong

Individual Access Pierce Heat Seal Strong

Off

96 individual foil seal spots on a removable backing, for sealing of individual wells; suitable for storage or PCR

4ti-0531/RA | Individual Access Pierce Heat Seal | Sealed Well Detail

Individual Access Pierce Heat Seal

On

Pierceable heat sealing foil, 96 individual seals in sheet format, high solvent resistance, resealable; suitable for PCR/storage/shipping

4ti-0778 | Cap Mat for PCR Plates

Cap Mat for PCR Plates

Off

96 individual caps in sheet format, blue TPE, pierceable; suitable for sealing all of our 96 well PCR plates

Horizontal Scroll
On

Place a Request

Request a Quote, Free Samples, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or free samples by filling out and submitting the form.

Home
Facebook twitter youtube linkedin
Copyright © 2023 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
