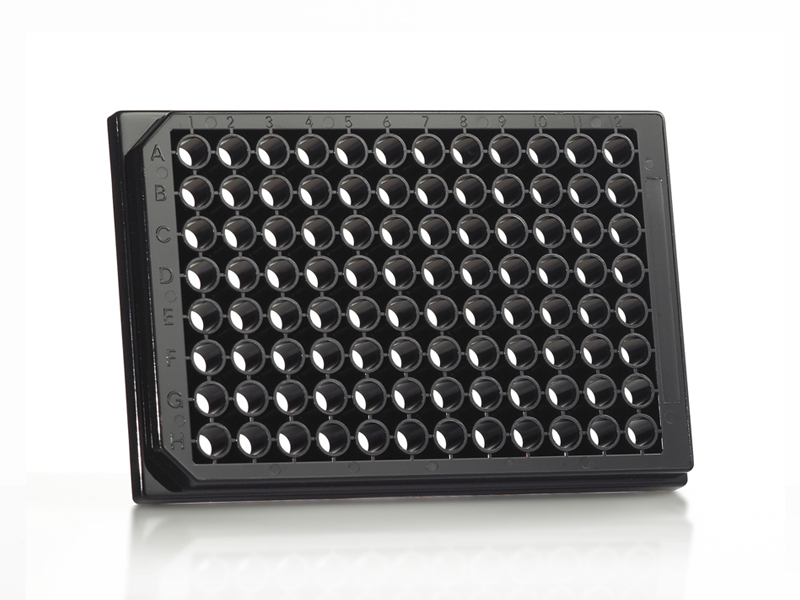

96 Well Optically Clear Tissue Culture Plate

96 well plates ideal for imaging, designed for high content screening (HCS) in drug development, confocal microscopy, homogeneous assays, fluorescent assays, colorimetric assays.

  • 190µm optically clear base
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Product Details

Optically Clear Tissue Culture Plates have been designed for high content screening (HCS) assays in drug development and related areas. They are also suitable for homogeneous assays, employing fluorescence intensity, FRET and TR-FRET where measurements are bottom-read. The high-quality optical base plate assures the necessary accuracy and consistency for automated high throughput systems, generating optimum signal-to-noise ratios. Using state-of-the-art manufacturing technology, we have developed a product which offers several key advantages to the end user. Learn more about the features and benefits of the Optically Clear Tissue Culture Plate range.

Optically Clear Tissue Culture Plates are assembled using unique patented laser welding technology which reduces auto fluorescence and does not inhibit cell growth. Available with 190µm polystyrene base. Available TC treated: our advanced tissue-culture (TC) treatment method evenly coats each well for optimal cell adhesion properties for highest reproducibility between wells, plates and batches.

Key Features

Quality
  • Leak free
  • Free from DNase, RNase, human genomic DNA, and cyto-toxic
Wells
  • Optimum signal-to-noise ratios
  • Good cell adhesion
  • Wicking and bubble formation eliminated
Frame
  • SBS footprint
  • Alphanumeric grid reference
Use
  • Recommended for confocal microscopy due to reduced cross-talk and superior base flatness
  • Reduced auto fluorescence ensures their suitability for fluorescent assays
  • Suitable for assays that measure absorbance in the visible light range (400-900nm wavelengths)
  • Suitable for colorimetric assays
  • Suitable for homogeneous assays
  • Suitable for use in BMG lab tech, Molecular Devices, Promega Glomax and other plate readers
  • Suitable for adhesive and heat sealing: our Moisture Barrier Seal 96 (4ti-0516/96) is recommended as it is optically clear and allows repeated imaging without removal, reducing contamination risks
Options
  • Available with 190µm polystyrene base
  • All plates come sterilized, apart from 4ti-0224
  • TC treated option available (4ti-0221)
  • Available barcoded upon request; learn more about our barcoding options
Specifications
  96 Well Optically Clear Tissue Culture Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 14.35 ± 0.25mm
Well depth 10.8 ± 0.25mm
Well diameter 6.3 ± 0.10mm
Distance to center of A1 from top edge 11.24 ± 0.25mm
Distance to center of A1 from left edge 14.38 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

96 Well Optically Clear Tissue Culture Plate
190µm clear base imaging microplate, black frame
4ti-0221 sterile, TC treated; 24 plates with lids
4ti-0223 sterile; 30 plates
4ti-0224 non-sterile, untreated; 30 plates
Lids
4ti-0282 96 Well Microplate Lid; 80 lids
4ti-0283 96 Well Microplate Lid, sterile; 80 lids
