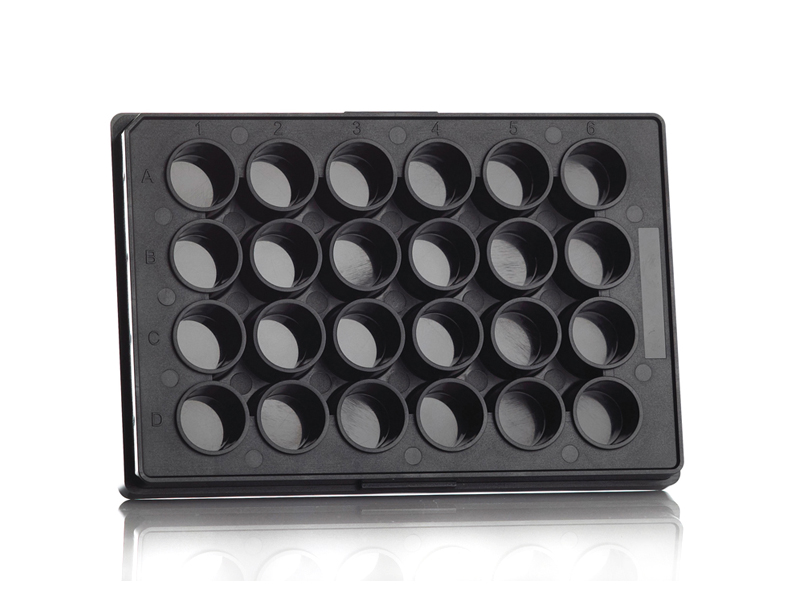

24 Well Assay Plate

1.88ml round wells, flat base, polystyrene, cut corner A1

  • Available barcoded on request
Overview

The Azenta Life Sciences 24 well polystyrene assay plates have flat bottom wells and have been designed for fluorescence applications. The plates give optimum results for most top-reading instruments and conform to standard SBS footprint. Black plates have a low background fluorescence and minimize light scattering. This high quality plate assures the necessary accuracy and consistency for automated high throughput systems.

Key Features
  • Quality & Material
    • Made from polystyrene, a hard material with optical clarity
    • Non-sterile as standard
    • Leak-free
    • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Wells
    • Flat bottom wells, designed for optical imaging and cell culture application
    • Round wells, for reduced droplet effects and wicking
  • Frame
    • Alphanumeric grid reference to aid well and sample identification
    • SBS footprint
  • Use
    • Best used for cell culture, fluorescence, luminescence, imaging and light assays, ELISA, and homogeneous assays
    • Compatible with plate readers and ideal for use with automation
  • Options
    • Available as a black microplate, ideal for low background fluorescence; it minimizes light scattering, suitable for fluorescent and light assays and imaging, recommended for top reading fluorescence instrumentation
    • Sterilization available upon request
    • Available barcoded upon request; learn more about our barcoding options
    • Our Moisture Barrier Seal 24 (4ti-0516/24) is recommended as sealing option, as it is optically clear and allows repeated imaging without removal, reducing contamination risks

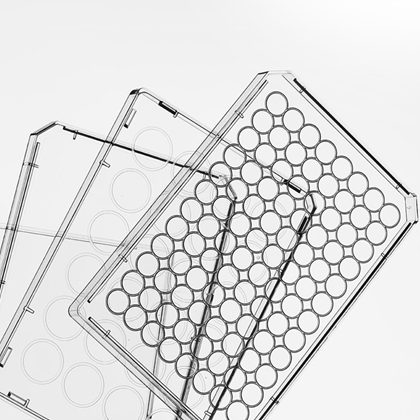

    • Lids available
Specifications
Parameter 24 Well Assay Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 15.00 ± 0.25mm
Well depth 12.50 ± 0.25mm
Well diameter 14.50 ± 0.10mm
Distance to center of A1 from top edge 15.74 ± 0.25mm
Distance to center of A1 from left edge 18.88 ± 0.25mm
Pitch (distance between A1 and A2) 18.00mm
Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
24 Well Assay Plate
1.88ml round wells, flat base, polystyrene, cut corner A1
4ti-0262 black; 100 plates
Lids
4ti-0284 24 Well Microplate Lid; 80 lids
4ti-0286 24 Well Microplate Lid, sterile; 80 lids
