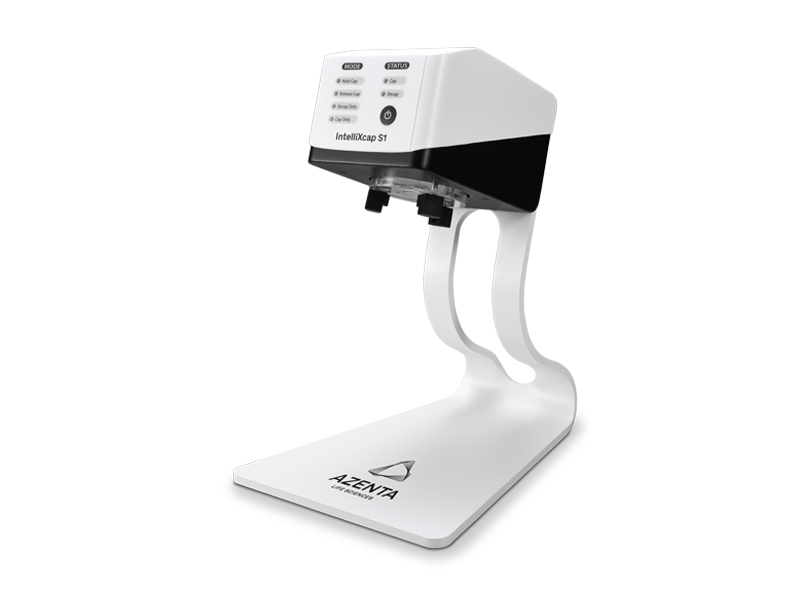

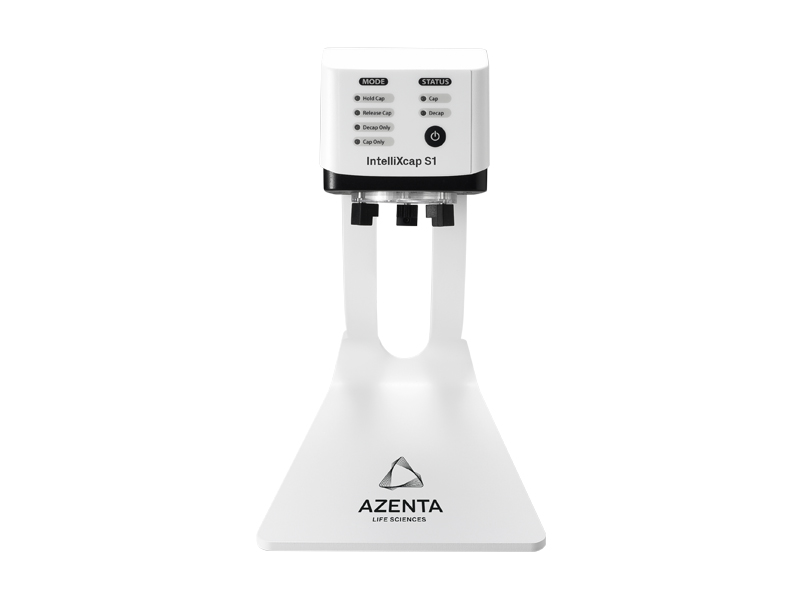

IntelliXcap™ S1 Semi-Automated Screw Cap Single Tube Decapper/Recapper

The IntelliXcap S1 Semi-Automated Screw Cap Single Tube Decapper/Recapper simplifies tube handling – without requiring a gripper change, the IntelliXcap S1 is fully compatible with different volumes of internally and externally threaded tubes, offering an uncomplicated solution for demanding daily tasks.

Reduces risk of repetitive strain injuries
Broad compatibility
Easy to use, one-handed operation

Jump To:

Details | Specifications | Order Info | Resources

Want to request a quote, a demo, or to contact an expert?

Place a Request

Product Details

Designed for larger master sample tubes, including centrifuge, cell culture, and glass, the IntelliXcap S1 is great for automating the handling of a wide range of internal and external thread tubes.

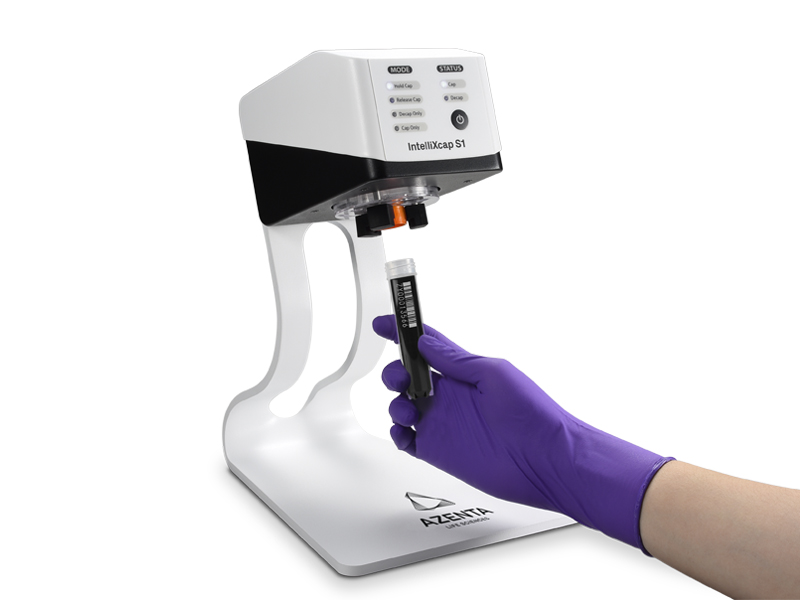

Easy to use, ergonomic, one-handed design, reduces the risk of repetitive strain injury, all while saving valuable time.

Key Features

Reduce Strain and Streamline workflow

Consistent torque application applied to every cap, which adheres to manufacturer specifications for optimal seal quality
Reduces sample handling time due to manual decapping/recapping, while increasing throughput with consistency
The compact unit fits seamlessly into workbenches, and safety cabinets, requiring little space
The cost-effective price point provides exceptional value for laboratory workflows.

Broad Compatibility for Every Laboratory

Handles a diverse range of tube types, from cryotubes to 50 mL centrifuge tubes, without requiring a cap gripper change.

Cap diameter range: 11–40 mm
Supports a variety of tubes, including:
- 50ml centrifuge tubes
- 15ml centrifuge tubes
- Microcentrifuge tubes
- Cryotubes

Technical Highlights

Handles internal and external thread tubes
Designed for larger master sample tubes, including centrifuge, cell culture, and glass tubes.
Reduces the risk of injury from repetitive movements with ergonomic, one-handed operation

Specifications

	IntelliXcap Semi-Automated Screw Cap Single Tube Decapper/Recapper
Dimensions (D x W x H)	240 x 170 x 300mm
Weight	3.8kg
Cycle time cap/decap	<3 sec (different cycle times available, to accommodate a wide range of consumables)
Compatibility	11–40mm diameter screw caps
Sensing method	Pressure sensor
Power adapter	Input: AC100 – 240V, 50/60Hz Output: DC 24 V, 2.7 A, 65 W

Product Documentation

IntelliXcap Semi-Automated Screw Cap Single Tube Decapper/Recapper User Manual

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

IntelliXcap Semi-Automated Screw Cap Single Tube Decapper/Recapper
46-0001	1-channel, compatible with large format sample storage tubes and vials; 1 decapper/capper
46-6002	Gripper Set, 1-channel, compatible with large format sample storage tubes and vials; 1 gripper set
