7.6ml Tri-coded Tube, 24-format, External Thread

The 7.6ml Tri-coded Tube, 24-format, External Thread offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities.

  • Code readable without removing tubes from racks
  • Suitable for cryogenic storage
  • Available bulk
  • Sealable with standard/auto friendly screw caps

Want to request a quote, a free sample pack, or to contact an expert?

*Online availability to US only

Product Details

Offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities. Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers.

Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage. Developed to exceed the demands of sample security, management and tracking in modern high density storage applications.

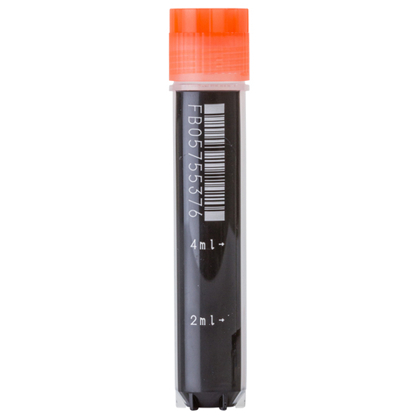

Each tube features a permanent 2D code laser etched in high contrast on the tube base, a permanent 1D linear barcode and human-readable number laser etched in high-contrast on the tube side. All three codes are identical and auditing processes guarantee all three codes match; standard 2D coding option is black on white.

Key Features

Secure Sample Storage & Tracking
  • Next Generation manufacturing techniques
  • Made from high-quality virgin PP
  • Permanently laser etched 2D code on base, 1D linear barcode and human readable number on the side, ensuring a permanent link between sample and data
  • 2D codes readable without removing tubes from racks
  • High contrast 2D codes are more reliably readable in frost or condensation conditions
  • 100% quality control, each tube is tested to ensure both readability and uniqueness
  • Leak tested to ensure sample security
  • External thread tubes provide greater working volume than internal thread tubes
  • Suitable for sealing with automation friendly screw caps
  • Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

  • Automation friendly screw caps provide flexibility to use tubes across a range of industry-recognized automated tube handling platforms
  • Deforming compression seal is more effective than a silicone alternative
  • Cap and tube manufactured from the same material, preventing differential expansion during freeze-thaw cycles
  • Double start thread engages in a maximum rotation of 180°, facilitating automation
  • Non-silicone seal means the cap can never be overtightened
Racking Options

Environmentally Conscious: All SBS rack bases are now manufactured with up to 90% of recycled polypropylene, sourced from repurposed material generated during the production of FluidX tubes. This recycled material meets the same stringent quality standards as existing racks, ensuring reliable and consistent performance, while promoting a more environmentally sustainable future.

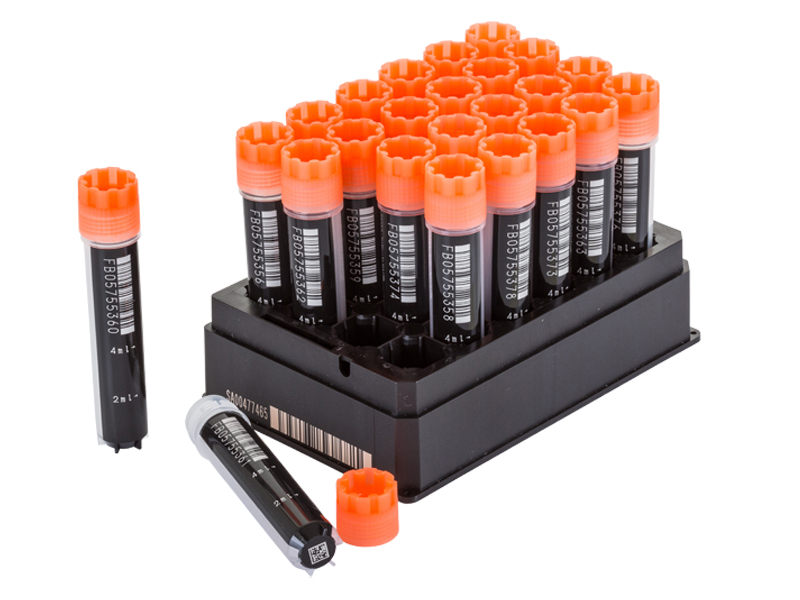

24 format SBS racks

  • TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
  • TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
  • LidLock: enables racks to withstand a 1m drop test for added sample security
  • Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
  • Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks
Specifications
  7.6ml Tri-coded Tube, 24-format, External Thread (with automation-friendly cap)
Max. working volume 7.6ml
Tube height 77.4mm
Tube height with cap 83.6mm
Inner diameter 13.0mm
Outer diameter with cap 17.0mm
Center to center 18.0mm
Minimum temperature -196°C
Tube height in rack 84.7mm
Overall rack height (including lid) 88.5mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

7.6ml Tri-coded Tube, 24-format, External Thread
2D code on base, 1D linear barcode and human readable number on side
66-9302 capped with automation friendly cap, bulk; 240 tubes; Buy Online*
65-9303 uncapped, bulk; 240 tubes



Compatible Racks
66-9455 24-format Rack, 1 Piece Rack Base, with open bottom for reading on XTR readers; 10 racks; Buy Online*



Compatible Caps
66-9401 Automation Friendly External Thread Cap, orange, 24-format, bulk; 240 caps

*Online availability to US only
