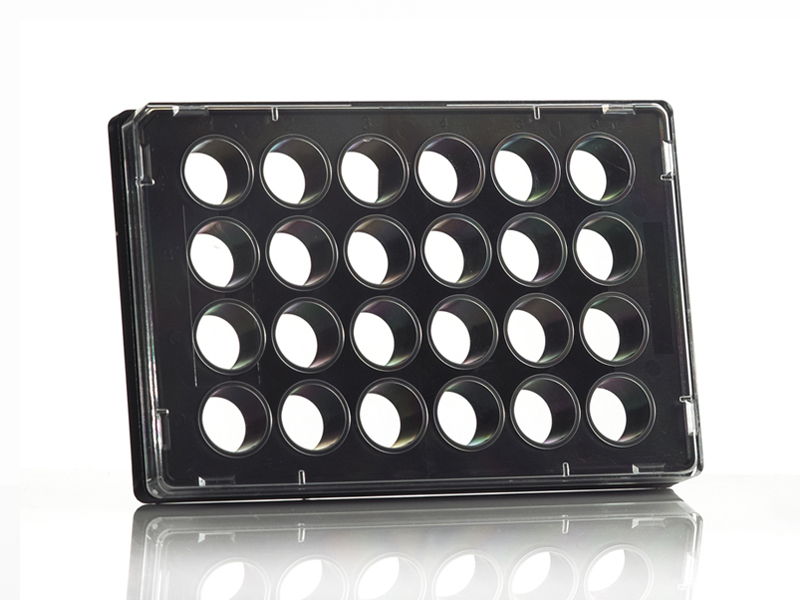

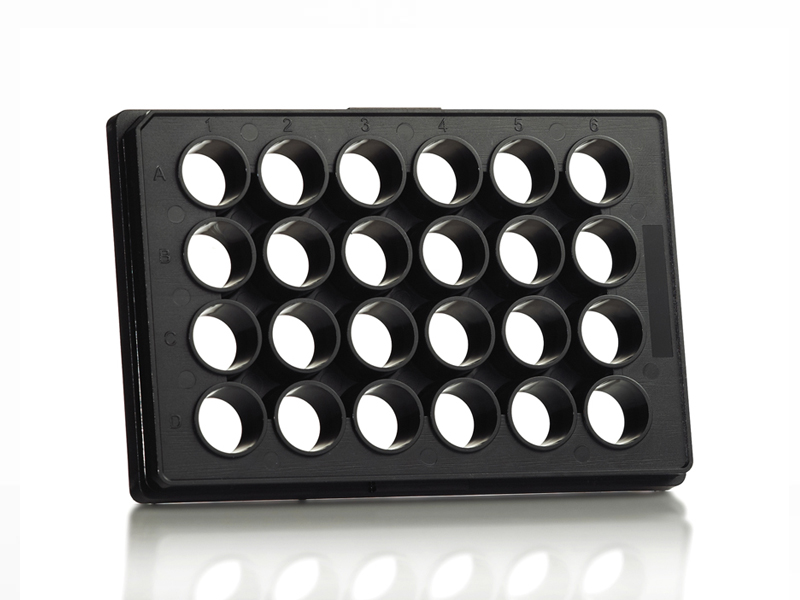

24 Well Optically Clear Tissue Culture Plate

190µm clear base imaging microplate, black frame

  • Available barcoded on request
Overview

Optically Clear Tissue Culture Plates have been designed for high content screening (HCS) assays in drug development and related areas. They are also suitable for homogeneous assays, employing fluorescence intensity, FRET and TR-FRET where measurements are bottom-read. The high-quality optical base plate assures the necessary accuracy and consistency for automated high throughput systems, generating optimum signal-to-noise ratios. Using state-of-the-art manufacturing technology, we have developed a product which offers several key advantages to the end user. Learn more about the features and benefits of the Optically Clear Tissue Culture Plate range.

Optically Clear Tissue Culture Plates are assembled using unique patented laser welding technology which reduces auto fluorescence and does not inhibit cell growth. Available with 190µm polystyrene base. Available TC treated: our advanced tissue-culture (TC) treatment method evenly coats each well for optimal cell adhesion properties for highest reproducibility between wells, plates and batches.

Key Features
  • Quality
    • Leak free
    • Free from DNase, RNase, human genomic DNA, and cyto-toxic
  • Wells
    • Optimum signal-to-noise ratios
    • Good cell adhesion
    • Wicking and bubble formation eliminated
  • Frame
    • SBS footprint
    • Alphanumeric grid reference
  • Use
    • Recommended for confocal microscopy due to reduced cross-talk and superior base flatness
    • Reduced auto fluorescence ensures their suitability for fluorescent assays
    • Suitable for assays that measure absorbance in the visible light range (400-900nm wavelengths)
    • Suitable for colorimetric assays
    • Suitable for homogeneous assays
    • Suitable for use in BMG lab tech, Molecular Devices, Promega Glomax and other plate readers
    • Suitable for adhesive and heat sealing: our Moisture Barrier Seal 24 (4ti-0516/96) is recommended as it is optically clear and allows repeated imaging without removal, reducing contamination risks
  • Options
    • Available with 190µm polystyrene base
    • All plates come sterilized, apart from 4ti-0244
    • TC treated option available (4ti-0241)
    • Collagen 1 treated option available (4ti-0245)
    • Poly D-Lysine treated option available (4ti-0246)
    • Available barcoded upon request; learn more about our barcoding options
Specifications
Parameter 24 Well Optically Clear Tissue Culture Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 15.00 ± 0.25mm
Well depth 12.50 ± 0.25mm
Well diameter 14.50 ± 0.10mm
Distance to center of A1 from top edge 15.74 ± 0.25mm
Distance to center of A1 from left edge 18.88 ± 0.25mm
Pitch (distance between A1 and A2) 18.00mm
Ordering Information

Use these part numbers to request a quote, a sample or to contact an expert:

Part number Description
24 Well Optically Clear Tissue Culture Plate
190µm clear base imaging microplate, black frame
4ti-0241 sterile, TC treated; 24 plates with lids
4ti-0243 sterile; 30 plates
4ti-0244 non-sterile, untreated; 30 plates
4ti-0245 sterile, Collagen 1 treated; 24 plates with lids
4ti-0246 sterile, Poly D-Lysin treated; 24 plates with lids
Lids
4ti-0284 24 Well Microplate Lid; 80 lids
4ti-0286 24 Well Microplate Lid, sterile; 80 lids
