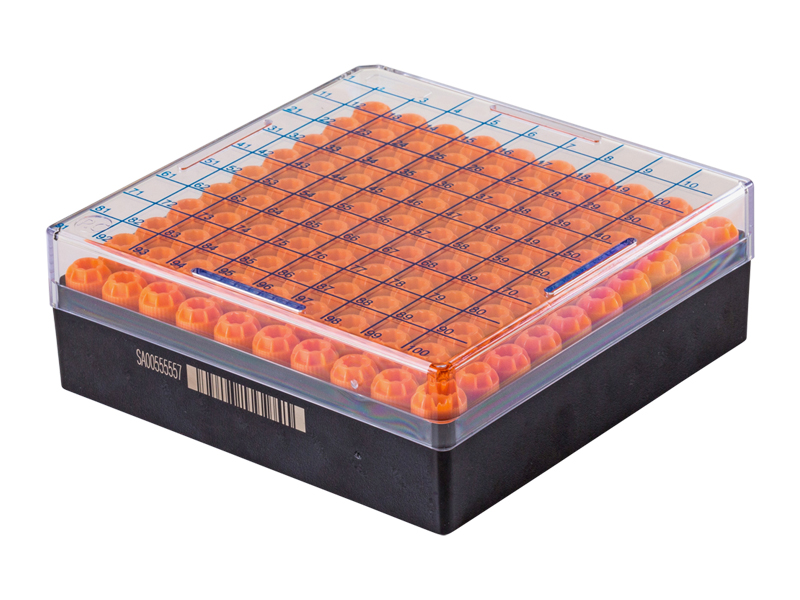

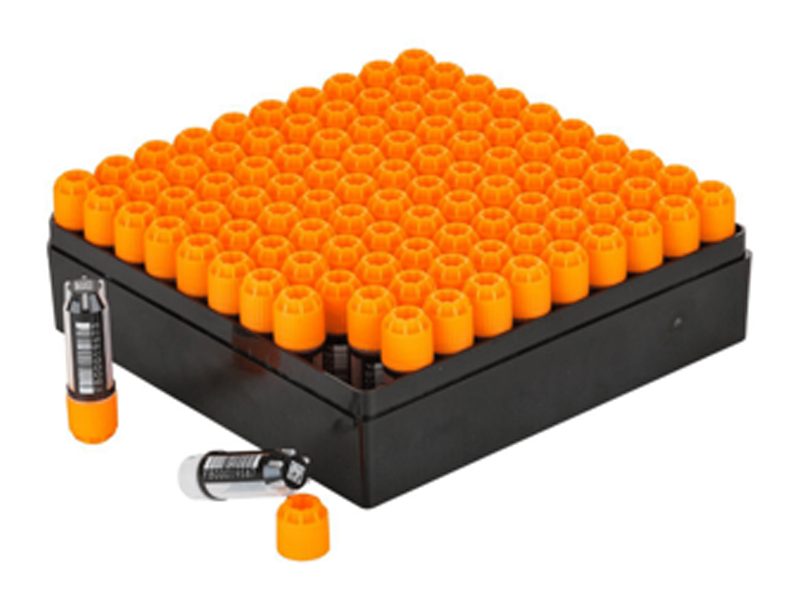

10x10 Cryo Storage Rack

The 10x10 Cryo Storage Rack is specifically aimed at users who have freezer racking set up for Cryo Freeze Boxes, wanting to store sample storage tubes such as the Azenta Life Sciences1.9ml Tri-Coded Sample Tube. The 10x10 Cryo Storage Rack is compatible with a broad range of tube formats.

Overview

Designed to fit in freezer racking set up for Cryo Freeze Boxes, the 10x10 Cryo Rack enables ease of access to samples with an open bottom to allow 2D Code reading on the Azenta Life Sciences Camera-Based Full Rack Barcode Readers. The 10x10 Cryo Box is compatible with a broad range of tube formats, allowing you to store legacy collections and maintain ease of access to your valuable samples.

Key Features
  • Properties & Use
    • Holds 100 tubes in 10x10 array
    • Cryo racks can be supplied with a unique 2D barcode identifier which can be read at the same time as the tube 2D barcode, to provide more secure sample tracking
    • Open bottom for 2D barcode decoding on Azenta Life Sciences Camera-Based Full Rack Barcode Readers
    • Compatible with 1.5 & 1.9ml Tri-Coded External Tubes
    • Unique identifier on every freeze box, in 1D & 2D format
    • Optimizes storage space by increasing sample density from 48 tubes to 100 tubes
Specifications
Parameter 10x10 Cryo Storage Rack
Rack size (W x L X H) 136.2 x 136.2 x 48.2mm (with lid)
Rack material Polycarbonate (black PP for direct laser coding)
Lid material Polycarbonate (clear with rack position markings)
Rack coding options Direct laser-etched 1D linear barcode, 2D rack ID on base of rack
Temperature range Min: -196°C (gas phase liquid nitrogen); max: +130°C
Tube options 2.0ml External Jacket Tubes, 1.5 & 1.9ml External Next-Gen Jacket Tubes
Ordering Information

Use these part numbers to request a quote or to contact an expert:

Part number Description
10x10 Cryo Storage Rack
Black 10x10 polycarbonate cryo rack with clear lid, with laser-etched 1D linear barcode and 2D Rack ID
66-1800 10 racks
