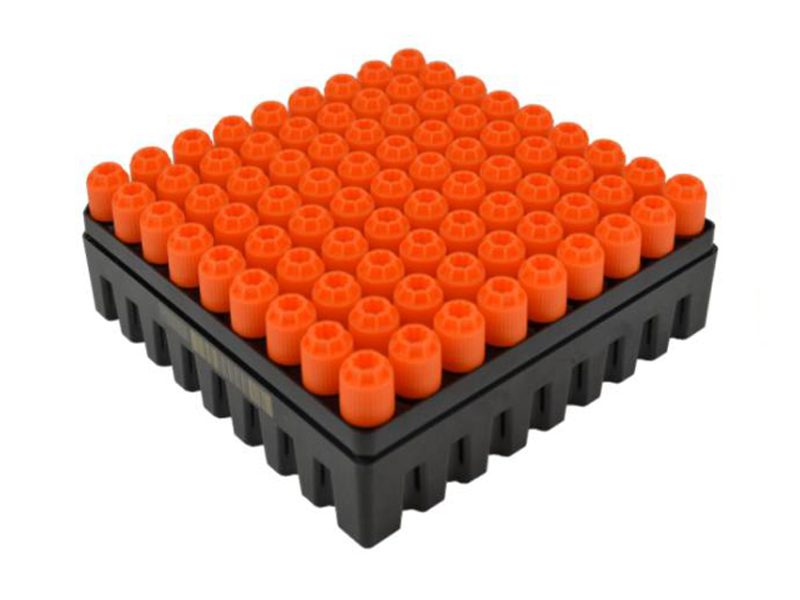

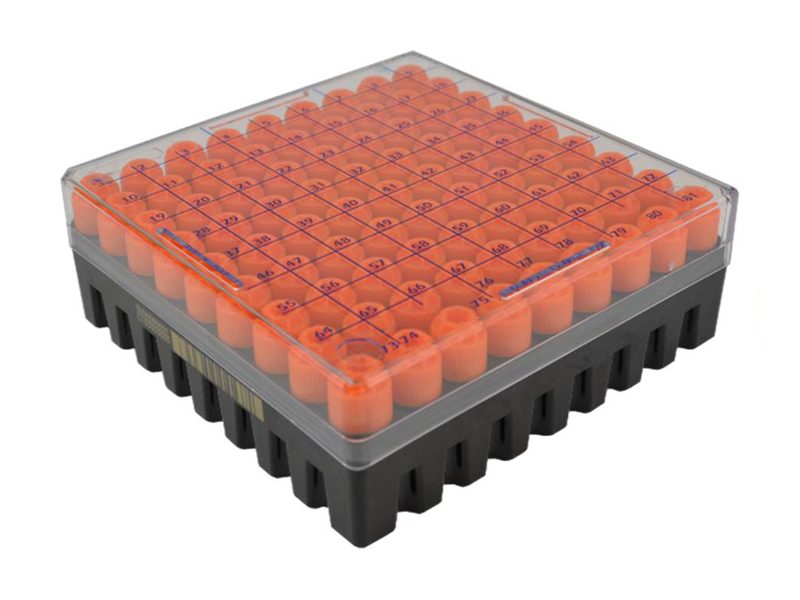

9x9 Cryo Storage Rack

The 9x9 Cryo Storage Rack is specifically aimed at users who have freezer racking set up for Cryo Freeze Boxes, wanting to store sample storage tubes such as the Azenta Life Sciences 1.9ml Tri-Coded Sample Tube. The 9x9 Storage Rack is compatible with a broad range of tube formats.

Overview

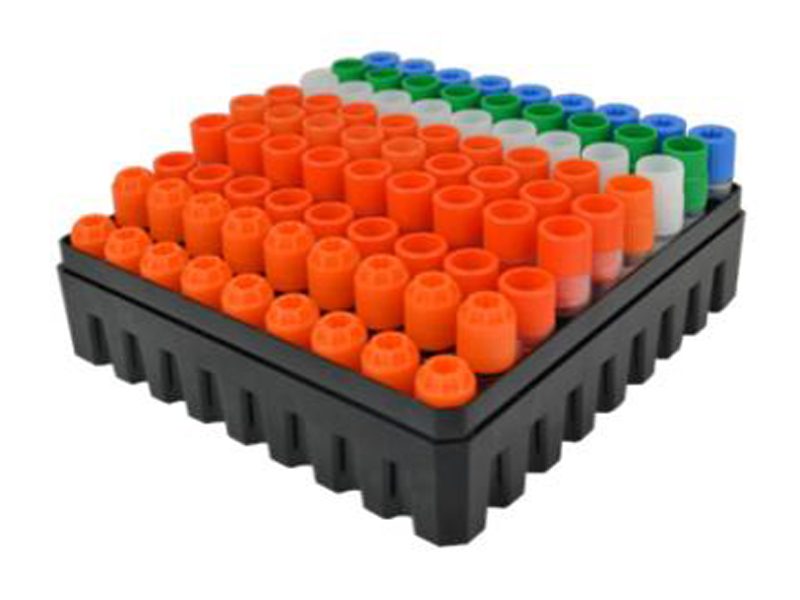

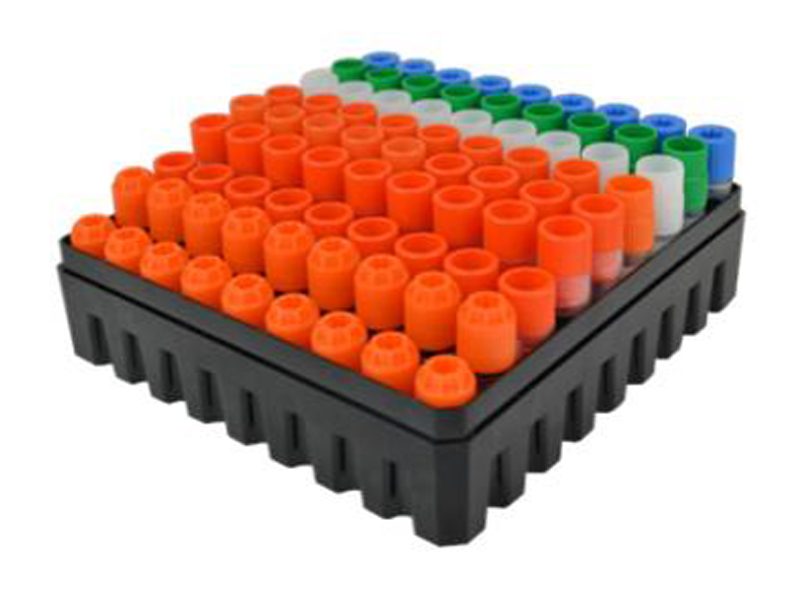

Designed to fit in freezer racking set up for Cryo Freeze Boxes, the 9x9 Cryo Rack enables ease of access to samples with an open bottom to allow 2D Code reading on the Azenta Life Sciences Camera-Based Full Rack Barcode Readers. The 9x9 Cryo Storage Rack is compatible with a broad range of tube formats, allowing you to store legacy collections and maintain ease of access to your valuable samples.

Key Features
  • Properties & Use
    • Enabling ease of access in a space efficient format
    • Holds 81 tubes in 9x9 array
    • Open bottom for 2D barcode decoding on Azenta Life Sciences Camera-Based Full Rack Barcode Readers
    • Optimizes storage space by increasing sample density from 48 tubes to 81 tubes
    • Cryo racks can be supplied with a unique 2D barcode identifier which can be read at the same time as the tube 2D barcode, to provide more secure sample tracking
    • Unique identifier on every freeze box, in 1D & 2D format
Specifications
Parameter 9x9 Cryo Storage Rack
Rack height Without lid: 32.5mm
With 66-1801 lid: 48.2mm
With 66-1802 lid: 54.0mm
Rack material Polycarbonate (black PP for direct laser coding)
Lid material Polycarbonate (clear with rack position markings)
Rack coding options Direct laser-etched 1D linear barcode, 2D rack ID on base of rack
Temperature range Min: -196°C (gas phase liquid nitrogen); max: +110°C
Ordering Information

Use these part numbers to request a quote or to contact an expert:

Part number Description
9x9 Cryo Storage Rack
Black 9x0 polycarbonate cryo rack with clear lid, with 2D Rack ID
66-1801 48.2mm height; 10 racks
66-1802 54.0mm height; 10 racks
