  • 4ti-0680-1 | Direct Tube Marker
  • 4ti-0680-1 | Direct Tube Marker | Printed Tube Detail

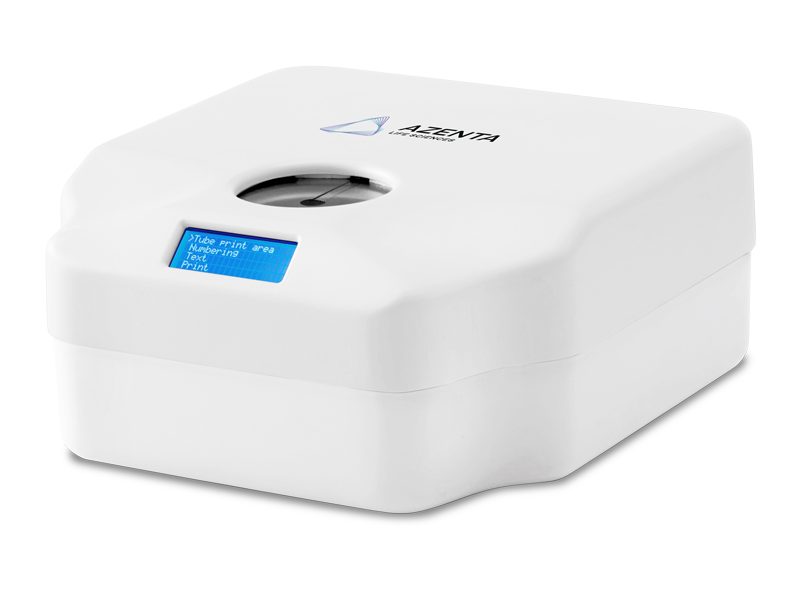

Direct Tube Marker

Designed to directly print text, linear barcodes, 2D codes and graphics on tubes using patent pending Thermal Pixel Printing technology

Place a Request

BUY ONLINE

BUY ONLINE
Online availability to US only

Jump to:
  • Overview
  • Key Features
  • Specifications
  • Compatibility
  • Ordering Information
  • Support Plans
  • Resources
  • Related Products
  • Place a Request

Overview

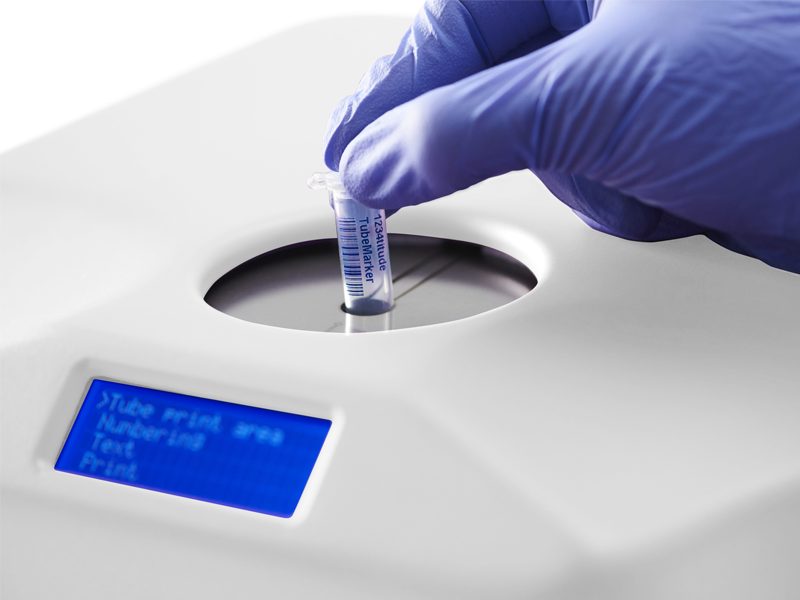

The Direct Tube Marker allows printing directly onto the surface of plastic laboratory tubes between 6mm and 30mm in diameter. There is no need for using labels or marker pens. Marking is resistant to ethanol, isopropanol, water, DMSO*, liquid nitrogen and mechanical abrasion. The prints are also stable over a wide temperature range (-196°C to 100°C). Markings do not transfer when touching the tubes. Several lines of text can be printed, for example: sample name, sampling site, your name, date and time etc.

All TrueType fonts available on the connected computer can be printed in a range of different sizes, which determines the maximum printable content. Bold and italic type is also available. The instrument can also print linear barcodes, datamatrix (2D) codes and graphic files (monochrome .bmp, .gif or .tiff) such as logos. Print orientation can be vertical or horizontal (except for barcodes which print vertically only).

The Direct Tube Marker includes an Automatic Printing Delay feature, where the instrument is able to detect the presence of a tube and automatically prints the next label entry in the software. This feature makes printing to the tube surface much easier and faster than marking by hand.

*Ribbon chemical resistance dependent on ribbon type

Key Features

  • Wide Tube Compatibility
    • Prints directly on the surface of plastic laboratory tubes; labels and stickers are not required
    • Most 0.2ml to 50ml volume tubes with a smooth surface can be used
    • Adjustable tube support platform for tubes without a lip/collar or for altering the label position
    • Adjustable sled pivot point improves overall print quality for larger labels and tubes; the added visual reference optimizes pressure point and increases print reproducibility
    • Multiple adapters are available to accommodate a wide range of tubes on the market
  • Printing Performance & Quality
    • Patent pending Thermal Pixel Printing technology
    • Prints text, linear barcodes, datamatrix (2D) codes and graphic files (monochrome .bmp, .gif or .tiff) such as logos
    • Both vertical and horizontal markings are producible
    • Clearer and more durable marking compared to marker pen
    • Labels printed in seconds
    • Marking is resistant to ethanol (70%), isopropanol (70%), methanol (>98.5%), DMSO*, pure haematoxylin, liquid nitrogen, water and mechanical abrasion**
    • Marking is temperature resistant up to 100°C and down to -196°C (liquid nitrogen)
    • Automatic printing delay for increased throughput and easier functionality

    *Ribbon chemical resistance dependent on ribbon type

    **Marking is not resistant to Xylene and moderately resistant to acetone

  • Ease of Use & Economic Efficiency
    • A 300m ink ribbon can be used to mark up to 100,000 tubes*** - competitive “per mark” cost
    • Black, white and metallic blue ink ribbons are available for clear printing on all tube colors and tubes with dark colored content
    • Changing the ink ribbon is quick and easy
    • Easy import of data from Microsoft® Excel such as .xls, .xlsx and .csv files
    • Optimized tube settings can be saved for future reference

    ***Depending on horizontal dimensions of the print e.g. when printing a 6 x 6 mm 2D code, one ribbon is sufficient for 50,000 prints

  • Prints per Ribbon
    • The maximum number of prints per ribbon depends on the width of the print
    • There is a 3mm gap generated after every print, no matter the size of label or the orientation of the text
    • This is to ensure fresh ribbon is available for the next print

    Vertical orientation

    • When printing text in vertical orientation, the width of print varies according to the number of lines, the font size and the font type
    • Reducing the font size and number of lines to be printed, increases the number of prints achievable from one ribbon
    • To calculate the number of tubes that can be printed from one ribbon (assuming the label size/data remains constant), the following parameters need to be considered: a) number of lines1, b) font type, c) font size
    • Check out the Prints per Ribbon table for detailed information

    Horizontal orientation

    • When printing text in horizontal orientation, the dimensions vary with the font size, the font type and most importantly, with the number of characters in each line
    • Reducing the font size and number of characters to be printed in one line, increases the number of prints achievable from one ribbon
    • To calculate the number of tubes that can be printed from one ribbon (assuming the label size/data remains constant), the following parameters need to be considered: a) number of characters2, b) font type, c) font size
    • Check out the Prints per Ribbon table for detailed information

    1The width of the print will be the same with each line, the number of characters in one line doesn't affect the number of prints achievable

    2The width of the print will vary with the length of the text and thus affects the number of prints achievable; the number of lines doesn’t affect the number of prints achievable

Specifications

Parameter Direct Tube Marker
Dimensions (W x L x H) 270 x 280 x 122mm
Weight 4.8kg
Printing area height 6-40mm*
Text orientation vertical or horizontal
Max. number of printing rows 8*
Power supply V in: AC 100-240 V; V out: 18 V DC; I out: 1 A
Computer interface USB 2.0

*Dependent on tube size; prints to straight part of tubes only

Compatibility

  • Tube Compatibility
    • The standard Direct Tube Marker package contains tube adapters with hole diameters of 8.5, 11.5 and 12.7mm
    • These adapters are compatible with the most common centrifuge and cryogenic tubes; 1.5ml/2ml tubes (4ti-0681, hole diameter 11.5mm), 2D cluster tubes (4ti-0683, hole diameter 8.5mm) and cryogenic tubes (4ti-0684, hole diameter 12.7mm)
    • The integrated adjustable tube support platform and magnetic pole attachment should be used to support tubes without a "lip" or external cap
    • The applicable tube adapter should be used for alignment
    • Additional tube adapters are available to support a wider range of tubes available on the market
    • Most notably, for blood and vacutainer tubes, as well as 15ml and 50ml falcon tubes
    • Custom adapters are also available on request
    • The frosted writing window of original Eppendorf tubes yields unreliable print quality and is almost impossible to print across the window due to a “step” in the frosted window (frosted surface height not flush with clean surface) resulting ribbon tears

    Azenta Life Sciences approves/disapproves the compatibility of a wide range of tubes available on the market according to internal print testing standards. Azenta Life Sciences cannot be held liable for the quality of the tubes or potential differences in manufacturing which may have an adverse effect on print quality.

  • Ribbon Resistance & Compatibility
    • Metallic blue, white and black ink ribbons are available to print on all kind of tube colors and tubes with dark colored content
    • Choose the ribbon color that gives the best contrast to the tube color and the color of the tube content respectively
    • Check out the Ribbon Resistance and Compatibility table

Ordering Information

Use these part numbers to request a quote, a demo or to contact an expert:

Part number Description
Direct Tube Marker
Designed to directly print text, linear barcodes, 2D codes and graphics on tubes using patent pending Thermal Pixel Printing technology
4ti-0680-1
(replacement for 76-0001)
BUY ONLINE*
Includes: 3 x tube adapters (4ti-0681, 4ti-0683 and 4ti-0684); power supply; power adapters for UK, EU and USA; magnetic support pole adapter (4ti-0680-084); allen key (4ti-0680-088); USB A-B cable, manual, Direct Tube Marker software (on USB-Stick), 12 months warranty; 1 unit
Adapters and accessories
4ti-0681** Tube Adapter for 1.5ml/2ml tubes, hole diameter 11.5mm; 1 adapter
4ti-0683** Tube Adapter for 2D cluster tubes and for 0.5ml tubes, hole diameter 8.5mm; 1 adapter
4ti-0684** Tube Adapter for cryo tubes, hole diameter 12.7mm; 1 adapter
4ti-0685-1 Tube Adapter for 2ml screw cap tubes, hole diameter 10.4mm; 1 adapter
4ti-0685-2 Tube Adapter for 15ml tubes, hole diameter 18mm; 1 adapter
4ti-0685-3 Tube Adapter for 50ml tubes, hole diameter 30mm; 1 adapter
4ti-0685-4 Tube Adapter for Matrix tubes, hole diameter 8.2mm; 1 adapter
4ti-0685-5 Tube Adapter for 0.2ml tubes, hole diameter 6.4mm; 1 adapter
Ribbons
4ti-0686 Ribbon, metallic blue, 300m x 40mm; 1 roll
4ti-0688 Ribbon, white, 300m x 40mm; 1 roll
4ti-0689 Ribbon, black, 300m x 40mm; 1 roll
4ti-0689-1 Ribbon, black, universal, 300m x 40mm; 1 roll
Warranties
4ti-0680-11 Warranty extension, second year; 1 extension
4ti-0680-12 Warranty extension, second and third year; 1 extension
4ti-0680-113 Warranty extension, third year; 1 extension

*Online availability to US only

**These items are included with the Direct Tube Marker (code 4ti-0680-1)

Please note: all Tube Adapters and Direct Tube Marker Ribbons are compatible with both the Direct Tube Marker (4ti-0680) and the Direct Tube Marker (4ti-0680-1)

Support Plans

Instrument Support Plans

Instrument Support Plans

Off

Azenta Life Sciences offers Instrument Support Plans to support your needs; these packages have been structured to offer flexibility so you can choose a package that suits you

Horizontal Scroll
Off

Resources

Direct Tube Marker Flyer

Direct Tube Marker Flyer

Brochures & Sell Sheets
Instrument Support Plans Flyer

Instrument Support Plans Flyer

Brochures & Sell Sheets
Direct Tube Marker Prints per Ribbon Comparison

Direct Tube Marker Prints per Ribbon Comparison

Brochures & Sell Sheets
Direct Tube Marker Ribbon Resistance and Compatibility

Direct Tube Marker Ribbon Resistance and Compatibility

Brochures & Sell Sheets
Direct Tube Marker Exemplary Prints

Direct Tube Marker Exemplary Prints

Brochures & Sell Sheets
Azenta Life Sciences Sample Consumables and Instruments Catalog

Azenta Life Sciences Sample Consumables and Instruments Catalog

Catalogs
Direct Tube Marker Operation Manual

Direct Tube Marker Operation Manual

Manuals & Guides
Horizontal Scroll
On

Related Products

Similar Products

See below for a selection of products in the same range:

75-0001, 75-0101 | Automated Tube Labeling System with Four Rack Tray, Loaded (formerly XTL) | Side

Automated Tube Labeling System (formerly XTL)

Off

A highly specialized printer and applicator for the automatic application of individually printed labels on microtubes within a 96 well format rack.

Horizontal Scroll
On

Compatible Products

See below for a selection of compatible products:

4ti-0798 | 2.0ml Microcentrifuge Tube

2.0ml Microcentrifuge Tube

BUY ONLINE
On

2.0ml microcentrifuge tubes, clear polypropylene, graduated, with frosted window and flat, safe-lock cap

67-0203-01 | FluidX 96-Format, 0.2ml External Thread, 2D-Coded Tube, Capped

0.2ml 2D-coded Tube, 96-format, External Thread

Off

0.2ml 2D-coded Tubes, 96-format, External Thread provide a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, incl

65-7502-01 | 1.8ml 2D-coded Tube, 48-format, Internal Thread, Capped

1.8ml 2D-coded Tube, 48-format, Internal Thread

LAST BUY
On

1.8ml 2D-coded Tubes, 48-format, Internal Thread provide a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, incl

Horizontal Scroll
On

Place a Request

Request a Quote, a Demo, or an Expert Consultation

Want to learn more about this product? Speak to one of our experts, or request a quote or a demo by filling out and submitting the form.

Home
Facebook twitter youtube linkedin
Copyright © 2023 Azenta US, Inc.

Footer menu

  • Privacy Policy
  • Cookie Policy
  • Terms and Conditions
  • Terms of Use
  • Careers
  • Subscribe
