8 Well PCR Tube Strip

8 well PCR tube strips with standard profile wells suitable for all standard 0.2ml block thermal cyclers. Recommended for low to medium throughput applications.

  • Made from virgin polypropylene
  • <200µl working volume, 300µl total well capacity
  • Combi packs with domed or flat optical cap strips
  • Can be cut into sections
Request Quote, Samples, Or Expert Consultation
Not the Right Strip? Try Our PCR Plate Selector

Jump To:

Details | Specifications | Compatibility | Order Info | Resources

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Molded from virgin polypropylene in our UK-based Class 7 ISO certified cleanroom production facility
Tubes
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
  • Individually numbered tubes
Use
  • Suitable for all standard 0.2ml block thermal cyclers
  • Recommended for low to medium throughput applications
  • Can be cut into sections
Options
  • Available with strips of domed (4ti-0780) or flat optical (4ti-0784) sealing caps
Specifications
  8 Well PCR Tube Strip
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)

Product Documentation

8 Well PCR Tube Strip Technical Drawing

Plate-Instrument Compatibility Table

Compatibility

The 8 Well PCR Tube Strip is compatible with instruments (thermal cyclers, qPCR cyclers, or sequencers) from the following manufacturers:

ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
  • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Surecycler 8800
  • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
  • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
  • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
BIOER TECHNOLOGIES
  • Thermal Cyclers (strips only): GeneQ
  • Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
  • Thermal Cyclers (strips only): Genecycler
  • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (strips only): Mini Gradient
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
  • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/ X2e
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
  • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TAKARA
  • Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
  • Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
  • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended strip options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

8 Well PCR Tube Strip
Standard profile, 0.2ml wells, clear polypropylene, working volume: <200µl, total well capacity: 300µl; suitable for all standard 0.2ml block thermal cyclers

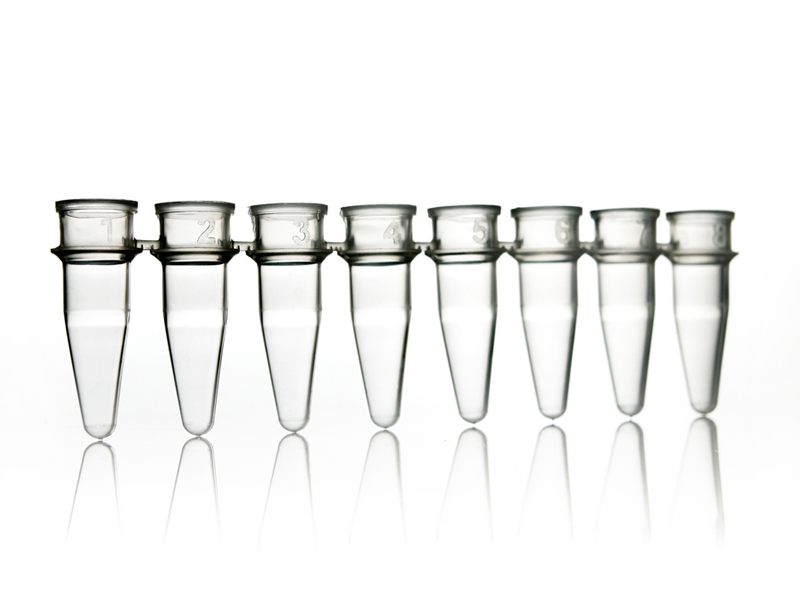

4ti-0781 clear wells, without caps; 125 tube strips
Combi Packs

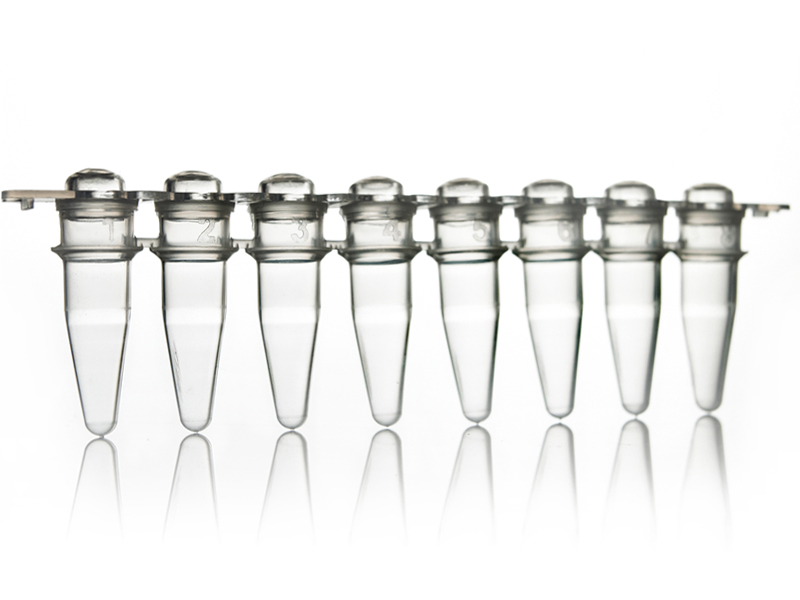

4ti-0780 4ti-0781 + strips of domed caps; 125 tube strips + 125 cap strips

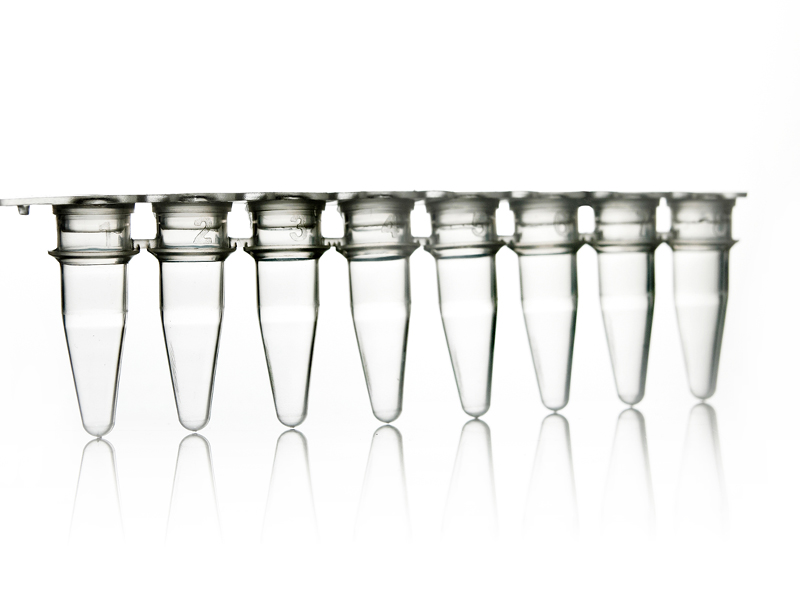

4ti-0784 4ti-0781 + strips of flat caps; 125 tube strips + 125 cap strips
