12 Channel Reservoir Plate

12 channel reservoir plates suitable as collection plates from filter systems, perfect for storing volumes of samples to be pipetted into other microplates for further applications.

  • Made from virgin polypropylene
  • 21ml channels and 290ml open format options
  • Available barcoded on request

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

Our 12 Channel Reservoir Plates are perfect for storing volumes of samples to be pipetted into other microplates for further applications. Both plate formats – open format and 12 column format – are compatible with standard 12 and 96 well channel pipettes, and are suitable for automated systems, for instance the PerkinElmer® Sciclone® NGS Workstation.

These plates are manufactured in cleanroom facilities which are certified free of RNase, DNase, human genomic DNA and endotoxins. We use only the highest medical grade virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroform.

Pyramid channel bases are best for small volume recovery. The standard SBS footprint ensures its compatibility with automation.

Key Features

Quality & Material
  • Made from polypropylene, a material with very low biomolecular binding characteristics, a high temperature tolerance and resistance to many standard laboratory chemicals, including DMSO
  • Stackable
  • Free from RNase, DNase, human genomic DNA and endotoxins
Channels

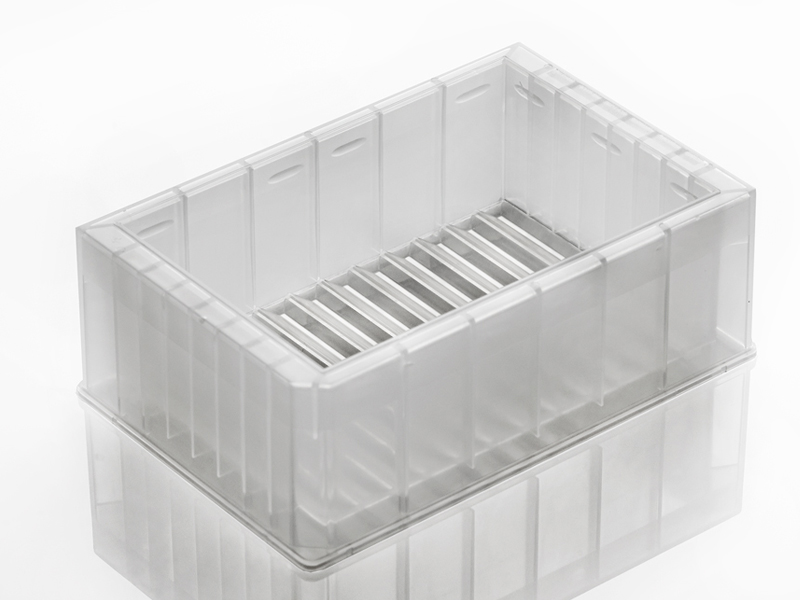

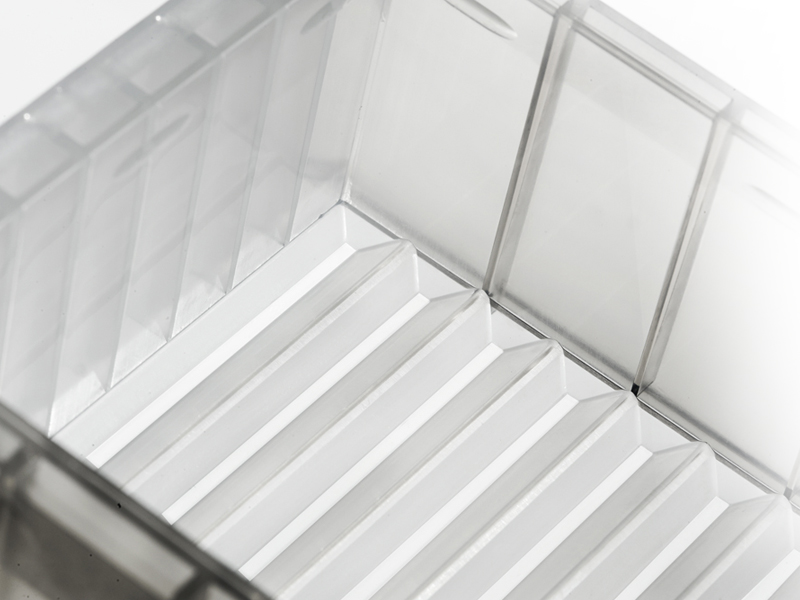

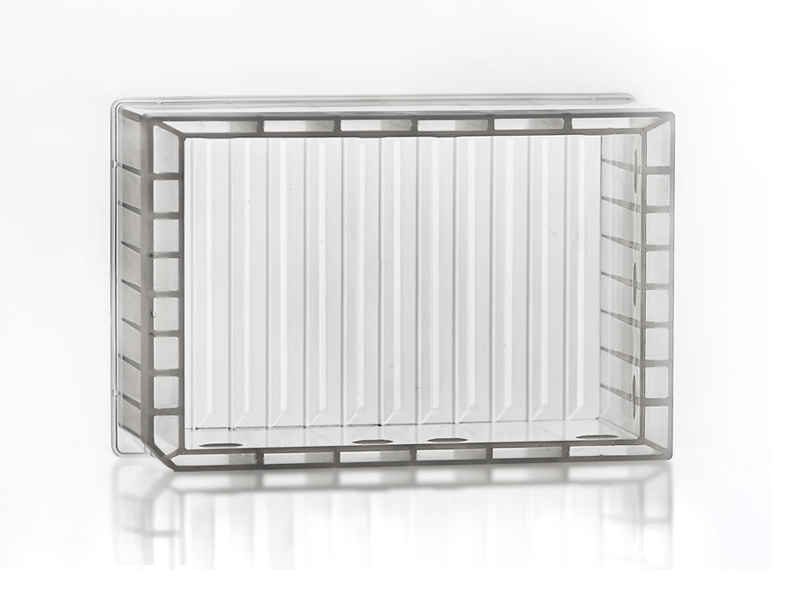

  • Pyramid channel bottom, perfect for maximum sample retrieval; both the open format plate (4ti-0133) and the 12 channel plate (4ti-0131) have pyramid bases

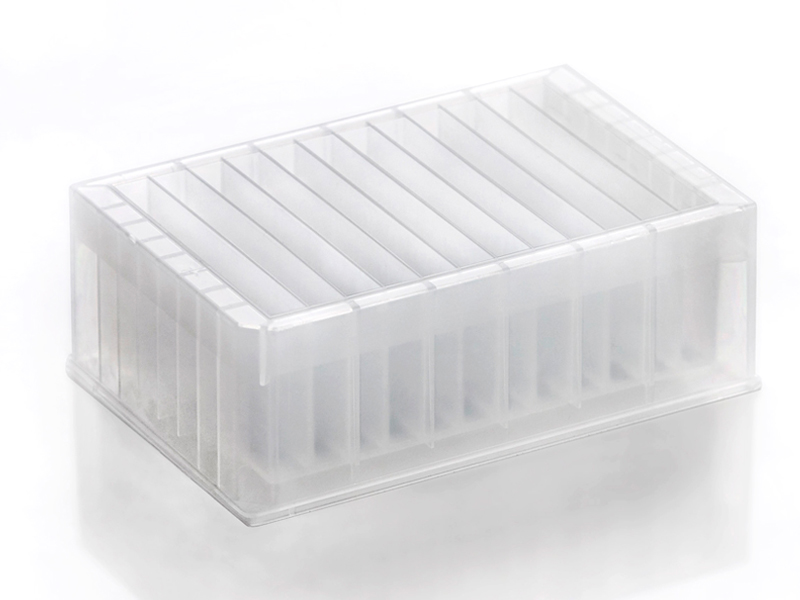

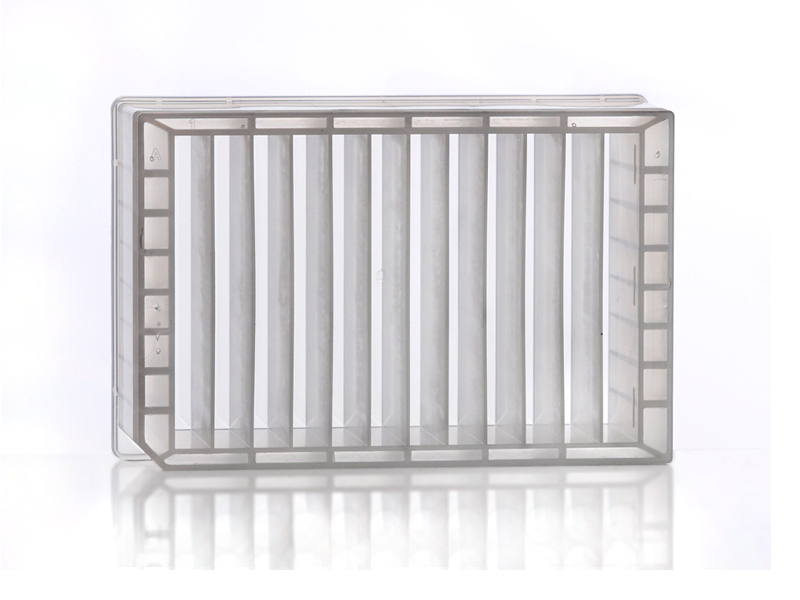

  • Rectangular channels (4ti-0131), to ensure the best use of space and allow the use of multichannel pipettes
Frame
  • SBS footprint
Use
  • Perfect for maximum sample retrieval; even the smallest volume can be retrieved as it gathers in the base of the pyramid, and can be easily taken in by a pipette
  • Compatible with plate readers and ideal for use with automation
  • Suitable as a collection plate from filter systems
  • Temperature range for use -80°C to 120°C
Options
  • Available barcoded upon request; learn more about our barcoding options
  • Non-sterile as standard, sterilization available upon request; contact an expert for details and pricing
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

12 Channel Reservoir Plate
12 channel reservoir plate, pyramid base, clear polypropylene
4ti-013121ml channels; 5 x 5 plates
4ti-0133290ml open format; 5 x 5 plates
