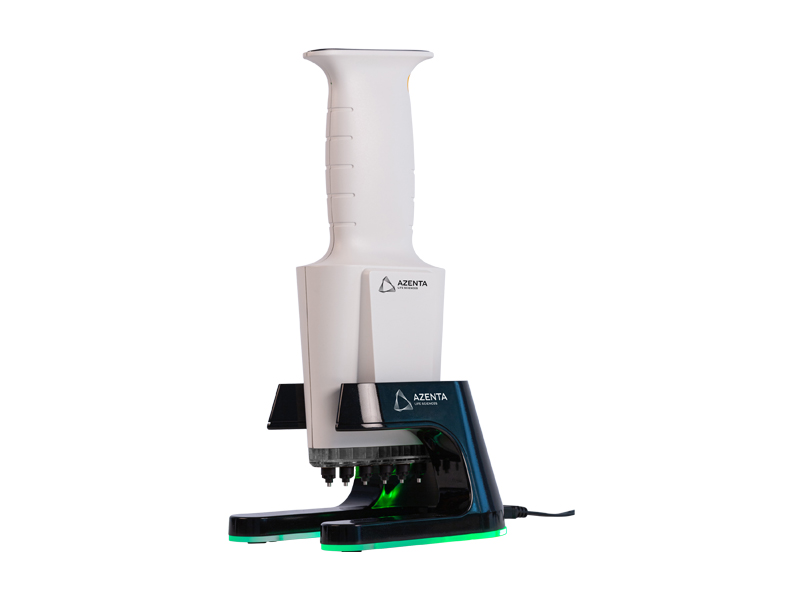

IntelliXcap™ M6 Semi-Automated Handheld Screw Cap Decapper, 6-channel

Portable and lightweight, the IntelliXcap M6 Semi-Automated Handheld Screw Cap Decapper is designed for use in any laboratory. Capable of capping a single column of 6 screw caps in under 4 seconds, the instrument offers consistent sealing for each and every tube.

Precise torque control with individual motors
Cap driver cartridges for different labware types
Swiftly decaps a single column in under 4 seconds

Request Quote, Demo, Or Expert Consultation

Jump To:

Details | Specifications | Order Info | Resources

Product Details

The IntelliXcap™ M6 delivers a versatile and user-friendly solution for capping and de-capping 48-format screw caps in low- to mid-throughput workflows. Its smart interchangeable cartridge system makes switching between tube types effortless; just align the cap drivers with the cartridge and snap it into place. Designed for compatibility with Azenta external screw-capped tubes, the IntelliXcap M6 is ready to grow with your needs as new cartridges become available.

Key Features

Designed with the User in Mind

Lightweight, ergonomic, semi-automated handheld screw cap Decapper, 6-channel
Compatible with 48-SBS format tubes
Caps a single column in under 4 seconds; caps/de-caps a complete rack of tubes in less than 90 seconds
All caps are tightened to the same torque to create a secure seal
Processes over 40 racks on one charge, with the flexibility to keep working by connecting to mains power if the battery runs low
Includes docking station for instrument charging and placement/storage for contamination-free handling of caps

Flexibility for Ease of Use

Single ‘action’ button operation to de-cap, re-cap and eject caps
Option to eject caps onto cap carrier using dedicated “Eject” button
Designed to be used by both left and right-handed users
Unit can be operated by battery charge or powered through AC plug in
Interchangeable cartridges, easy to switch between cap types

Talk to us today! Drop a comment when you request a quote to let us know what tubes you’re using: we’re happy to come up with a solution cut out to fit your unique application need

Specifications

	IntelliXcap M6 Semi-Automated Handheld Screw Cap Decapper, 6-channel
Dimensions (W x H x L)	95 x 50 x 250mm
Weight	380g (including a cartridge)
Charging time	Approximately 2 hours
Power supply	Input: AC 100 – 240V, 50/60Hz 1A-0.45A Output: 9V DC, 4A
Power jack	USB C
Battery	Lithium-ion polymer battery 8.4 V/1500 mAh
Operating temperature	10 to 35°C
Relative humidity (non-condensing)	10-95%
Storage temperature	-10 to 60°C

Product Documentation

IntelliXcap M Series Semi-Automated Handheld Screw Cap Decapper User Manual

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

IntelliXcap M6 Semi-Automated Handheld Screw Cap Decapper, 6-channel
46-9011	IntelliXcap M6 Semi-Automated Handheld Screw Cap Decapper, 6-channel, includes 6-channel decapper, docking station (46-9001), set of power cables, operation manual, cartridge for Azenta External Thread (48-9015-01) for 48-SBS format racks)

Docking Stations & Cartridges
46-9001	Docking Station with set of power cables

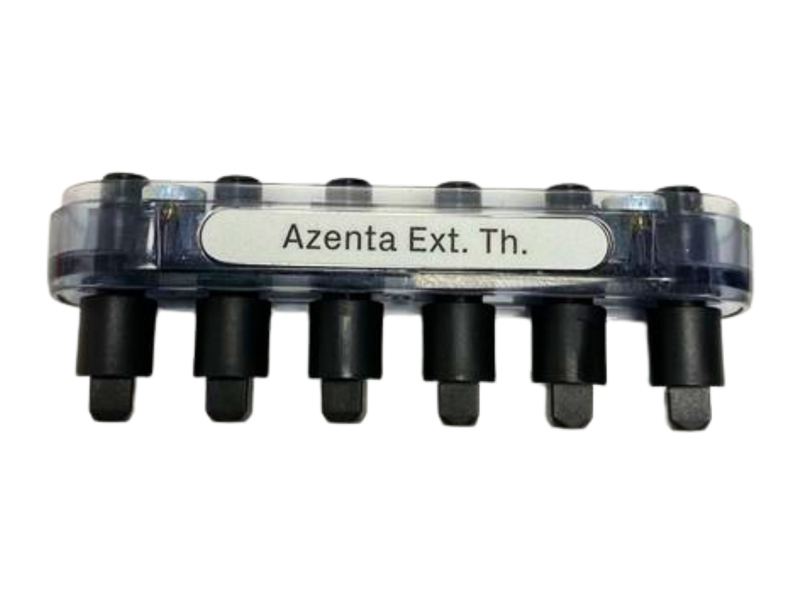

48-9015-01	Cartridge for use with Azenta external thread, screw capped tubes, in 48-SBS format

Support Plans

Tailored to suit your specific needs, our support plans help to minimize downtime, offering corrective services, remote diagnostics, and preventative maintenance to keep your instruments in top working order.

Instrument Support Plans

Resources

Brochures & Catalogs
