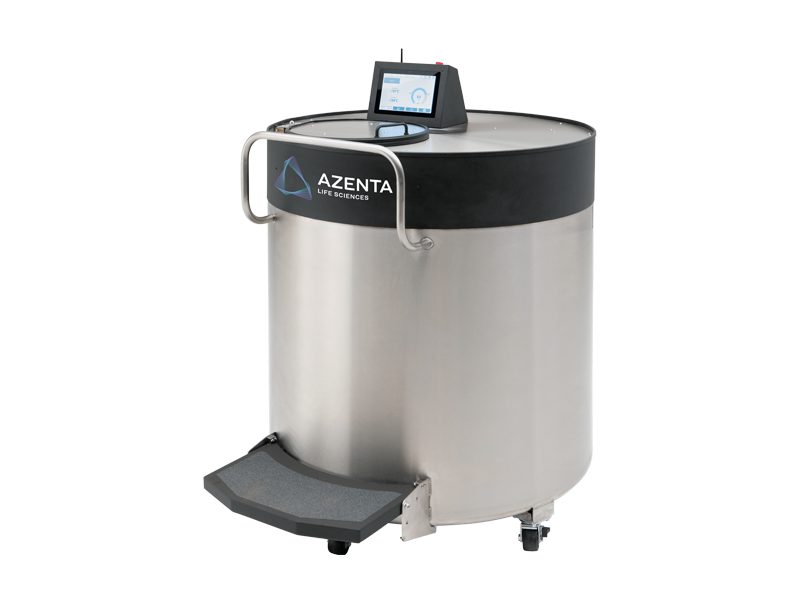

A440 High Efficiency Cryogenic Freezer

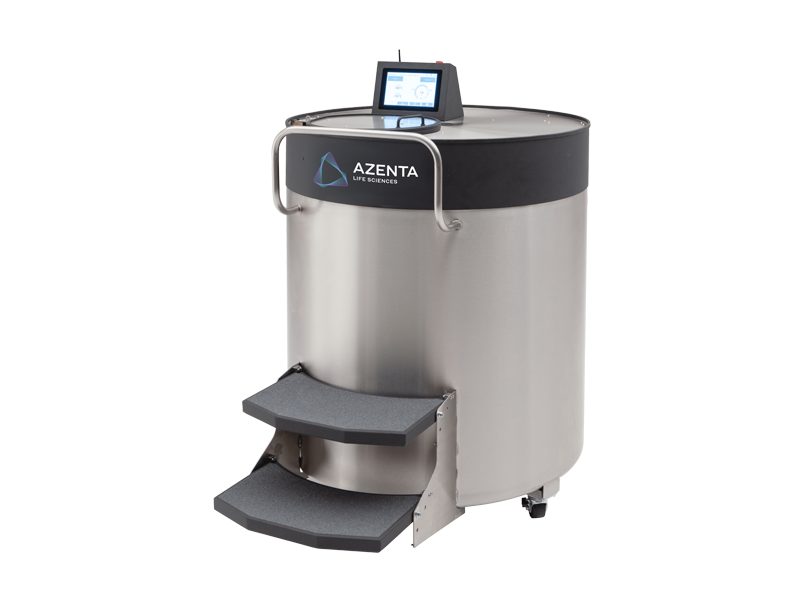

E528 High Efficiency Cryogenic Freezer, Extended Height

A440 & E528 High Efficiency Cryogenic Freezer

The A440 High Efficiency Cryogenic Freezer & E528 High Efficiency Cryogenic Freezer, Extended Height provide simple, secure -190°C LN2 vapor storage, with a sample capacity of up to 10-30% higher than leading brands on the market

Up to 52,800 2ml vial capacity
Up to 3,704 25ml cassettes
150l LN2 capacity (vapor storage)

Want to request a quote, or to contact an expert?

Place a Request

Overview

The A440 High Efficiency Cryogenic Freezer & E528 High Efficiency Cryogenic Freezer, Extended Height are ideally suitable for laboratory, repository and clinical use, fit for active, archive or quarantine collections. Offering the highest storage density of all freezers on the market (10% to 30% more than leading freezer brands), it comes with the lowest LN2 usage per sample.

Support Plans

Protect your productivity with High Efficiency Cryogenic Freezer Support Plans for direct access to expert technical support and maintenance.

HIGH EFFICIENCY CRYO STORAGE SUPPORT PLANS →

Key Features

Simple Controls & Connectivity
- Touchscreen controller with WiFi, LAN, text and email alerts automatically maintains the freezer conditions
- Critical data is recorded and can be pushed to the cloud, emailed or saved to a USB flash drive
- Built-in connection to an optional cloud-based monitoring portal enables remote monitoring of freezers and predictive maintenance
- Supports independent temperature and level monitoring for redundant peace of mind
Increased Capacity
- Highest storage density with 10-30% more samples than other leading freezer brands
- High capacity rack design to reduce innocent sample exposure and increase overall capacity
Improved Ergonomics
- Cryogenic LED and automatic fog clear enhance visibility and sample access
- Optimized designs minimize liftover height and balance capacity and usability with sufficient workspace to maintain the cold chain
Included Features
- Touchscreen with built-in WiFi / LAN
- Text & email alerts, cloud backup
- Redundant remote monitoring
- Cryo LED & auto fog clear for full visibility
- Hinged lid, folding step(s), handle, workspace
- Lid access for chain of custody
- Supports secondary temp & level monitoring
- Plug & play setup
- Battery backup and gas bypass
- Warranty: 3 years parts & craftsmanship | 7 years vacuum
- Safety | Regulatory: UL / CSA STD 61010-1 | LVD (2014/35/EU)

Specifications

	A440 Cryo Freezer	E528 Cryo Freezer, Extended Height
Vial capacity on slim vertical racks* (vials \| boxes \| racks)	5 boxes/rack: 44,000 \| 440 \| 88	6 boxes/rack: 52,800 \| 528 \| 88
Vial capacity on square racks* (vials \| boxes \| racks)	13 boxes/rack: 41,600 \| 416 \| 32	15 boxes/rack: 48,000 \| 480 \| 32
25ml cassette capacity (cassettes \| frames \| cassettes/frame)	3,241 \| 463 \| 7	3,704 \| 463 \| 8
50ml cassette capacity (cassettes \| frames \| cassettes/frame)	1,932 \| 276 \| 7	2,208 \| 276 \| 8
250ml cassette capacity (cassettes \| frames \| cassettes/frame)	848 \| 212 \| 4	1,060 \| 212 \| 5
500ml cassette capacity (cassettes \| frames \| cassettes/frame)	688 \| 172 \| 4	860 \| 172 \| 5
Outer diameter	45in (1,143mm)	45in (1,143mm)
Overall height	59in (1,499mm)	63in (1,600mm)
Usable height	30in (762mm)	34in (864mm)
Step height	10.5in (267mm)	10.5in (267mm) x 2
Liftover height	39.5in (1,003mm)	34in (864mm)
Neck opening	18.2in (462mm)	18.2in (462mm)
Empty weight	900lb (408kg)	975lb (442kg)
Working weight**	1,760lb (798kg)	1,960lb (889kg)
LN2 capacity (vapor storage)	150l	150l
Hold time	>15 days	>15 days

*For 2ml vials
**For 2ml vial inventory and default vapor storage settings

User Manual

High Efficiency Cryo Freezer Operator Manual

Remote Monitoring

With Azenta cryo freezers, you have the ability to remotely monitor the status of your freezers 24/7 in real time. You can log in to the Azenta cryo monitoring portal from anywhere (including via mobile) to see the dashboard, view performance metrics, or request support or service.
